Siemens 6XV18702B ie fc flexible cable gp 2x2 1 meter

Product Description

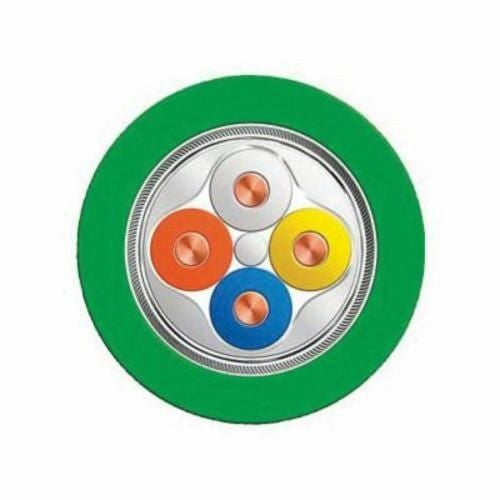

The SIEMENS 6XV18702B is an IE FC flexible cable, GP 2X2 (PROFINET Type B) TP installation cable with flexible cores. It is a 4-wire, shielded CAT 5 cable suitable for occasionally moved machine parts. This cable is oil-resistant and radiological resistant to UV radiation. It is also silicone-free.

• 100 Ohm at 1 to 100 MHz impedance
• Oil-resistant according to IEC 60811-404 (7 x 24 hr/90 deg C) to mineral oil, conditional resistance to grease and to water chemical resistance
• Shielded with overlapped aluminum clad foil, sheathed in a braided screen of tin plated copper wires

Product Highlights

The SIEMENS 6XV18702B cable is a shielded, flexible bus cable designed for industrial network applications, ensuring reliable data transmission in demanding environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6XV18702B
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Length: 1 meter
• Number of Conductors: 4
• Outside Diameter: 6.5 mm
• Conductor Size: 22 AWG
• Temperature Rating: -25 to 75 deg C
• Type: Shielded Flexible
• Voltage Rating: 80 VAC
• Insulation Material: Polyethylene
• Jacket Material: PVC
• Application: For occasionally moved machine parts
• Standard & Approvals: UL Listed, ETL Listed, cULus Listed, CE Certified
• Jacket Color: Green
• Shield Type: Foil, Braid
• Cable Type: Multi-Conductor
• Operating Temperature: -25 C ~ 75 C
• Conductor Insulation: Polyethylene (PE)
• Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
• Shield Material: Aluminum; Copper, Tinned
• Jacket (Insulation) Diameter: 0.256" (6.50mm)
