SIEMENS Siemens 6XV18303EH10 Trailing Cable: 20 AWG
SIEMENS Siemens 6XV18303EH10 Trailing Cable: 20 AWG

Siemens 6XV18303EH10 Trailing Cable: 20 AWG

SIEMENS
Brand: SIEMENS
SKU: 6XV18303EH10
Availability: Out Of Stock
$25.02
$25.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

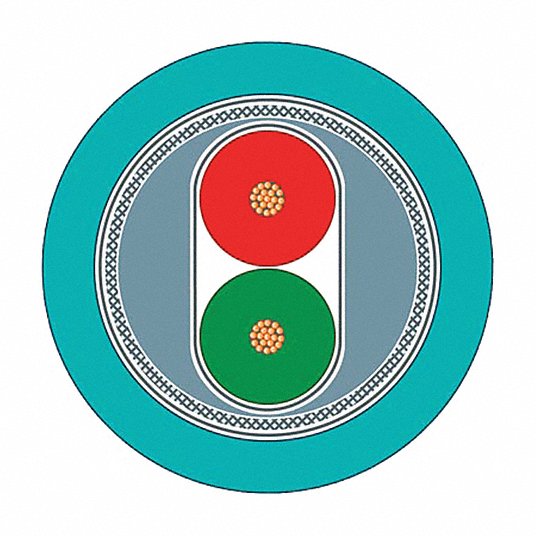

The Siemens 6XV18303EH10 trailing cable features unpaired shielded cables consisting of bundled solid, insulated wires encased in a protective external insulation layer. It has a braided or foil shield to protect against electromagnetic interference and maintain signal integrity. This cable is often used for broadcast, audio, control, and communication systems.

  • Shielded to prevent electrostatic or electromagnetic interference (EMI)
  • Stranded cable consists of multiple individual wires twisted together
  • Flame/Fire Resistant

Product Highlights

The Siemens 6XV18303EH10 cable ensures clear signal transmission and is suitable for various applications requiring shielded and stranded cables.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 6XV18303EH10
  • Country of Origin: Germany
Technical Specifications
Conductor Gauge
20 AWG
Application
Communications, I/O System, PROFIBUS Network
Product Type
Communication Cable
Insulation Material
PE
Jacket Material
PU
Outside Diameter
0.3 in
Solid/Stranded
Stranded
Shielding Material
Aluminum-Clad Foil
Shielded
Shielded
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantIEC 60332-1-2UL ListedETL ListedCE Certified
Resistance Properties
Flame/Fire Resistant
Bend Radius
60 mm
Maximum Capacitance
28.0 pf/m
Maximum Impedance
270 ohm
Maximum Operating Temperature
140 °F
Maximum Voltage Rating
80 V
Minimum Operating Temperature
-40 °F
Manufacturer Part Number
6XV18303EH10
Brand
SIEMENS
Approval
UL, ETL, CE
Color Code
Red/Green
Number of Conductors
2
Outer Diameter
8 Millimeter
Alternate Catalog Number
6XV1830-3EH10
ARRA Compliant
C
Buy American Compliant
C
Catalog Number
6XV18303EH10
EU RoHS Indicator
C
Gross Volume Per Pack
170.90
Gross Volume UOM
in
Gross Weight Per Pack
0.1700 lb
Gross Weight per Pack Metric
0.08
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8544499000
Height
1.5700 in
Height [Metric]
3.9878 cm
Length [Metric]
27.0002 cm
Returnable
Y
Temperature Rating
-40 to 60 °C
Type
Highly Flexible Shielded Unassembled
UNSPSC
26121604
UPC 11
66264322875
UPC 12
662643228755
Width
10.2400 in
Width [Metric]
26.0096 cm
Conductor Size
0.65, 2.56 sq-mm
Conductor Type
Braided Tin Plated Copper
Length
10.6300 in
Voltage Rating
80 VAC
Category
Cables, Wires
Multiple Conductor Cables
Multiple Conductor Cables
Jacket (Insulation) Diameter
0.315" (8.00mm)
Shield Type
Foil, Braid
Packaging
Box
Cable Type
Multi-Conductor
Operating Temperature
-40°C ~ 60°C
Conductor Insulation
Polyethylene (PE)
Jacket (Insulation) Material
Polyurethane (PU)
