Siemens 6XV18300ET10 PROFIBUS 2-Wire General Purpose Shielded Standard Unassembled Bus Cable 100 VAC

Product Description

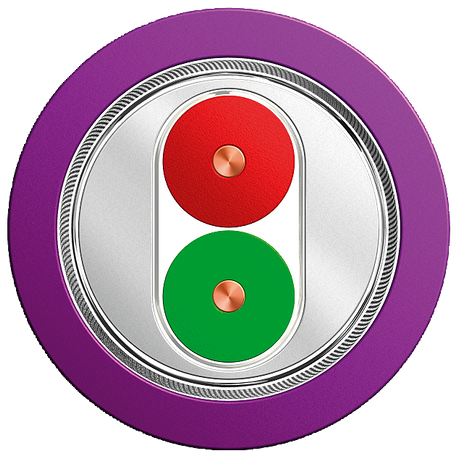

The Siemens 6XV18300ET10 is a 2-wire general purpose shielded standard unassembled bus cable. It operates at a voltage of 100 VAC and features two conductors with sizes of 0.64 and 2.55 square millimeters. This cable is designed for fast and reliable installation in various applications.

• Flexible application possibilities with special bus cables
• Immunity to interference through double shielded cables with a uniform grounding concept
• Fast connector assembly with FastConnect cables

Product Highlights

This bus cable is silicone-free, making it ideal for use in the automotive industry.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• GTIN: 00662643224122
• UPC: 662643224122
• UNSPSC: 26121604
• Number of Conductors: 2
• Conductor Type: Braided Tin Plated Copper
• Conductor Size: 0.64, 2.55 square mm
• Insulation Material: PE
• Jacket Material: PVC
• Length: 100 meters
• Voltage Rating: 100 VAC
• Outside Diameter: 8 mm
• Temperature Rating: -40 to 75 degrees Celsius
• Jacket Color: Violet
• Standard & Approvals: IEC 60332-3-24, UL Listed, ETL Listed, CE Certified
