Siemens 6XV18300EH10 Simatic Net Profibus Fc Cable

Product Description

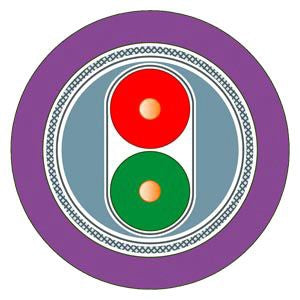

The SIEMENS 6XV18300EH10 is a SIMATIC NET Profibus Fast Connect (FC) cable assembly designed for industrial automation network installations. This cable is used to build Profibus DP fieldbus segments connecting programmable logic controllers, distributed I/O nodes, drives, and other automation devices. The Fast Connect design allows for tool-free or simplified termination, reducing installation time on the plant floor. Weighing 0.174 pounds and packaged in compact dimensions, it is suited for panel builders, systems integrators, and industrial electricians working with Siemens SIMATIC automation architectures.

This Profibus FC cable is used in industrial control and automation environments where reliable, high-speed serial communication between field devices is required. Typical applications include manufacturing lines, process control panels, and machine automation systems that rely on the Profibus DP protocol. It fits into new installations and retrofit projects where existing Profibus segments need extension or replacement. Industrial electricians and automation technicians are the primary installers in both discrete and process manufacturing settings.

Key Features

• Fast Connect design for simplified field termination on Profibus DP networks
• Compact and lightweight at 0.174 pounds for easy handling in tight panel spaces
• Sold individually as a single unit per pack
• Compatible with Siemens SIMATIC NET Profibus infrastructure
• Package dimensions of 1.378 inches x 1.378 inches x 2.756 inches for efficient storage and shipping

Compatibility

Designed as an OEM-style component for use within Siemens SIMATIC NET Profibus DP network installations and compatible Fast Connect cabling systems.

Installation Notes

Installation should be performed by a qualified industrial electrician or automation technician familiar with Profibus DP network standards. De-energize the control system and follow site lockout/tagout procedures before working on any fieldbus connections. Ensure proper bus termination is applied at both ends of the Profibus segment to prevent signal reflection. Follow IEC 61158 Profibus cabling guidelines and the equipment manufacturer documentation for segment length limits and connector torque requirements.

Technical Specifications

• Weight: 0.174 pounds
• Package Length: 1.378 inches
• Package Width: 1.378 inches
• Package Height: 2.756 inches
• Quantity per Pack: 1
• UPC: 66264322447

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6XV18300EH10
