Siemens 6XV18015DH30 M12 Connecting Cable 3.0 M 6XV18015DH30

Product Description

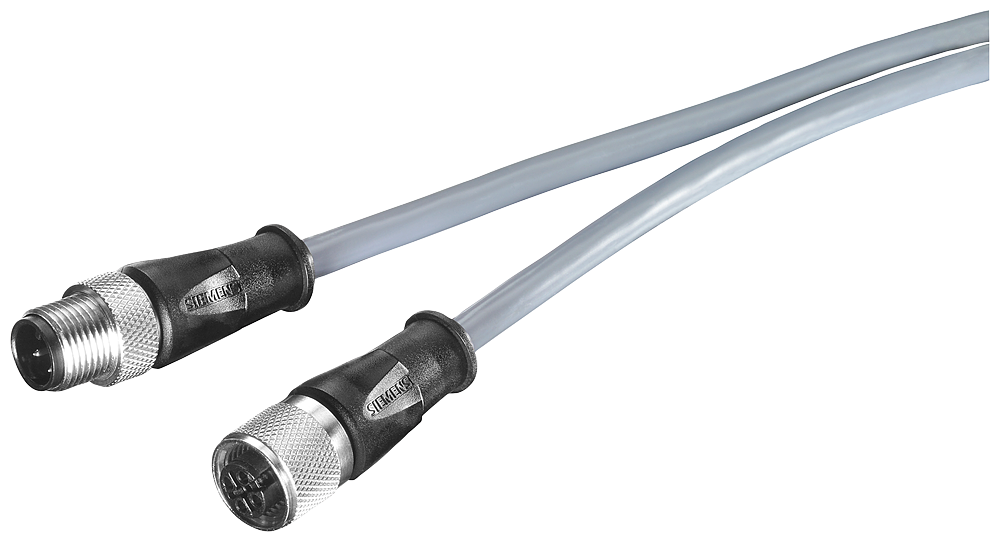

The SIEMENS 6XV18015DH30 is a power connecting cable M12-180/M12-180 for the power supply of the ET 200. This pre-assembled cable features an M12 plug and M12 socket, A-coded, 4-pole, and 3.0 m length. Designed for reliability, this 300 VAC cable features four conductors and a robust PVC jacket, making it ideal for a variety of applications.

• Flexible Pre-Assembled Plug-In Power Connecting Cable
• Voltage Rating: 300 VAC
• Operating Temperature Range: -25 to 80 degrees Celsius

Product Highlights

This cable ensures seamless connectivity and is perfect for various power connection needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6XV18015DH30
• Country of Origin: Germany

Technical Specifications

• Alternate Mfr Part Number: 6XV18015DH30
• Brand: SIEMENS
• Manufacturer Part Number: 6XV18015DH30
• Numeric ID: 2510412
• Length: 3 m
• UNSPSC: 26121629
• End Style: M12 Connector x M12 Socket
• Application: For ET200 power supply
• Jacket Color: Gray
• Conductor Size: 0.75 sq-mm
• Voltage Rating: 300 V
• Jacket Material: PVC
• Temperature Rating: -25 to 80
• Insulation Material: PP
• Number of Conductors: 4
• Type: Flexible Pre-Assembled
• Outside Diameter: 5.7 mm
• Category: Cable Assemblies
• Circular Cable Assemblies: Circular Cable Assemblies
• Packaging: Bulk
• Manufacturer: Siemens
• Part Status: Active
• Country of Origin: Germany
• Colour outer sheath: Grey
• Connection 1: Other
• Connection 2: Other
• Connector system system-oriented: false
• Degree of protection (IP): IP65
• Material outer sheath: Polyvinyl chloride (PVC)
• Nominal cross section conductor: 0.75 mm
• Nominal voltage: 300 V
• Outer diameter approx.: 5.7 mm
• Spiralized cable: false
• Temperature resistance: -25
• With cord switch: false
• Primary brand: Siemens
• Main function: Cable
• Functions: Pre-assembled power cable - 4 x 0.75mm2
• Design: Silicon-free
• Number of circuits: 4-wire
• Color: Gray
• Connection type: M12 male connector M12 female connector
• IP67: IP67
• Material: PVC sheath
• Ambient air temperature for operation: -25...+80
• Technical compatibility with: I/O modules ET 200eco PN
• Cable type: LI9YH-Y 4 x 0.75mm2
• Order code / Manufacturer SKU: 6XV18015DH30
• Manufacturer product status: Commercialized
• Equivalent to: 6XV18015DH30
• EAN code: 4019169853569
• UPC code: 040892552546
• Compliant with standard(s): UL758 (CSA FT 1)
• Bending radius: 57mm
