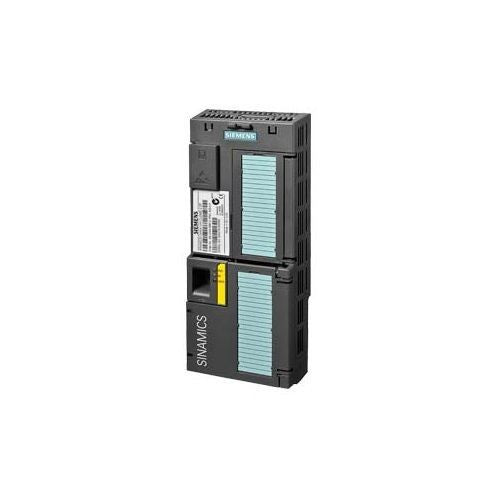

Siemens 6SL32460BA221FA0 Drive, Sinamics, G120, Control Unit, Cu250S-2 Pn

Product Description

The Siemens 6SL32460BA221FA0 is a Sinamics G120 series control unit. This modular inverter offers integrated safety, energy savings, and network connectivity. It may be configured in a variety of designs to meet many industrial drive applications. Built-in math and logic eliminate the need for a separate PLC.

• Safety Integrated - for safety-relevant machines and systems
• Capable of power regenerative feedback - into the line supply for energy saving
• Advanced cooling concept

Product Highlights

This Sinamics G120 series control unit offers integrated safety, energy savings, and network connectivity.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32460BA221FA0

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 6SL32460BA221FA0
• Output Frequency: 0 to 550 Hz
• ProductVideoURL: https://www.youtube.com/embed/_sMz1SCe-Vk
• Series: SINAMICS G120 Series
• Special Features: Control Panel
• Part Number: 6SL3246-0BA22-1FA0
• Manufacturer: Siemens
• Type: Control Unit, PROFINET
• Model #: 6SL32460BA221FA0
• The Power Module: DC 24 V
• External power supply: DC 20 ... 29 V
• Max. power consumption: 2.00 A
• Power loss: 12.00 W
• Number: 2 (Non-isolated output)
• Switching level: 0 1: 11 V
• Switching level: 1 0: 5 V
• Number as relay changeover contact: 2
• Output (resistive load): DC 30 V, 1 A
• Category: Motors, Actuators, Solenoids and Drivers
• Variable Frequency Drives (VFDs, VSDs): Variable Frequency Drives (VFDs, VSDs)
• Voltage - Load: 24V
• Current - Output: 2A
• Voltage - Supply: 20 ~ 29VDC
• Operating Temperature: -10 C ~ 50 C
• Part Status: Active
• Ingress Protection: IP20
• Mounting Type: Chassis Mount
• Approval Agency: CE
• Number of Motors: 1
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Affected
• Voltage Rating: 24 VDC
• Application: For use with Sinamics G120 standard inverters
• Standard & Approvals: CE Certified, cUL/UL Listed
• Display Type: Digital
• EANUCC13: 4042948664117
• Enclosure Type: IP20
• Amperage Rating: 2 A
• Horsepower: 0.5 to 400 hp
• Used On: SINAMICS G120 Standard Inverter System
• Features: RoHS Compliant
• Conductor cross-section: 0.05 ... 1.50 mm (30 ... 16 AWG)
