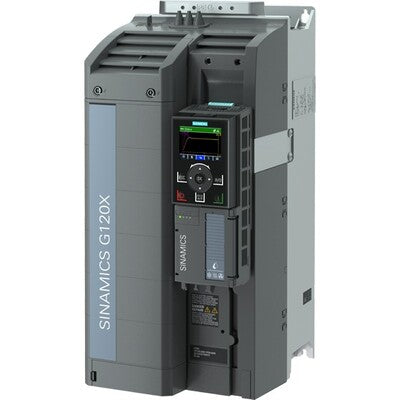

Siemens 6SL32202YE320UF0 Drive, Sinamics, G120X, 30HP

Product Description

The Siemens 6SL32202YE320UF0 is a SINAMICS G120X frequency converter optimized for infrastructure and industrial water/wastewater applications, as well as pumps and fans in building automation. It supports a 380 to 480 VAC input and delivers a 400 VAC output. It has PROFINET/Ethernet IP communication capability.

• Fieldbus integrated - Profinet PN, Ethernet IP
• Ideally suited to pump, fan and compressor applications
• Energy efficiency

Product Highlights

The Siemens SINAMICS G120X is a reliable and versatile frequency converter suitable for a wide range of industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32202YE320UF0
• Country of Origin: Great Britain

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32202YE320UF0
• Protocol Type: Profinet
• Series: SINAMICS G120X Series
• Application: For HVAC/water/wastewater applications
• Display Type: Basic Operator Panel
• Enclosure Type: IP20/Open
• Voltage Rating: 380 to 480 VAC Input, 400 VAC Output
• Type: 3-Phase
• Amperage Rating: 44 A Input, 45 A Output
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: SINAMICS G120X series
• Functions: Infrastructure Variable Speed/Frequency Drive (VSD/VFD) / Inverter / Converter
• Specific firmware functions such as deragging or pipe fill mode: Automatic restart Flying restart Flux reduction Cascade connection Hibernation mode Real-time clock Freely programmable logical function blocks for frame sizes
• Design: BOP-2 basic panel (numeric 2-line display) environmental class 3C2
• Supply voltage (AC): 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Rated current: 40A (480Vac) 42A (400Vac) 45A output (400Vac) 38A (400Vac) (base-load) 34A (480Vac) (base-load)
• Rated active power (kW): 22kW (400Vac)
• Rated power (HP): 30HP (480Vac)
• Connection type: 2 x RJ45 connector
• Communication protocol: PROFINET Ethernet/IP
• Digital inputs: 6 x digital inputs (Optically isolated; NPN/PNP) 1 x digital input (Fail-safe 60V) (STO)
• Digital outputs: 2 x digital outputs (changeover contacts; 250Vac/2A inductive load; 30Vdc/5A ohmic load)
• Analog inputs: 2 x analog inputs (-10...+10V; 0-4mA; 4-20mA using DIP swt.) 1 x analog input (Connectable sens. PTC; Pt1000; KTY and bimetal)
• Analog outputs: 1 x analog output (0-10V; 0-4mA; 4-20mA)
• Degree of protection: IP20
• Application type: Ideally suited to pump applications (centrifugal pumps; oscillating and rotating pumps); fan applications (axial and radial fans) and compressor applications (cooling compressors; air and gas compressors). They are deployed in the water/waste water industries; in industrial environments; and in building automation;Circulating pumps for heating and cooling systems;Pumps for pressure boosting stations;Level control;Fans in cooling towers;Fans for air intake and discharge;Fans for tunnels and multi-story car parks;Fans for stairwells;Compressors for cooling units
• Manufacturer product status: Commercialized
• Equivalent to: 6SL32202YE320UF0
• EAN code: 4042948684474
• UPC code: 804766796524
• Compliant with standard(s): IEC 60721-3-3 2002 (Class 3C2) IEC 61508 SIL 3 EN ISO 13489-1
• Location of origin: Great Britain
• Storage type: SD card
• Benefits: Energy efficiency Application-specific commissioning and operation using operator panel Flexible deployment of integrated functions Flexible deployment across a wide range of applications Extended warranty
• Voltage - Load: 400 ~ 480V
• Current - Output: 61A
• Wattage - Load: 22000 W
• Voltage - Supply: 380 ~ 480VAC
• Part Status: Active
• Operating Temperature: -20 C ~ 45 C
• Mounting Type: Chassis Mount
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8537.10.9170
• REACH Status: REACH Unaffected
