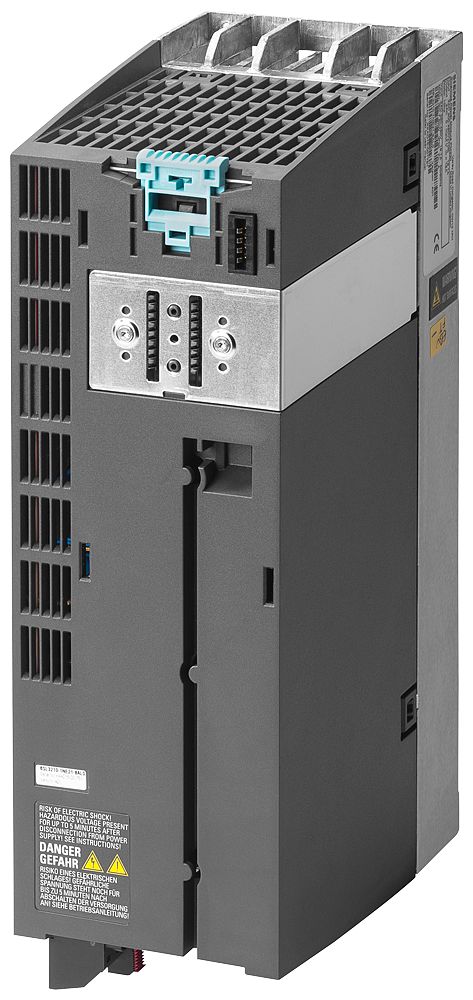

Siemens 6SL32101PB214UL0 Drive, Sinamics, G120, Power Module Pm240-2, 3Hp, Fsc, Ip20

Product Description

The Siemens 6SL32101PB214UL0 is a SINAMICS Family G120 Series modular inverter. This closed-loop vector drive offers integrated safety, energy savings, and network connectivity. It is configurable in a variety of designs for many industrial drive applications. The SINAMICS G120 has integrated safety functions, including Safe Torque Off, Safe Stop 1, Safety Limited Speed and Safe Brake Control.

• Safety Integrated - for safety-relevant machines and systems
• Capable of power regenerative feedback - into the line supply for energy saving
• Advanced cooling concept

Product Highlights

The modular design offers flexibility and cost-savings. Built-in portals for PROFIBUS and PROFINET communications networks ensure exceptional drive performance that may be integrated to the field level.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101PB214UL0
• Country of Origin: GB

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101PB214UL0
• Output Frequency: 0 to 550 Hz
• Phase: 1 Phase
• Series: SINAMICS G120 Series
• UPC Code: 887621830984
• Input Current: 35.9 A/20.7 A
• Approval: UL, CUL, CE, C-Tick (RCM), SEMI F47, KCC
• Alternate Catalog Number: 6SL3210-1PB21-4UL0
• Amperage Rating: 35.9/17.7 A Input, 13.6 A Output
• Catalog Number: 6SL32101PB214UL0
• Country of Origin: GB
• Input Voltage: 200 to 240 VAC
• Interface: PM-IF
• Manufacturer: Siemens
• Output Current: 13.6 A
• Output Voltage: 230 VAC
• Power Dissipation: 0.14 kW
• Powering Capacity: 3 kW
• Specifications: IP20/Open
• Standards: UL ListedcUL ListedCE CertifiedC-Tick (RCM)SEMI F47
• Temperature Rating: -10 to 50 deg C
• Type: Air Cooled Blocksize Format Frame FSA Standard Variant
• UNSPSC: 39121007
• Voltage Rating: 200 to 240 VAC Input, 230 VAC Output
• Module Type: Power Module
• Use w/​Drive Series: SINAMICS G120
• Function: Power Supply For Standard Inverters
