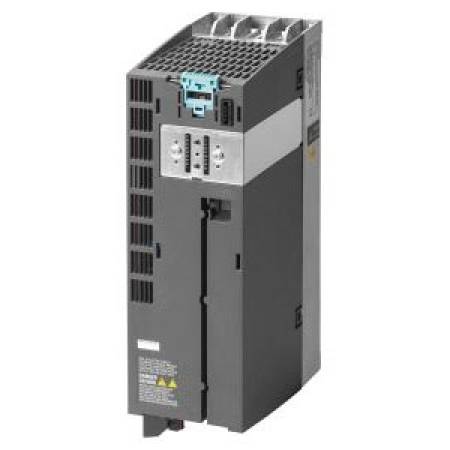

Siemens 6SL32101PB130AL0 Sinamics PM240-2 Power Module 0.37kW – 0.55kW

Product Description

The Siemens SINAMICS G120 6SL3210-1PB13-0AL0 is a power module designed for controlling and driving motors in various industrial applications. As a component of the SINAMICS G120 modular drive system, it offers precise motor control and energy efficiency. It operates on 200–240 V AC with a frequency range of 47–63 Hz.

• SINAMICS G120 component
• Modular drive system
• Precise motor control
• Energy efficiency

Product Highlights

The Siemens SINAMICS G120 power module is designed for efficient motor control in industrial settings. It supports high and low overload applications and is ideal for control cabinet installations.

Product Information

Standard Information

• Brand: SIEMENS

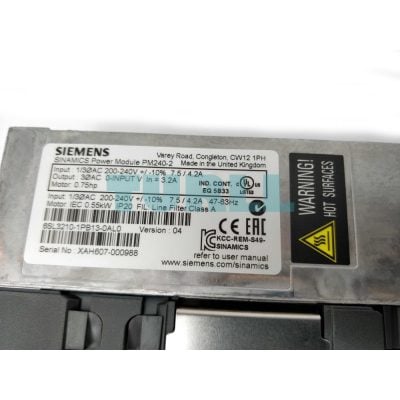

• Manufacturer Part Number: 6SL32101PB130AL0
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 6SL3210-1PB13-0AL0
• Power Output (LO): 0.55kW (110% overload for 57s)
• Power Output (HO): 0.37kW (200% overload for 3s)
• Input Voltage: 200 to 240 VAC
• Protection Rating: IP20 (Requires installation in a control cabinet)
• Output Voltage: 230 VAC
• Amperage Rating: 7.5/4.2 A Input, 3.2 A Output
• Connection Type: Air Cooled Blocksize Format Frame FSA Standard Variant
• Interface: PM-IF
• Min. Temperature Rating: -5 deg C (23 deg F)
• Max. Temperature Rating: 50 deg C (122 deg F)
• Module Type: Air Cooled Blocksize Format Frame FSA Standard Variant
• Overall Depth: 165 mm
• Overall Height: 196 mm
• Overall Width: 73 mm
• Series: SINAMICS PM240-2
• Manufacturer: SIEMENS
• Part Number: 6SL32101PB130AL0
