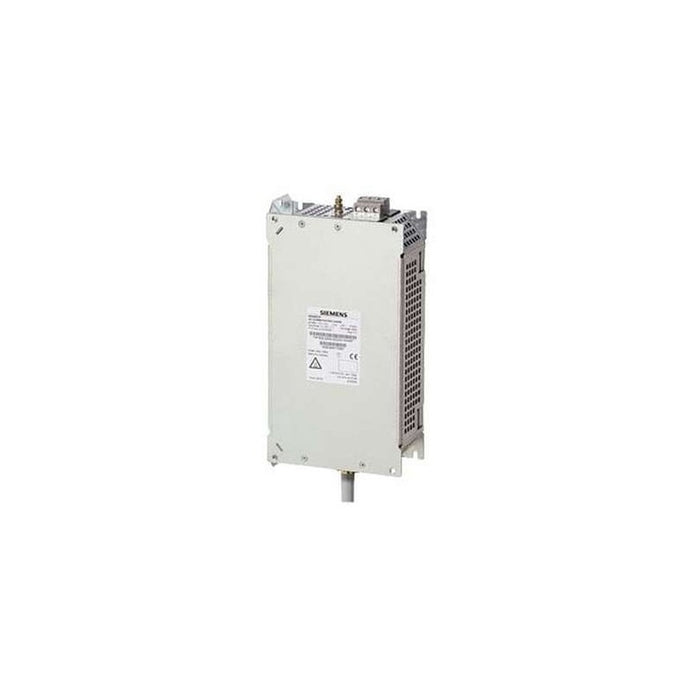

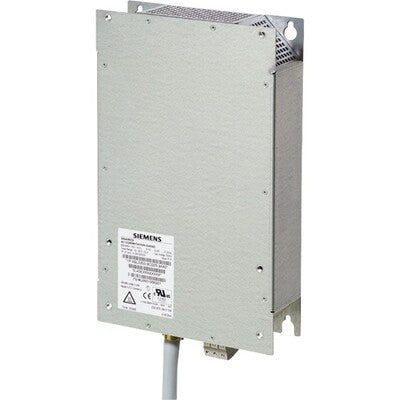

Siemens 6SL32030CJ245AA0 Sinamics Line Reactor 380-480V AC

Product Description

The SIEMENS 6SL32030CJ245AA0 SINAMICS line reactor is designed for Power Module FSD 18.5 and 22 kW. It smooths the current drawn by the converter, reducing harmonic content in the line current. This reduces power components in the rectifier, thermally offloads DC-link capacitors, and minimizes line harmonic distortions, increasing the converter's lifespan.

• Reduces harmonic content in line current
• Thermally offloads DC-link capacitors
• Increases the life of the converter

Product Highlights

The SINAMICS line reactor is for the PM 240 Power Module of the SINAMICS G120 modular frequency converter.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32030CJ245AA0
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32030CJ245AA0
• Type: Drive Line Reactor
• Voltage Range: 380-480V AC
• Rating/480V: 33A
• Enclosure: IP20
• Part #: 6SL3203-0CJ24-5AA0
• Category: Power Converter
• Manufacturer: Siemens
• Reference: 6SL32030CJ245AA0
• Item Code: 6SL32030CJ245AA0
• Condition: New
• Accessory Type: AC Line Reactor
• Specifications: 480V, 47A
• Part Status: Active
• Packaging: Box
• Primary brand: Siemens
• Main function: Choke
• Functions: Line reactor / choke
• Supply voltage (AC): 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase (3P / 3AC)
• Rated current: 47A
• Connection type: Screw connection (line / load connection)
• Degree of protection: IP20
• Technical compatibility with: 6SL3210-5BE31-8.V0
• Power dissipation/losses (50Hz): 90 W
• Power dissipation/losses (60Hz): 115 W
• Order code / Manufacturer SKU: 6SL32030CJ245AA0
• Manufacturer product status: Commercialized
• Product: 6SL32030CJ245AA0
• Article Number (Market Facing Number): 6SL32030CJ245AA0
• Product Description: SINAMICS reactor for Power Module FSD 18.5 and 22 kW Type rating based on I_N base mounting possible
• Product family: Ordering Data Overview
• Product Lifecycle (PLM): PM300:Active Product
• Product Group: 9791
• Group Code: R220
