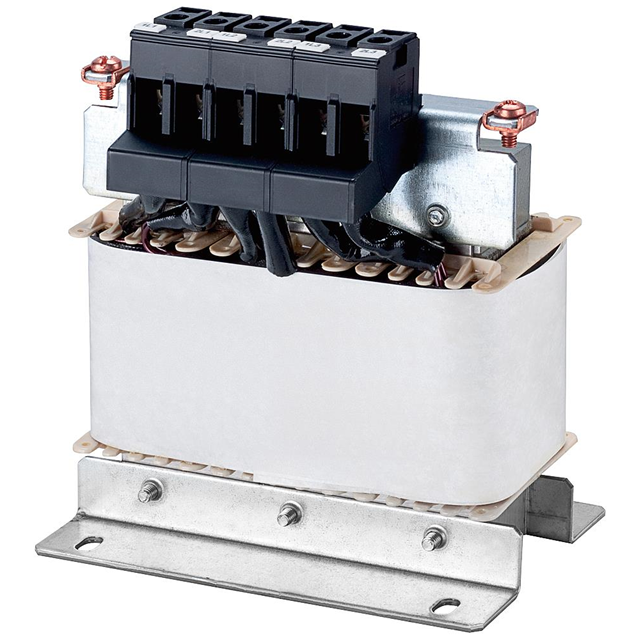

Siemens 6SL32030CE132AA0 Line Reactor 4 A (FSA) 6SL3203-0CE13-2AA0

Product Description

The Siemens 6SL32030CE132AA0 is a standalone SINAMICS line reactor (FSA) rated for 380-480 V AC three-phase systems and a line current of 4.0 A. It operates at 47-63 Hz and is intended as an input/reactive component for SINAMICS drives to reduce harmonic content and lessen stress on rectifier components and DC-link capacitors.

• Rated input voltage: 380-480 V AC (three-phase); frequency: 47-63 Hz; rated line current: 4.0 A.
• Standalone AC line/input reactor for SINAMICS drives (including use with V20 and PM240-2/ G120 converters) to reduce line harmonics and thermal stress on DC-link capacitors.
• Enclosure rating IP20, frame size FSA; dimensions approx. 125 x 120 x 71 mm; net weight ~1.1 kg.

Product Highlights

Standalone 3-phase line reactor for SINAMICS drives, 380-480 V AC, 4.0 A, 47-63 Hz, IP20, model FSA.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32030CE132AA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Manufacturer Part Number: 6SL32030CE132AA0
• Alternative Part Number: 6SL3203-0CE13-2AA0
• Product designation: Line Reactor FSA 3AC 380-480V-4A
• Product type: AC line reactor / Input reactor
• Series: SINAMICS
• Sub brand: SINAMICS V20 / G120
• Configuration: Standalone
• Input Voltage: 380-480 V AC (three-phase)
• Max Rated Operating Voltage: 480 V
• Min Rated Operating Voltage: 380 V
• Frequency: 47-63 Hz
• Phases: 3-phase
• Rated Current: 4.0 A
• Usage / For Use With: SINAMICS drives (including V20, PM240-2/ G120 converters)
• Enclosure Rating: IP20
• Dimensions (mm) - Width x Height x Depth: 125 x 120 x 71 mm
• Depth (mm): 71
• Net Weight: 1.1 kg
• Country of Origin: Germany
• Compliance: RoHS compliant
• GTIN: 4042948660225
• UPC: 040892949087
• ECLASS: 27-42-01-06
• Customs Tariff Number: 85045000
• Accessory Type: AC line reactor
• Frame Size: FSA
