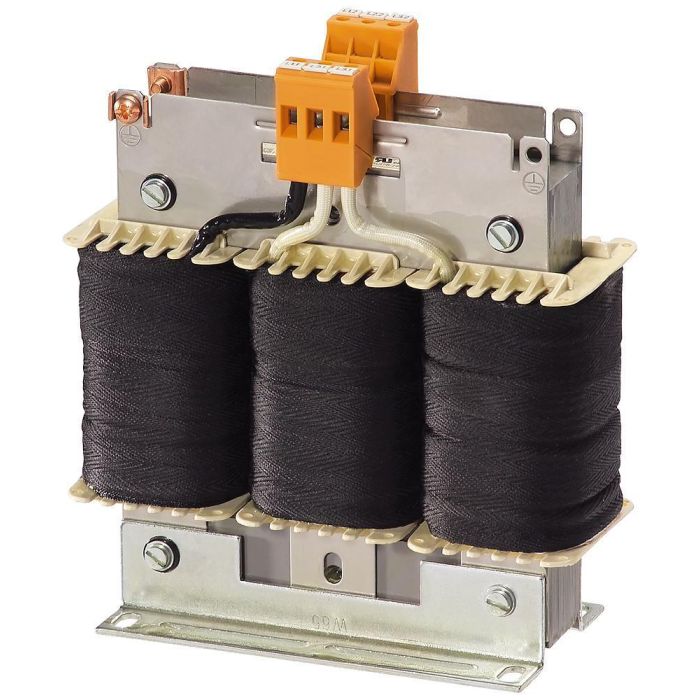

Siemens 6SL30000CE216AA0 Line Reactor 16 kW

Product Description

The SIEMENS 6SL30000CE216AA0 line reactor operates at 380 to 480 VAC at 50/60 Hz 3-Phase, with a current rating of 35 A and a power rating of 16 kW. Featuring an IP20 enclosure, this reactor is designed for use with a smart line module. It is commonly used as an input drive line reactor and is RoHS compliant.

• RoHS Compliant
• IP20 Enclosure
• Rated 16 kW

Product Highlights

The SIEMENS 6SL30000CE216AA0 line reactor is for smart line modules.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL30000CE216AA0
• Country of Origin: Czech Republic

Technical Specifications

• UNSPSC: 39121015
• Used On: Smart Line Module
• Power Rating: 16 Kilowatt
• Voltage Rating: 380 to 480 VoltACat 50/60 Hertz 3-Phase
• Enclosure: IP20
• Type: Drive Line Reactor
• Application: Input
• Voltage Range: 380-480V AC
• Rating/480V: 35A
• Main function: Choke
• Functions: Line reactor / choke
• Supply voltage (AC): 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase (3P / 3AC)
• Rated current: 35A
• Rated active power (kW): 16kW
• Rated power (HP): 18HP
• Connection type: Screw connection (line / load connection)
• M5 screw stud (PE connection): M5 screw stud (PE connection)
• Degree of protection: IP20
• Power dissipation/losses: 0.11kW / 110 W
• Amperage Rating: 35
• Enclosure Type: IP20
• Phase: 3
