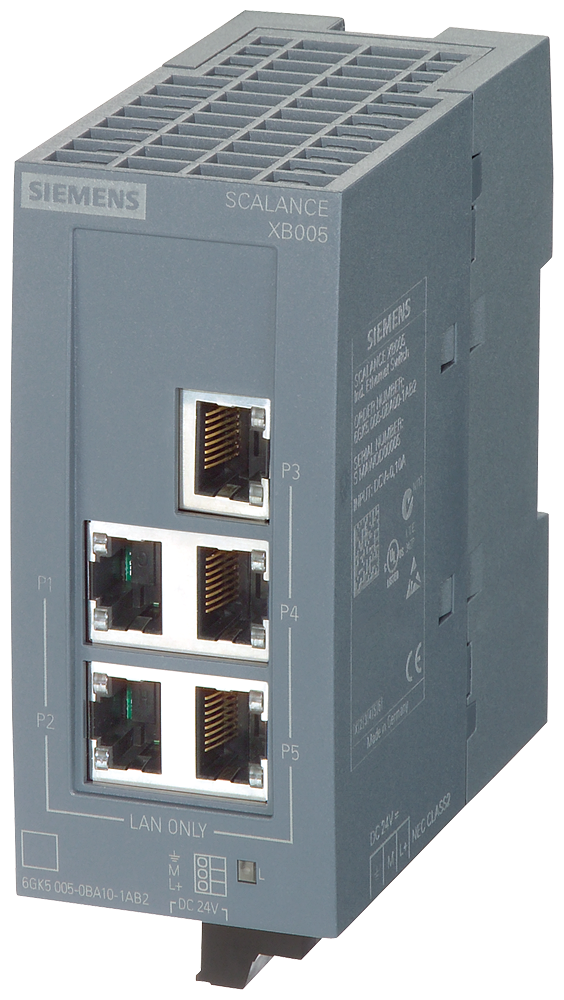

Siemens 6GK50050BA001AB2 Ethernet Switch 24 VAC/VDC 0.07 Amp 5-Port RJ45

Product Description

The SIEMENS 6GK50050BA001AB2 is an unmanaged Industrial Ethernet Switch for 10/100 Mbit/s, designed for setting up small star and line topologies. It features LED diagnostics, IP20 protection, and a 24 V AC/DC power supply. Equipped with 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets, it facilitates efficient network connections in industrial environments.

• Unmanaged Industrial Ethernet Switch
• For setting up small star and line topologies
• LED diagnostics
• 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets

Product Highlights

The SIEMENS 6GK50050BA001AB2 offers a cost-effective solution for establishing small, electrical/optical star or line topologies with switching functionality.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6GK50050BA001AB2
• Country of Origin: Germany

Technical Specifications

• Ports: 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets
• Power Supply: 24 V AC/DC
• Ampere: 0.07 Amp
• Type: Unmanaged Industrial Ethernet Switch
• Speed: 10/100 Mbit/s
• IP Rating: IP20
• Manufacturer Part Number: 6GK50050BA001AB2
• Manufacturer: SIEMENS
• Mounting Type: DIN Rail/Panel Mount
• Operating Temperature: -10 to 60 00b0C
• Number of Ports: 5
• Series: Scalence XB-000 Series
• Supply Voltage: 24 VDc
• Supply Current: 0.07 A
• Special Features: Auto Crossing, Auto Speed
• Switch Type: Unmanaged
• Type Port: (5) x RJ45 Twisted Pair
• Transfer Rate: 10/100 Mb/s
• Power Loss: 1.68 W
• Protocol Type: 10/100 Mbit/s
• Protection Class: IP20
• For Use With: Industrial Ethernet Switches
• Copper Type: 10/100
• Connector Type: RJ45
• Voltage - Input: 19.2V ~ 28.8V
• Part Status: Active
• Ingress Protection: IP20
• Configuration: Fixed
• Base Product Number: 6GK50050
• Copper Ports: 5
• Current: 0.07 Amp
• Enclosure Rating: 4X, IP20
• Enclosure Type: NEMA 4X, IP20
• Max Current: 0.07 A
• Max Operating Temperature: 60 degrees C
• Min Operating Temperature: -10 degrees C
• Standard: EN 61000-6-2,EN 61000-6-4
• Article Number (Market Facing Number): 6GK5005-0BA00-1AB2
• Product family: SCALANCE XB-000 unmanaged
