Siemens 6GK19011BB202AA0 Industrial Ethernet Fast Connect 90 Degree RJ45 Plug, 6GK Series

Product Description

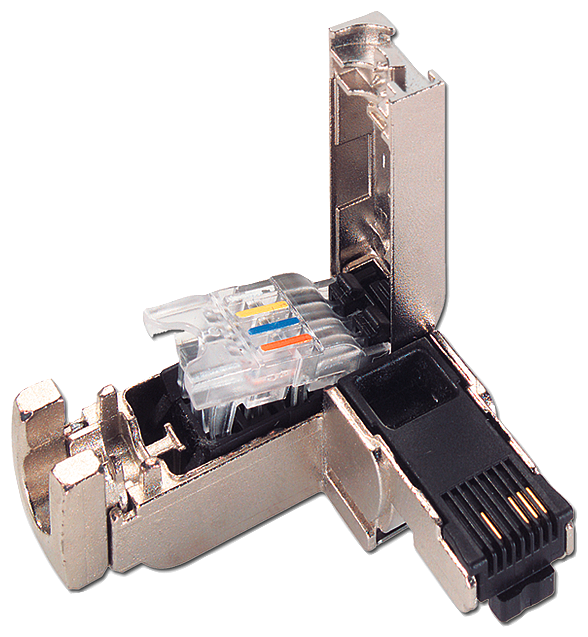

The Siemens 6GK19011BB202AA0 Industrial Ethernet Fast Connect RJ45 Plug is designed for industrial environments and office equipment. These RJ45 plugs allow for quick installation of Industrial Ethernet FastConnect installation cables. The FastConnect Stripping Tool prepares the cable end, enabling simple fitting of the cable connector. The plug-in connectors support point-to-point links up to 100 Mbit/s.

• RJ45 Plug-in Connector 90 Degree with rugged metal housing
• Excellent EMC Shielding and Deflection
• Time-saving, error-free installation thanks to color coding

Product Highlights

The Siemens RJ45 plug facilitates fast, reliable connections in industrial settings, featuring a rugged design and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6GK19011BB202AA0
• Country of Origin: Poland

Technical Specifications

• Manufacturer Part Number: 6GK19011BB202AA0
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: 6GK Series
• Operating Temperature: -40 to 85 degrees C
• Transfer Rate: 10/100 Mbit/s
• UPC Code: 662643137484
• Primary Type: RJ45
• Angle: 90 Degree(s)
• Connector Type: IE FC RJ45 Plug 90
• Material: Rugged Metal
• Depth: 42 Millimeter
• Width: 13.7 Millimeter
• Height: 16 Millimeter
• Applications: For Industrial use and for Fast Assembly with the FastConnect System
• Cable Size: 6.5 mm
• Cable Type: Category 5e
• Brand: Siemens
• GTiN: 00662643137484
• Product UPC: 66264313748
• Used With: IE FC TP 2x2 Cables
• Type: Plug-In Connector, Fast Connect
• Excellent EMC Shielding and Deflection: True
• Time-saving, error-free installation thanks to color coding: True
