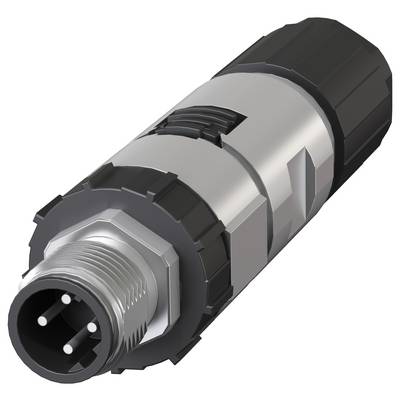

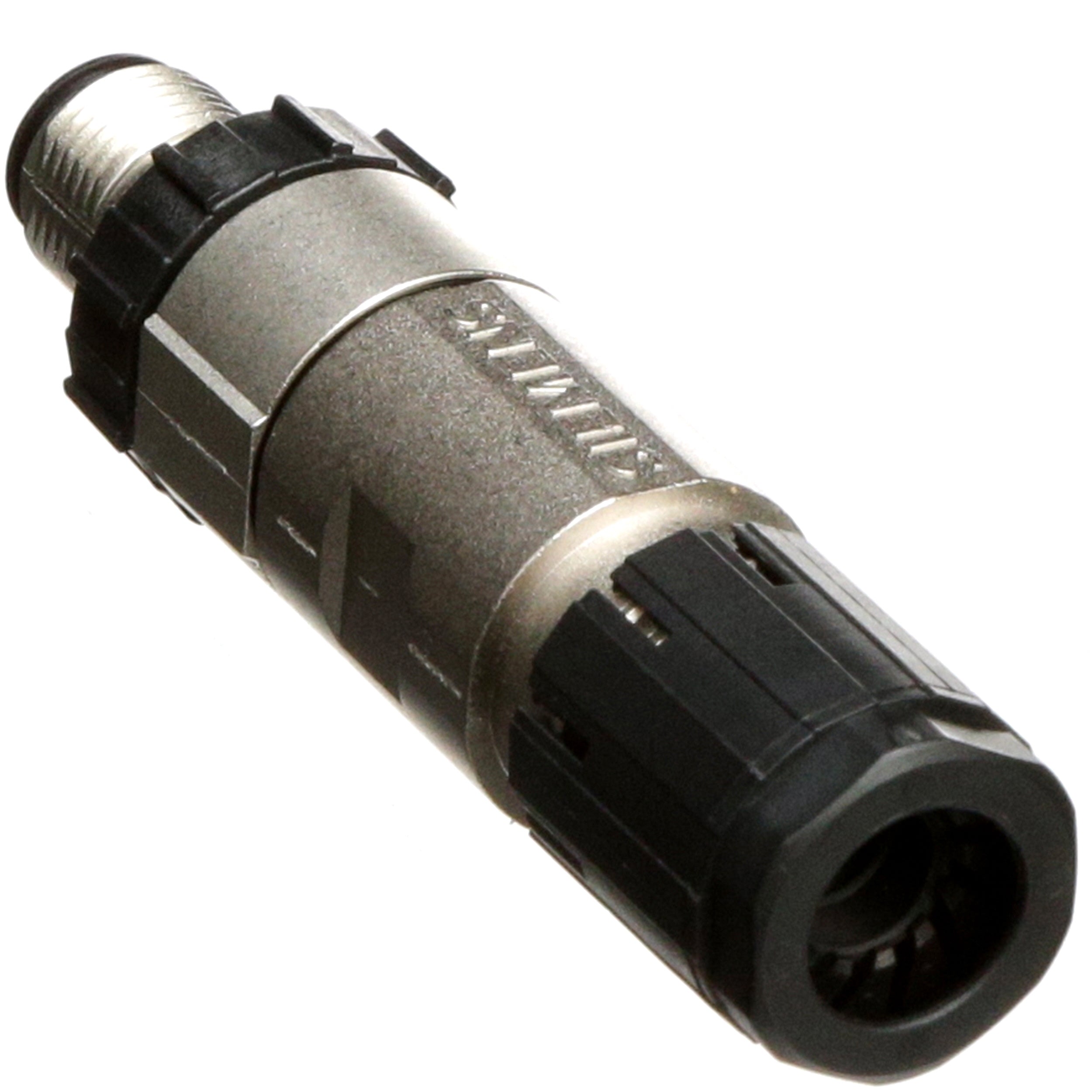

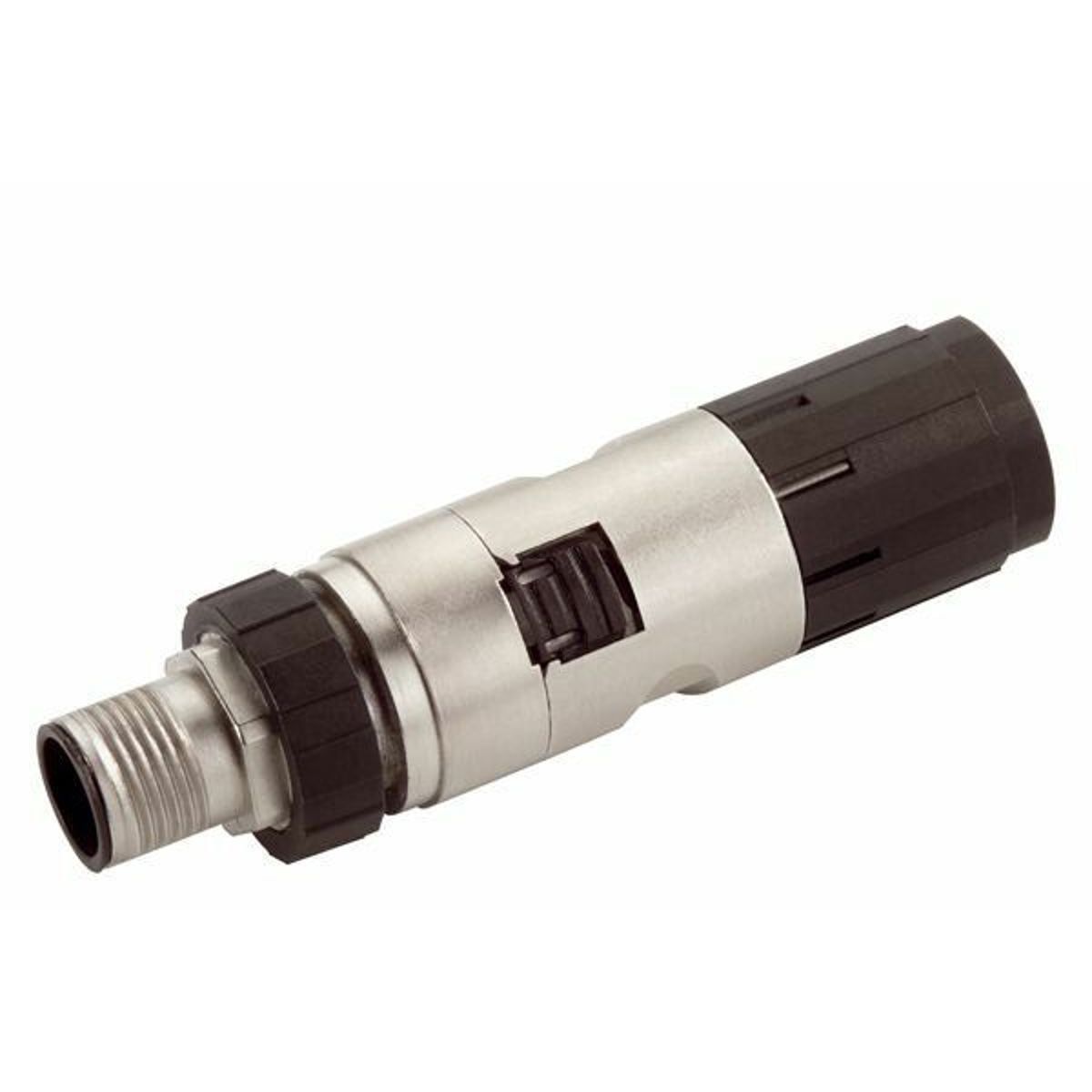

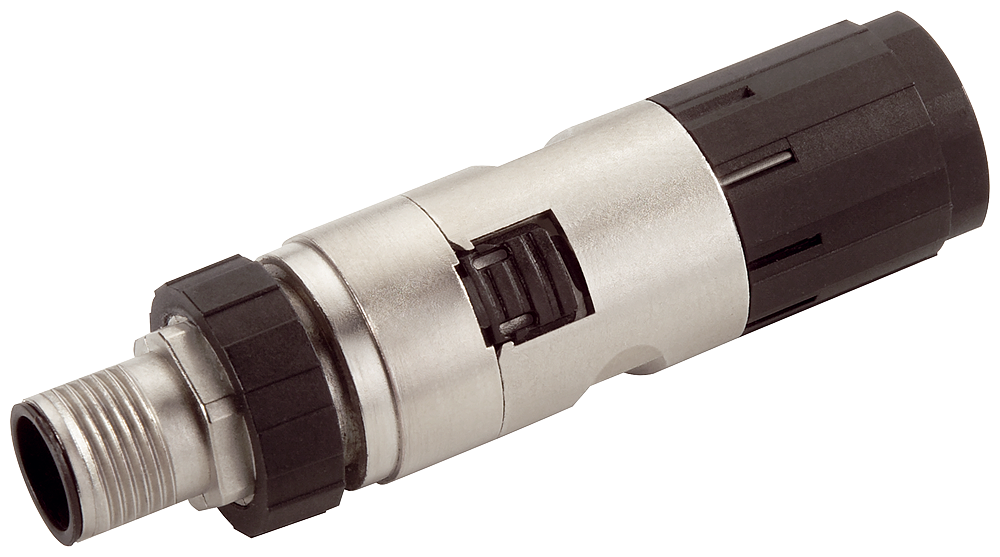

Siemens 6GK19010DB206AA0 IE FC M12 plug pro connector (1 pc)

Product Description

Siemens 6GK19010DB206AA0 is an industrial IE FC M12 plug connector for D-coded Ethernet and Profinet field cabling. The metal-bodied, silicon-free plug uses an FC connecting method with an axial (straight) cable outlet and FastConnect installation for quick field termination. It is a 4-pole, 4-wire D-coded connector rated for 10/100 Mbps (Cat 5) with M12 thread, supplied as one piece and intended for use with Scalance X208 Pro and ET200 Pro.

• D-coded M12 4-pole, 4-wire industrial Ethernet plug (FC) with axial cable outlet; supports 10/100 Mbps and Cat 5 cabling (22 AWG).
• Rugged metal housing and insert, silicon-free design, FastConnect installation; M12 thread, field-installable.
• IP65/IP67 protection with screw-on seal; operating temperature range -40 C to +85 C; supplied as 1 piece.

Product Highlights

Field-installable industrial M12 D-coded Ethernet plug with rugged metal housing, FC connection, axial outlet; RoHS compliant; made in Poland.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6GK19010DB206AA0
• Country of Origin: Poland

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6GK19010DB206AA0
• Product Type: Industrial Ethernet M12 plug (Pro)
• Connector Type: M12 plug
• Coding: D-coded
• Poles / Contacts: 4-pole, 4-wire
• Connecting Method: FC
• Cable Outlet: Axial (straight)
• Installation Type: FastConnect (field-installable)
• Cable Size: 22 AWG
• Cable Type: Industrial Ethernet FC TP (twisted pair)
• Category Type: Cat 5
• Data Rate: 10/100 Mbps
• Housing / Insert Material: Rugged metal
• Silicon Free: Yes
• Thread Size: M12
• IP Rating: IP65 / IP67
• Seal Type: Screw-on
• Operating Temperature: -40 C to +85 C
• Connection Angle: 180 degrees (axial/straight)
• Dimensions (H x L x W): 1.14 in x 3.46 in x 1.14 in
• Weight: 0.088 lb (0.04 kg)
• Country of Origin: Poland
• Standards / Certifications: UL Listed, cULus Listed, RoHS compliant
• Package Quantity: 1 piece
