Siemens 6FX80022CA311AC0 Motion-Connect 800Plus Signal Cable 2 m replacement 6FX80022CA311AC0

Product Description

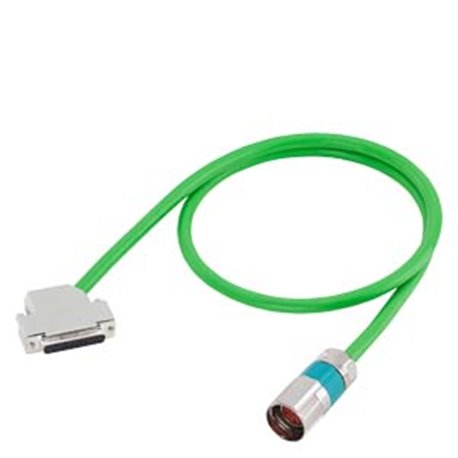

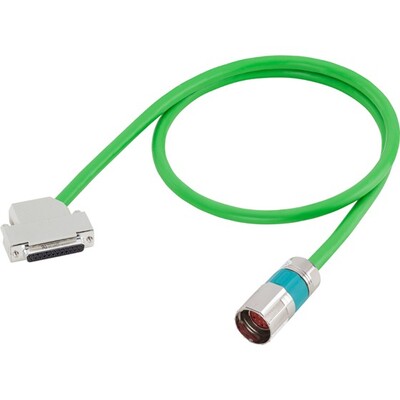

The SIEMENS 6FX80022CA311AC0 is a pre-assembled MOTION-CONNECT 800PLUS signal cable designed for connecting an SMC20 sensor module to an incremental encoder. This 2-meter cable features a polyurethane jacket and M23 full threaded/Sub-D connectors. It is suitable for use in cable carriers and is oil-resistant.

• Robust, High-Performance and Easy to Use
• Outstanding and Proven Quality
• Meets Requirements for Use in Cable Carriers

Product Highlights

Pre-assembled signal cable for connecting SMC20 sensor module to incremental encoder. Features oil-resistant polyurethane jacket and M23/Sub-D connectors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX80022CA311AC0
• Country of Origin: Slovakia

Technical Specifications

• UNSPSC: 32151900
• Application: SMC20 Sensor Module to Incremental Encoder
• Type: Encoder Cable
• Manufacturer: Siemens
• Reference: 6FX80022CA311AC0
• Item Code: 6FX80022CA311AC0
• Condition: New
• Length: 2m
• Function: Connect to motors fitted with SIN/COS incremental encoder
• Voltage: 30V (signal cable)
• Connection: Converter side - 6FC9-348-7HP00, Measurement System side - 6FX2-003-0CE17
• Temperature Min: -58°F (-50°C) fixed, -4°F (-20°C) moving
• Temperature Max: 176°F (80°C) fixed, 140°F (60°C) moving
• Primary brand: Siemens
• Main function: Cable
• Product series / family name: MOTION-CONNECT 800PLUS series
• Functions: Pre-assembled feedback signal cable / cordset
• Design: for incremental encod. with C/D tracks integrated into the mot.
• DESINA: Diameter
• Diameter: 9.8mm cable outer sheath diameter
• Connection type: Straight M23 connector
• 25-pin D-Sub connector: None
• Cross-section: 3x(2x0.14mm2) + 4x0.14mm2 + 2x0.5mm2 + 4x0.22mm2
• Manufacturer product status: Commercialized
• Equivalent to: 6FX80022CA311AC0
• EAN code: 4025515011217
• UPC code: 662643054866
• Compliant with standard(s): UL
• CSA: None
• DESINA (DEcentralized and Standardized INstAllation Technology): None
• Location of origin: Slovakia
• Country of Origin: Slovakia
• Brand: Siemens
• Seller Note: Item is new and good with best price deal.
• Model: 6FX8002-2CA31 -1AC0
• MPN: 6FX8002-2CA31 -1AC0
• Controller Platform: Encoder Cable
• Category: Industrial Automation & Motion Controls
