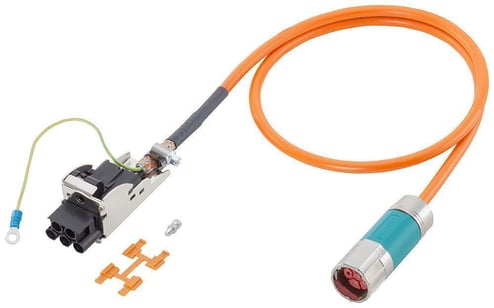

Siemens 6FX50025CS011BF0 Motion-Connect 500 Pre-Assembled Basic Power Cable 600/1000 VAC 15 m L

Product Description

The Siemens 6FX50025CS011BF0 MOTION-CONNECT 500 pre-assembled basic power cable connects a SIMOTICS M-1PH8 motor with terminal box to a SINAMICS S120 motor module. These high-quality power cables ensure safety and problem-free functioning. They are pre-assembled at one or both ends. It has 4 bare copper conductors with a conductor size of 1.5 sq-mm and a length of 15 m.

• Superior quality and system responsibility
• Without brake core

Product Highlights

Siemens MOTION-CONNECT 500 power cables offer a reliable connection between motors and modules. They are pre-assembled for convenience and ensure high-quality performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX50025CS011BF0
• Country of Origin: Slovakia

Technical Specifications

• Length: 15 m
• End Style: M23 Full Threaded Connector x SINAMICS S120 Booksize MoMo Connector
• Application: Production machines and machining centers with permanently routed cable or cable drags and for SIMOTICS S-1FT7, S-1FK7 motors without holding brake, SIMOTICS M-1PH808, M-1PH810, M-1PH813 with full thread connector on SINAMICS S120 motor modules in book size format
• Jacket Color: Orange
• Conductor Size: 1.5 sq-mm
• Voltage Rating: 600/1000 VAC
• Jacket Material: PVC
• Temperature Rating: -4 to 176 deg F
• Insulation Material: CFC
• Number of Conductors: 4
• Type: Pre-Assembled
• Conductor Type: Bare Copper
• Outside Diameter: 8.4 mm
• BABA Compliant: No
• Sold as: EACH
• MPN: 6FX5002-5CS01-1BF0
• Brand: SIEMENS
