Siemens 6FX50025CG011CA0 Power Cable, Prefab, MC500, 20M replacement 6FX50025CG011CA0

Product Description

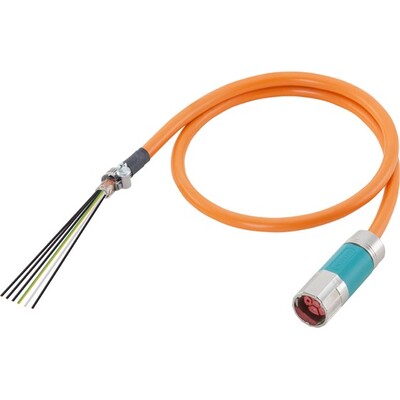

The SIEMENS 6FX50025CG011CA0 is a pre-assembled power cable designed for industrial use with SINAMICS AC Drives and SIMOTICS motors. This MOTION-CONNECT 500 cable is suitable for fixed installations and applications with low mechanical stress. It features IP67 connectors and is UL/CSA certified and RoHS compliant. The cable is 20 meters long with a 8.4 mm outer diameter.

• Robust, High-Performance and Easy to Use
• Outstanding and Proven Quality
• Cost-Effective Solution for Predominantly Fixed Installation

Product Highlights

This pre-assembled power cable ensures reliable connectivity for motion control applications, offering a cost-effective solution for industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX50025CG011CA0
• Country of Origin: Slovakia

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6FX50025CG011CA0
• Application: SINAMICS S120 Booksize Compact Format Power Module/Motor Module to Motor
• Type: Power Cable
• Length: 20m
• Rated Voltage: 30 Volt
• Connector Type: M23 Full Threaded/Open End of Lead
• Material: PVC (Jacket)
• Operating Temperature: -4 to 176 Deg F
• Compliant with standard(s): UL, CSA, DESINA (DEcentralized and Standardized INstAllation Technology)
• Product series / family name: MOTION-CONNECT series
• Functions: Pre-assembled power cable / cordset
• Design: DESINA
• Diameter: 8.4mm cable outer sheath diameter
• Cross-section: 4x1.5mm2
• Equivalent to: 6FX50025CG011CA0
• Article Number (Market Facing Number): 6FX50025CG011CA0
• Product family: For SIMOTICS S-1FT2/S-1FT7/S-1FK2/S-1FK7/M-1PH8 motors with full-thread connector
• Product Lifecycle (PLM): PM300:Active Product
• Commodity Code: 85444290
• LKZ_FDB/ CatalogID: NCZ-M
• Product Group: 9300
• Group Code: R220
• Main function: Cable
