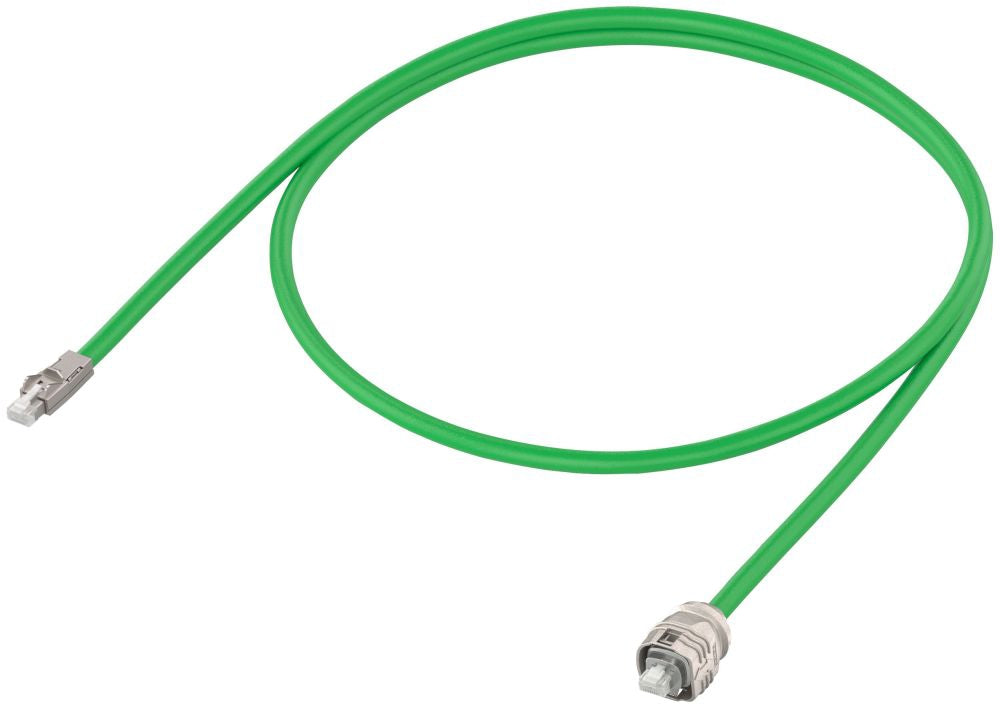

Siemens 6FX50022DC101BF1 Signal Cable

Product Description

The SIEMENS 6FX50022DC101BF1 is a signal cable designed for use in motion control and drive system applications. Signal cables in this product family carry encoder, resolver, or feedback signals between drive components and motors or controllers, maintaining reliable communication in automated industrial environments. At 1.26 pounds, this cable is engineered for professional installation in systems requiring precise signal integrity. Licensed electricians, automation technicians, and drive system integrators are the primary installers of this component.

This cable is suited for industrial automation environments where SIEMENS SINAMICS or SIMODRIVE drive systems are in use. It connects motion control hardware to motors or feedback devices, supporting accurate position and speed feedback. Typical installations are found in manufacturing, process control, and machine tool applications where consistent signal transmission is critical to system performance.

Key Features

• Designed for signal and feedback transmission in motion control drive systems
• Lightweight construction at 1.26 pounds for easier routing and installation
• Built to SIEMENS specifications for reliable compatibility with supported drive platforms
• Suitable for demanding industrial automation environments

Compatibility

Designed as an OEM-style signal cable for use with compatible SIEMENS drive and motion control systems. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Signal cable installation should be performed by a qualified electrician or certified automation technician. De-energize and lock out the drive system before disconnecting or connecting any signal cables. Keep signal cables routed away from high-voltage power conductors to reduce the risk of electromagnetic interference. Follow applicable NEC guidelines and the drive manufacturer's wiring documentation during installation.

Technical Specifications

• Weight: 1.26 pounds
• UPC: 88762120275

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX50022DC101BF1
