Siemens 6FX50022AH001CA0 prefab cable rod 20M

Product Description

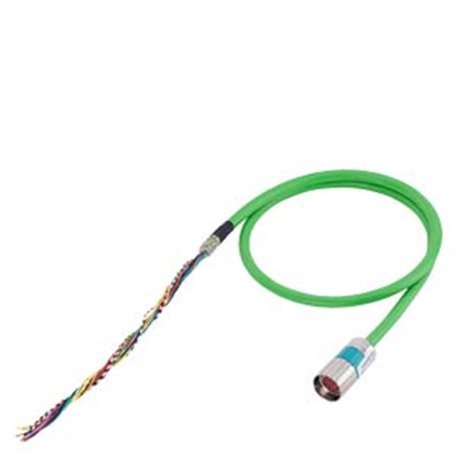

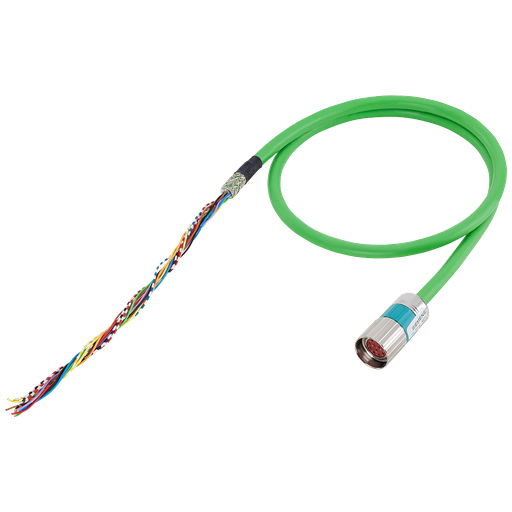

The SIEMENS 6FX50022AH001CA0 is a prefabricated signal cable with a rod design and a length of 20 meters. It features UL/CSA, DESINA MOTION-CONNECT 500, and a Dmax of 9.3 mm. This cable is designed for data and communication purposes, suitable for HTL in motor 1-ph applications.

• Prefabricated signal cable
• 20 m length
• Suitable for data and communication

Product Highlights

Prefabricated signal cable with a rod design, ideal for data and communication applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX50022AH001CA0
• Country of Origin: SK

Technical Specifications

• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 6FX50022AH001CA0
• Brand: SIEMENS
• Manufacturer Part Number: 6FX50022AH001CA0
• Unit of Measure: EA
• Manufacturer: Siemens
• Reference: 6FX50022AH001CA0
• Item Code: 6FX50022AH001CA0
• Condition: New
• Conductor Size: 0.38 sq-mm, 0.5 sq-mm
• End Style: M23 Full Thread Connector x Open End Lead
• Insulation Material: CFC
• Jacket Color: Green
• Jacket Material: PVC
• Number of Conductors: 12
• Outside Diameter: 9.3 mm
• Temperature Rating: -4 to 176 deg F
• Type: SIGNAL CABLE, PREFABRICATED
• Voltage Rating: 30 VAC
• Material outer sheath: Polyvinyl chloride (PVC)
• Flame retardant: According to IEC/EN 60332-1-2
• Pack Size: 1
• PLM Short Description: Active Product
• Product Class: A83
• HQ Catalog Number: 6FX5002-2AH00-1CA0
• Product Family: SINAMICS
• Standard Pack: 1
