Siemens 6ES79720BA420XA0 Bus Connector F. Profibus, W/O Pg Socket

Product Description

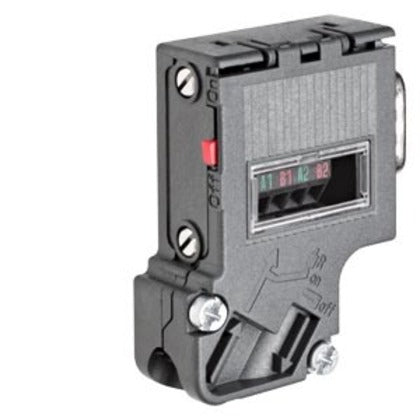

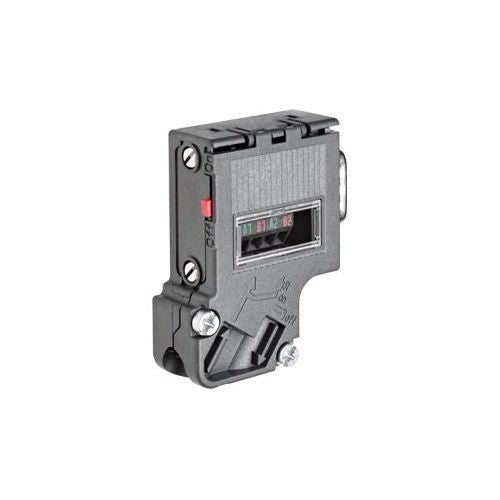

The SIEMENS 6ES79720BA420XA0 is a connection plug for PROFIBUS up to 12 Mbit/s with an inclined cable outlet. Measuring 15.8x 54x 39.5 mm (WxHxD), it features a terminating resistor with isolating function and excludes a PG socket. It is suitable for use with Profibus nodes to the Profibus bus cable.

• 9.6 kb to 12 mb transfer rate
• 35 deg cable outlet, screw connection
• Integrated resistor combination that can be selected with slide switch terminating resistor

Product Highlights

This bus connector is designed for networking and is RoHS compliant. It is suitable for use with networking applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES79720BA420XA0
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 6ES7972-0BA42-0XA0
• Brand: SIEMENS
• Manufacturer Part Number: 6ES79720BA420XA0
• Category: Networking Solutions
• Accessory Type: Bus Connector
• Manufacturer: Siemens
• For Use With/Related Products: Networking
• Base Product Number: 6ES79720
• Part Status: Active
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• Approval: UL
• Type: Bus Connector, RS-485, 9-Pin Sub-D Connector
• Model: 6ES79720BA420XA0
• Material: Plastic
• Standard & Approvals: UL Listed
• Suitable For Use With: Profibus Nodes to The Profibus Bus Cable
• Enclosure Rating: IP20
• Temperature Rating: -20 to 60 Deg C
