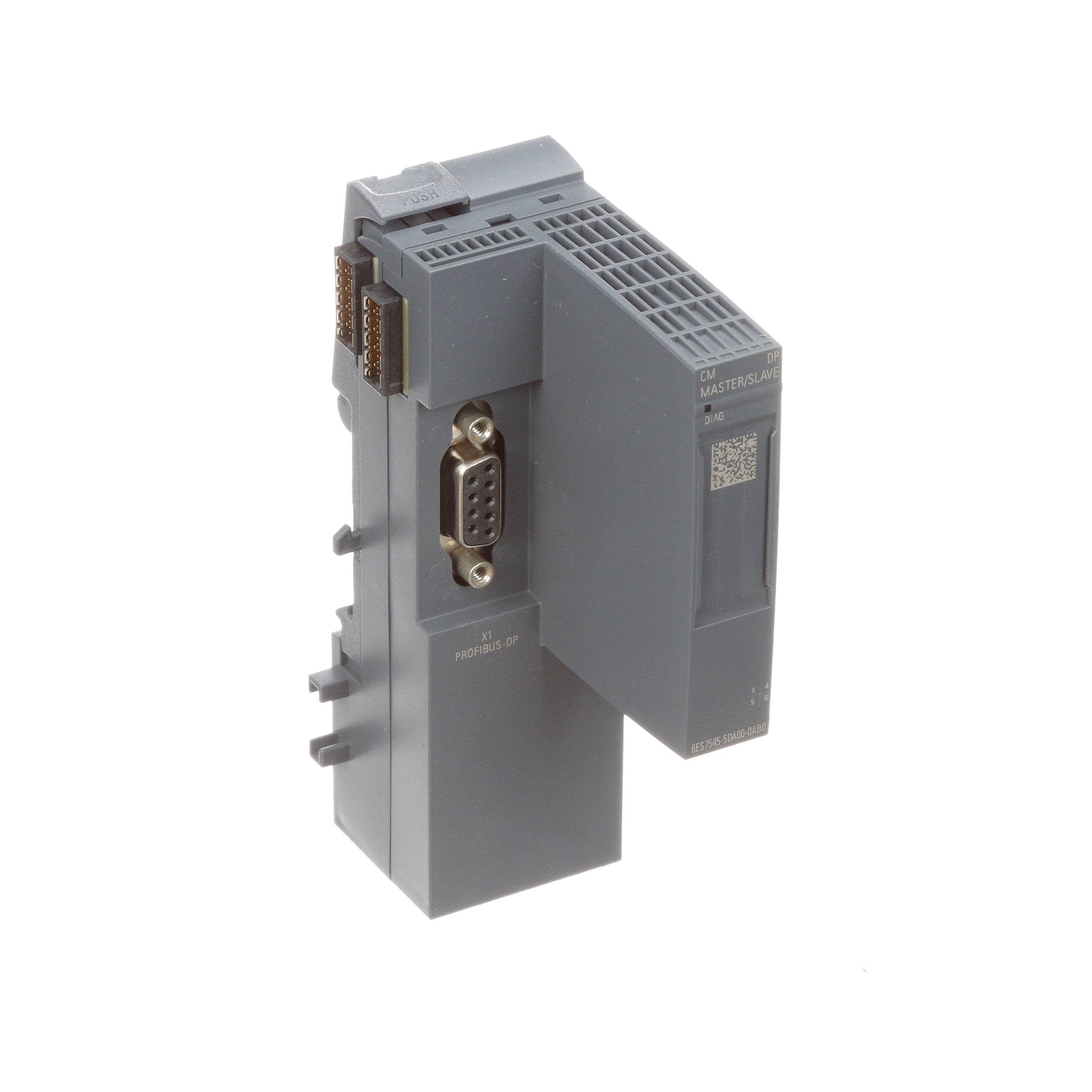

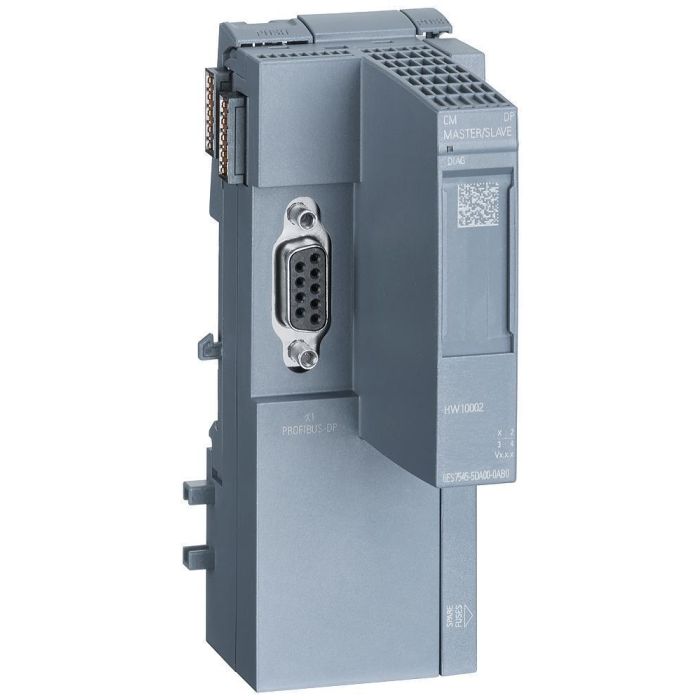

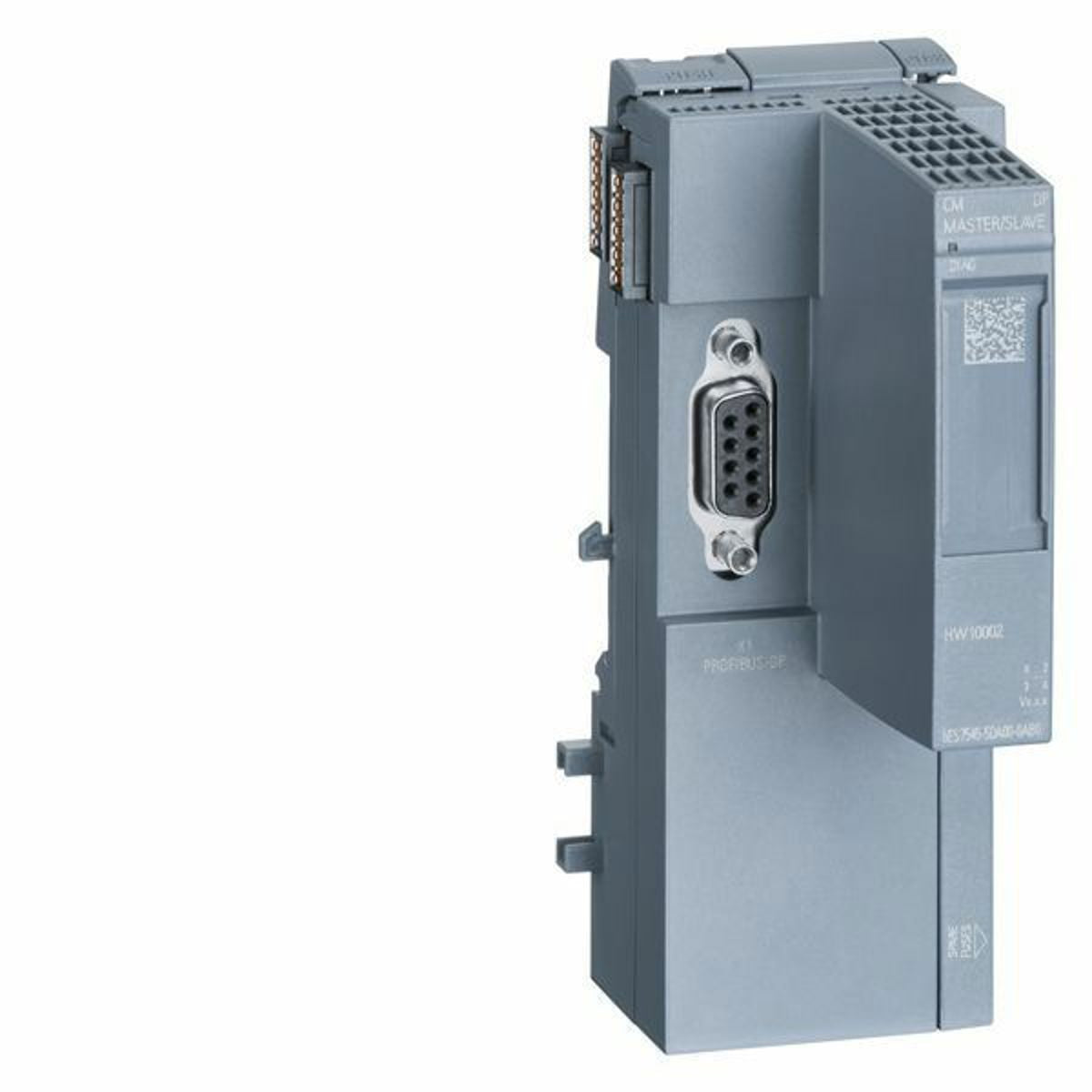

Siemens 6ES75455DA000AB0 Simatic DP CM Profibus DP for ET 200SP CPU 24 V DC (117 mm x 35 mm x 75 mm) 6ES7-545-5DA00-0AB0

Product Description

Siemens 6ES75455DA000AB0 is a Simatic DP communications module that provides a PROFIBUS DP interface for ET 200SP CPU modules. It uses a 9-pin Sub-D (RS485) female connector, supports DP master operation for up to 125 DP slaves and can operate at up to 12 Mbps. The module is rated for 24 V DC and includes diagnostics, bus topology identification, and time-of-day synchronization features.

• PROFIBUS DP interface via 9-pin Sub-D female (RS485); supports DP master and DP slave modes
• DP-master capability for up to 125 PROFIBUS DP slaves; communication rate up to 12 Mbps
• Rated 24 V DC; includes diagnostics, bus topology identification, time synchronization, and line diagnostics

Product Highlights

PROFIBUS DP interface for ET 200SP CPU with 9-pin Sub-D connector, DP master for up to 125 slaves, 24 V DC, 12 Mbps, diagnostics

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES75455DA000AB0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6ES75455DA000AB0
• Replacement Part Number: 6ES7-545-5DA00-0AB0
• Product Family: Simatic ET 200SP
• Module Type: Communication module (CM) for ET 200SP CPU
• Interface Protocol: PROFIBUS DP
• Connector Type: 9-pin Sub-D female (RS485)
• Role: DP master / DP slave
• Max DP Slaves (as DP-master): 125
• Communication Rate: 12 Mbps
• Input Voltage: 24 V DC
• I/O Capacity: 128 B
• Transfer Memory Size: 244 Byte
• Operating Temperature: -25 to 50 °C (vertical), -25 to 60 °C (horizontal)
• Dimensions: 117 mm H x 35 mm W x 75 mm D
• Cable Length (maximum): 100 Meter
• Diagnostics: Diagnostics function with LED indication; line diagnostics; bus topology identification; enable/disable DP slave; time-of-day synchronization
• Transmission Medium: RS485
• RoHS Compliant: Yes
• Country of Manufacture: Germany
• UPC: 887621836245
