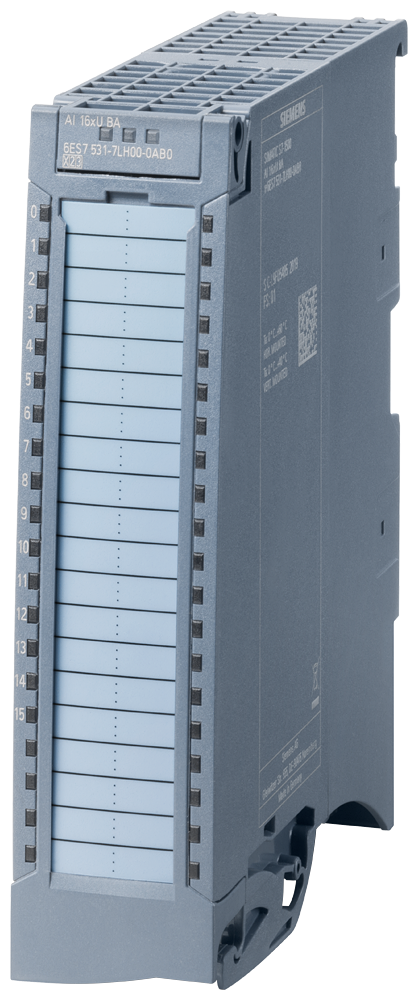

Siemens 6ES75317LH000AB0 S7-1500 AI 16xU BA

Product Description

The SIEMENS 6ES75317LH000AB0 S7-1500 analog input module AI 16xU BA features 16-bit resolution and 0.5% accuracy. With 16 channels in groups of 16, it supports a common mode voltage of 4 V DC and provides diagnostics and hardware interrupts. It is designed for versatile signal ranges and reliable performance.

• 16-bit resolution with 0.5% accuracy
• 16 analog input channels
• Signal Range: 1 to 5 V at 10 MOhm, -1 to 1 V at 10 MOhm, -10 to 10 V at 10 MOhm

Product Highlights

The Siemens S7-1500 analog input module enhances automation capabilities with high-precision inputs and reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES75317LH000AB0
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 6ES75317LH000AB0
• Series: ET 200MP Series
• Accuracy: 0.5
• Resolution: 16 Bit
• Terminal Type: Screw/Push-In Front Connector
• Voltage Rating: 4
• Number of Inputs: 16
• Temperature Rating: -30 to 60
• Signal Range: 1 to 5 V at 10 MOhm, -1 to 1 V at 10 MOhm, -10 to 10 V at 10 MOhm
• Analogue inputs configurable: true
• Appendant operation agent (Ex ia): false
• Appendant operation agent (Ex ib): false
• Explosion safety category for dust: None
• Input signal, configurable: true
• Input, current: false
• Input, resistance thermometer: false
• Input, resistor: false
• Input, thermocouple: false
• Input, voltage: true
• Number of analogue outputs: 0
• Suitable for safety functions: false
