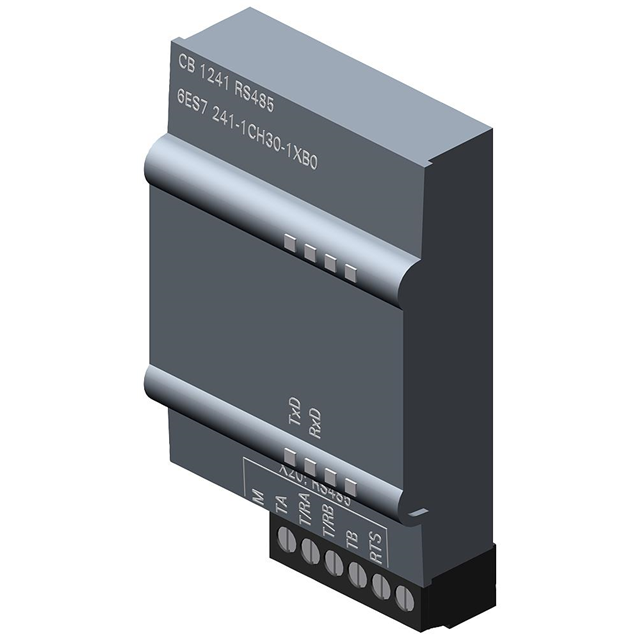

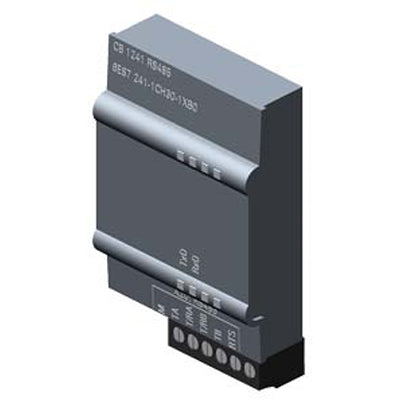

Siemens 6ES72411CH301XB0 Communication CB 1241 RS485 Module (S7-1200 Series)

Product Description

Siemens 6ES72411CH301XB0 is a SIMATIC S7-1200 communication board (CB 1241) that provides one RS485 port with a screw connector to expand S7-1200 controller connectivity. It supports message-based Freeport communication, operates from a 5 VDC supply with low input current (50 mA), and is RoHS compliant. The module has a compact footprint (approx. 3.15 x 1.97 x 1.19 in) for horizontal or vertical installation in automation systems.

• One RS485 communication port with screw connector for serial device and network integration
• Operates on 5 VDC supply with low input current (50 mA); supports message-based Freeport communication
• Designed for SIMATIC S7-1200 controllers; compact dimensions suitable for horizontal or vertical installation

Product Highlights

CB 1241 RS485 communication module for S7-1200; 5 VDC, 50 mA; RoHS compliant; compact dimensions

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72411CH301XB0
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6ES72411CH301XB0
• Product Type: Communication module (CB 1241)
• Series: SIMATIC S7-1200
• Compatible With: S7-1200 controller
• Communication Interface: RS485 (screw connector)
• Number of Ports: 1
• Input Voltage: 5 VDC
• Input Current: 50 mA
• Operating Temperature: -20 to 60 °C
• Mounting Orientation: Horizontal or vertical
• Dimensions: 3.15 x 1.97 x 1.19 in (L x W x H)
• Weight: 0.068 lb
• Certifications: RoHS compliant
• UPC: 040892696707
• GTIN: 00040892696707
• RS Stock Number: 70781149
• UNSPSC Code: 39120000
• ECCN: EAR99
• Country of Origin: China
• Primary Type: Communication
