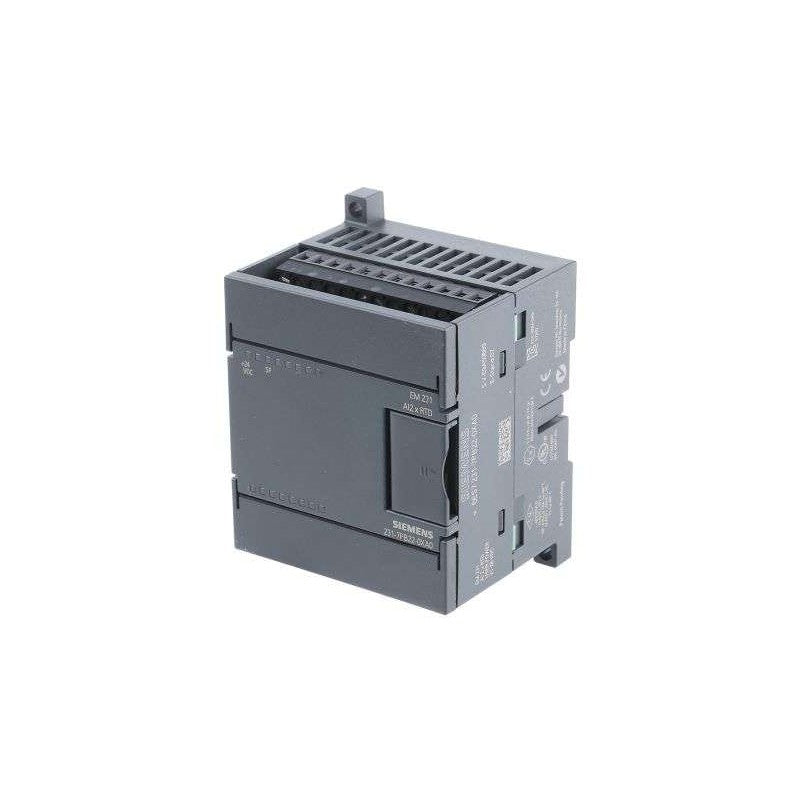

Siemens 6ES72317PB220XA0 Simatic S7-200 Analog Input EM 231

Product Description

The Siemens 6ES72317PB220XA0 SIMATIC S7-200 analog input EM 231 can be connected as an extension module without an amplifier. It enables temperatures to be captured easily and very accurately. The EM 231 RTD temperature module can be used with the 222, 224, 226 and 226 XM CPUs.

• Enables temperatures to be captured easily and very accurately
• Can be used with the 222, 224, 226 and 226 XM CPUs
• Resolution: 15-bit + sign

Product Highlights

The Siemens SIMATIC S7-200 analog input module is for S7-22X CPU only and ideal for RTD input applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72317PB220XA0
• Country of Origin: Germany

Technical Specifications

• Manufacturer part no.: 6ES7 231-7PB22-0XA0
• Input types: Pt100, 200, 500, 1000 Ohm; Pt10000; Ni 10, 120, 1000 Ohm; R 150, 300, 600 Ohm
• Resolution: 15-bit + sign
• Potential separation: 500 V/AC
• Neutralising compensation: Not required
• Wiring: Two, three or four core
• Max. cable length to sensor: 100 m
• Specification: EM 231 RTD
• Type: EM 231 RTD
• Mounting Type: DIN Rail Mount
• Specification Met: Em 231 Rtd
• MPN: 6ES7 2317PB220XA0
• Model: 6ES7 231-7PB22-0XA0
• Brand: SIEMENS
• Application: For S7-22X CPU Only
• Mounting: screw-type mounting
• Controller Platform: S7/200
• Number of Inputs: 2
• Environmental Classification: REACH SVHC
• RoHS: Compliant
