Product Description

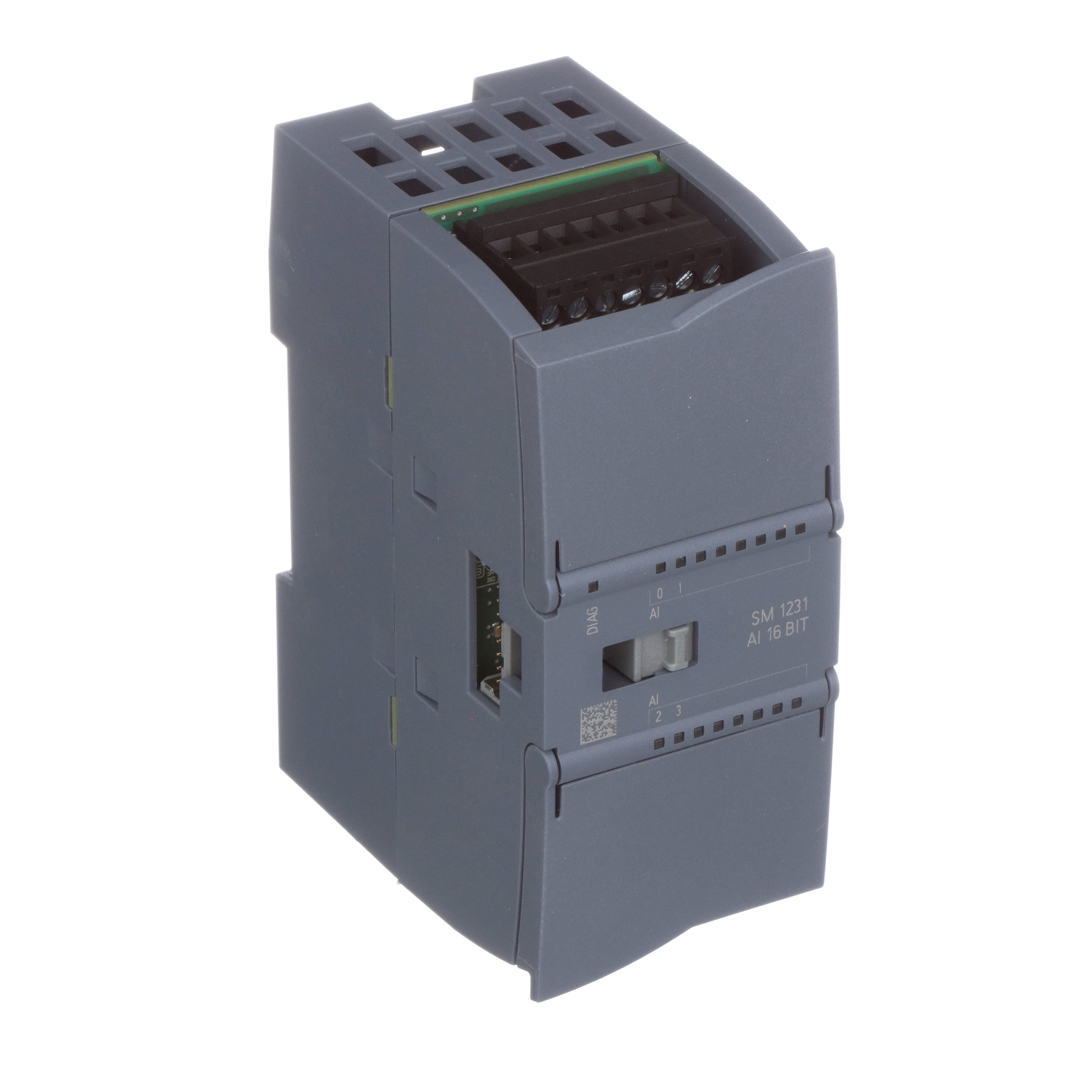

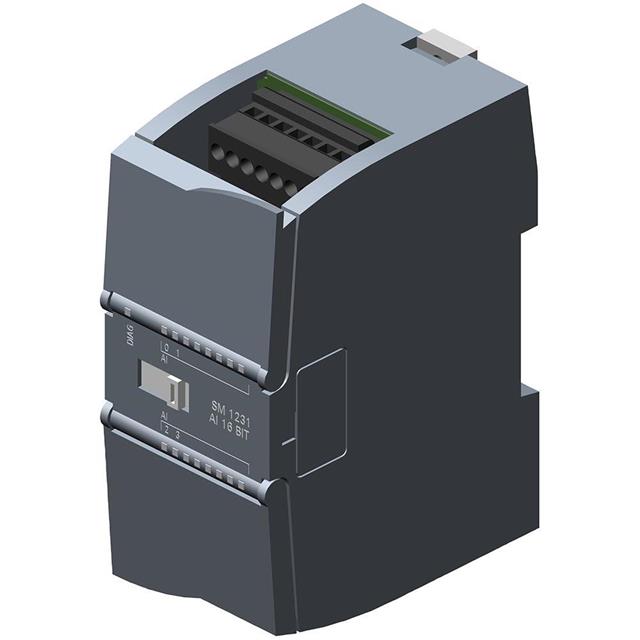

The Siemens 6ES72315ND320XB0 is a SIMATIC S7-1200 input module that provides four analog inputs and requires a 24 VDC supply. It accepts voltage ranges ±10 V, ±5 V, ±2.5 V and ±1.25 V and supports 0–20 mA and 4–20 mA current signals with 15-bit resolution plus sign bit. The module mounts on DIN rail, uses screw-terminal connections, has IP20 protection and operates from -20 to 60 °C.
- Four analog inputs supporting ±10 V, ±5 V, ±2.5 V, ±1.25 V and 0–20 mA / 4–20 mA signal ranges; 15-bit resolution plus sign bit
- Requires 24 V DC supply; module input current 65 mA; backplane output current 80 mA at 5 V DC; power loss 1.8 W
- DIN rail mounting, screw terminal termination, IP20 enclosure rating, operating temperature -20 to 60 °C; approvals include CE, CSA, cULus, UL, FM, RCM
Product Highlights
4 analog inputs; ±10 V and 0–20 mA support; 15-bit resolution; 24 V DC supply; DIN rail mount; IP20
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 6ES72315ND320XB0
Technical Specifications
-
Manufacturer: Siemens
-
Manufacturer Part Number: 6ES72315ND320XB0
-
Brand: Siemens
-
Series: SIMATIC S7-1200
-
Type: Analog input module
-
Number of Inputs: 4
-
Input Type: Analog
-
Input Voltage (signal ranges): +/- 1.25 V, +/- 2.5 V, +/- 5 V, +/- 10 V
-
Input Current (signal ranges): 0 to 20 mA, 4 to 20 mA
-
Resolution: 15-bit plus sign bit
-
Module Supply Voltage: 24 V DC
-
Module Input Current: 65 mA
-
Backplane Output Current: 80 mA at 5 V DC
-
Power Loss: 1.8 W
-
Mounting Type: DIN rail
-
Termination Style: Screw terminal
-
Enclosure Rating: IP20
-
Operating Temperature: -20 to 60 °C
-
Approvals/Certifications: CE, CSA, cULus, UL, FM, RCM (C-Tick)
-
For Use With: SIMATIC S7-1200 controllers
-
Dimensions: 45 mm W x 75 mm D x 100 mm H
-
RoHS Status: ROHS3 Compliant
-
Part Status: Active
-
ECCN: EAR99
-
HTSUS: 8537.10.9170
-
UNSPSC: 39120000
-
UPC: 887621217709
-
Part Number Alias: 1336823; 6ES7231-5ND32-0XB0; 3473-6ES72315ND320XB0
