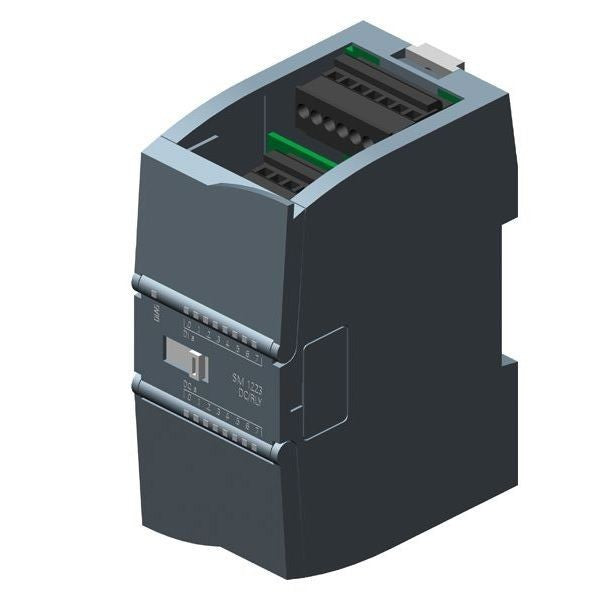

Siemens 6ES72231PH320XB0 Digital I/O Module 24 VDC 2 Amp

Product Description

The SIEMENS 6ES72231PH320XB0 is a Simatic S7-1200 digital I/O module with 8 digital inputs and 8 relay outputs. This module allows for individual adaptation to meet specific requirements. It helps save space in the control cabinet and maximizes hardware expenditure. It operates in temperatures from -20 to 60 degrees C.

• 8 DI 24 V DC Sink/Source
• 8 DO, relay 2 A
• Flexible integration into all network structures PROFINET, PROFIBUS, AS-i, IO-Link, CANopen or even connection to remote control centers

Product Highlights

The SIEMENS 6ES72231PH320XB0 digital I/O module is designed for use with S7-1200 controllers.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72231PH320XB0
• Country of Origin: China

Technical Specifications

• Amperage: 4 mA, 2 Amp
• Connection Type: Screw Connection
• Material: Plastic
• Number of Inputs: 8
• Output: (8) Relay
• Power Consumption: 5.5 W
• Temperature Rating: -20 to 60 degrees C Ambient
• Type: Digital
• Voltage: 24 VDC Input, 5-30 VDC/5-250 VAC Output
• Brand: Siemens
• Sub Brand: Simatic
• 12-Digit UPC: 887621175320
• Environmental Conditions: 95% at 25 C without Condensation Operating
• Product UPC: 88762117532
• Used With: S7-1200 Controller
• Weight: 0.487 lb
• Depth: 75 mm
• Height: 2.24 Inch
• Length: 4.37 Inch
• Width: 3.500 in
• Manufacturer Part Number: 6ES72231PH320XB0
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Number of Outputs: 8
• Unit of Measure: EA
• Number of IO Ports: 16
• Series: S7-1200 Series
• Input Current: 145 mA A
• Input Type: Digital
• For Use With: S7-1200 Controllers
• UPC Code: 887621175320
• Supply Voltage: 24 VDc
• Temperature Operating Range: -20 to 60 C
• Output Type: Digital
• Primary Type: I/O
• Overview: SIMATIC S7-1200
• Voltage - Supply: 20.4 ~ 28.8VDC
• Mounting Type: DIN Rail
• Packaging: Box
• Termination Style: Screw Terminal
• Part Status: Active
• Operating Temperature: -20°C ~ 60°C
• Ingress Protection: IP20
• For Use With/Related Products: SIMATIC S7-1200
• Approval Agency: CE, CSA, cULus, UL
• Number of Inputs and Type: 8 - Digital
• Base Product Number: 6ES72231
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8537.10.9170
• REACH Status: REACH Unaffected
• Model: Simatic S7
• Country of Origin: Germany
• Category: Business & Industrial Industrial Automation & Motion Controls Industrial Automation & Motion Controls PLCs & HMIs PLC Processors
• Voltage Rating: 24 VDC
• Standard & Approvals: UL, cULus Listed, CE Certified, CSA Certified, FM Approved
• EANUCC13: 6940408101999
• Amperage Rating: 145 mA
• Dimensions: 100 mm H x 45 mm W x 75 mm D
