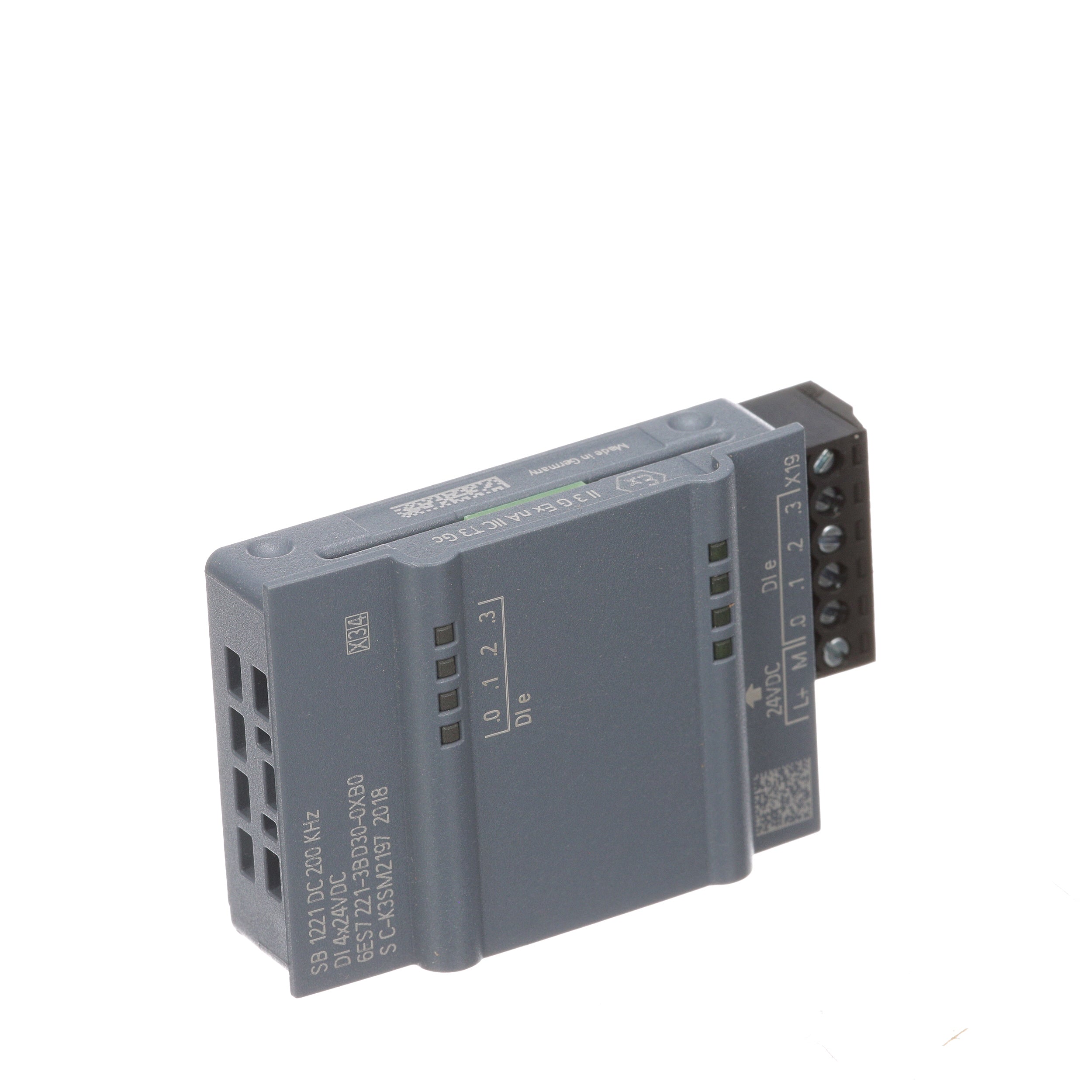

Siemens 6ES72213BD300XB0 SB 1221 Digital Input Module 24 VDC (4 Inputs) 6ES7221-3BD30-0XB0

Product Description

Siemens 6ES72213BD300XB0 is a SIMATIC S7-1200 SB 1221 digital input signal board that provides four digital inputs for 24 V DC systems with up to 200 kHz input frequency. The module expands S7-1200 PLC input capacity, uses screw-terminal connections and DIN-rail mounting, and has a typical input current of approximately 50 mA with an operating temperature range of -20 to 60 °C. Approvals include CE, CSA, cULus and UL.

• Four digital inputs (4 DI) for 24 V DC operation with up to 200 kHz input frequency
• DIN-rail mounting with screw-terminal termination; compatible with SIMATIC S7-1200 controllers
• Typical input current ~50 mA; operating temperature -20 to 60 °C; approvals CE, CSA, cULus, UL

Product Highlights

SB 1221 input module for S7-1200; 4 digital inputs, 24 VDC, 200 kHz; DIN-rail, screw terminals

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72213BD300XB0
• Country of Origin: China

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 6ES72213BD300XB0
• Alternate MPN: 6ES7221-3BD30-0XB0
• Model / Series: SB 1221 / SIMATIC S7-1200
• Product Type: Digital input module
• Number of Inputs: 4
• Input Type: Digital
• Input Voltage: 24 V DC
• Input Frequency: 200 kHz
• Input Current: 50 mA (typical)
• Mounting Type: DIN rail
• Termination Style: Screw terminal
• Operating Temperature: -20 to 60 °C
• Approvals: CE, CSA, cULus, UL
• For Use With: SIMATIC S7-1200 controllers
• Country of Origin: China
• Weight: 0.066 lb
• Dimensions: 3 x 2 x 1.15 in (L x W x H)
• UPC: 662643539004
• GTIN: 00662643539004
