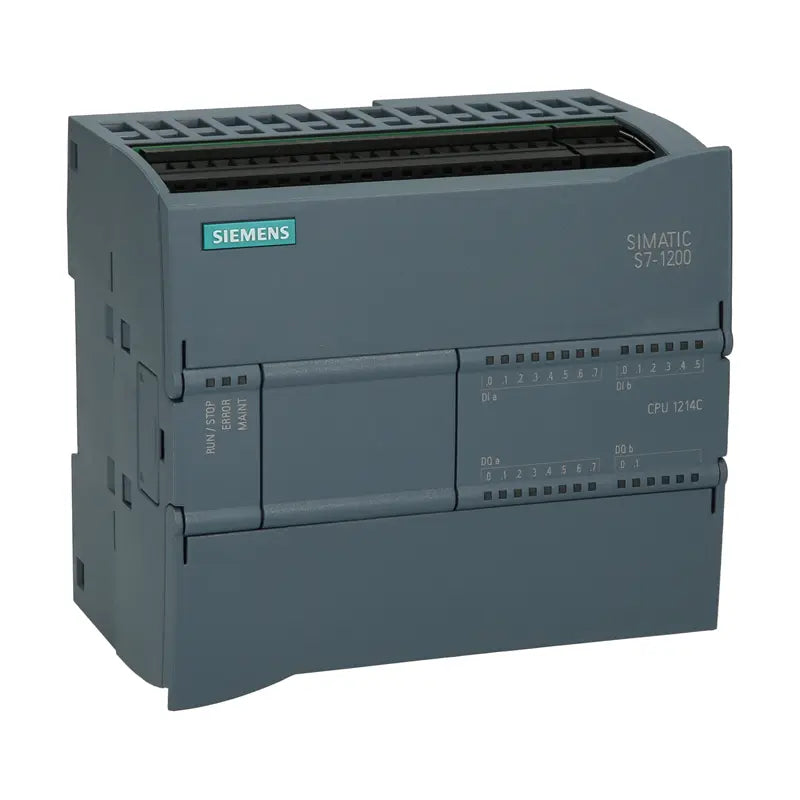

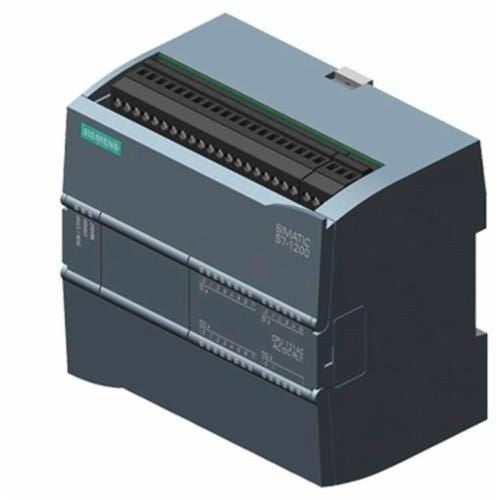

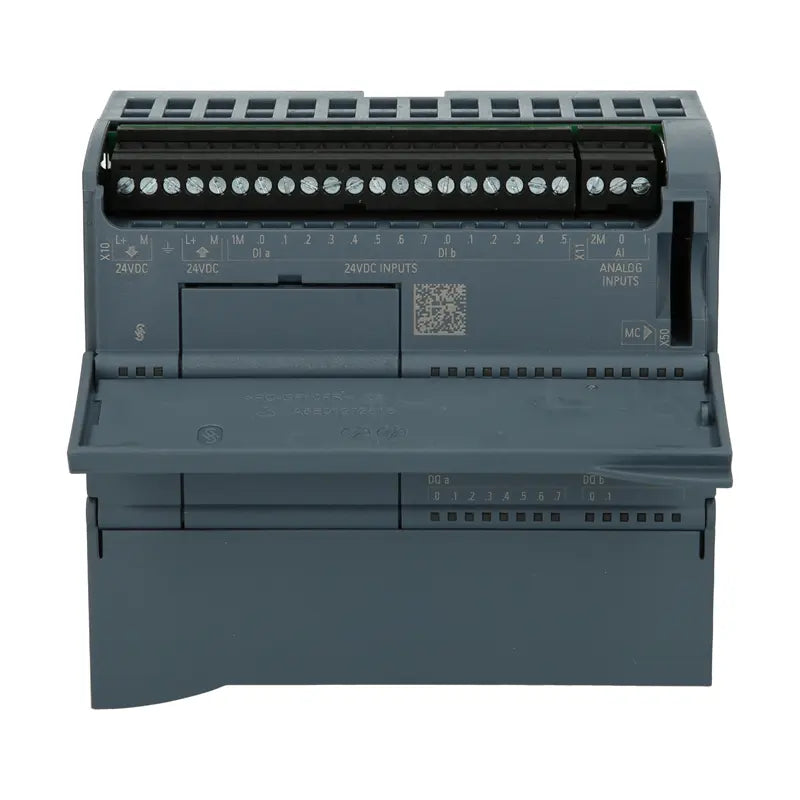

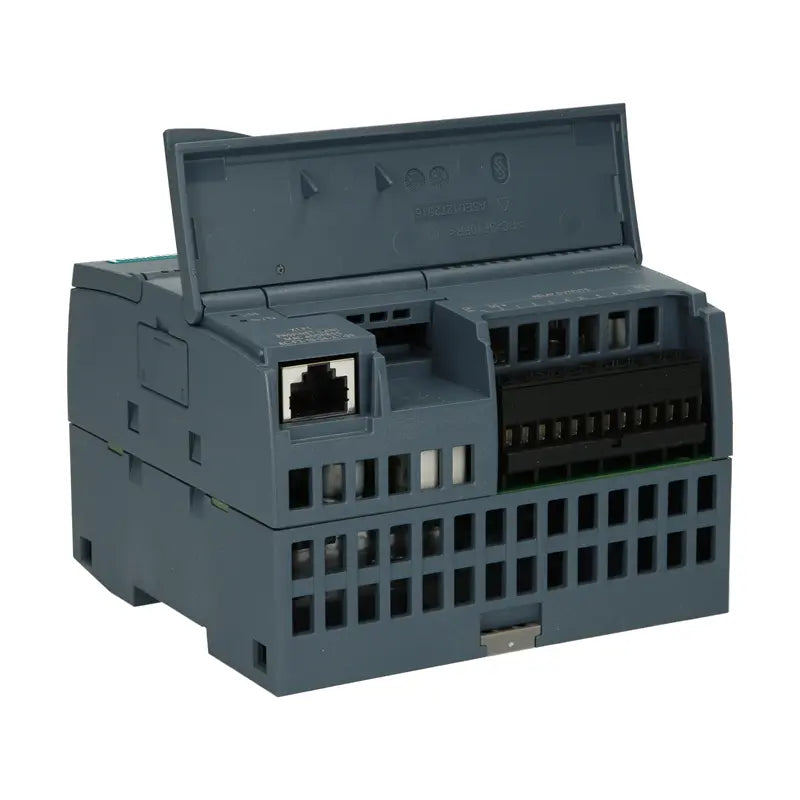

Siemens 6ES72141BG400XB0 CPU 1214C AC/DC/Relay 14DI/10DO/2AI

Product Description

The Siemens 6ES72141BG400XB0 is a Simatic S7-1200, CPU 1214C compact CPU with AC/DC/relay. It features onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC, and a power supply of AC 85-264 V AC at 47-63 Hz. The PLC is configured using the STEP 7 Basic software in the TIA Portal.

• 14 Digital Inputs and 10 Relay Outputs
• Supply voltage of 120~230VAC
• 100 KB RAM

Product Highlights

The Siemens 6ES72141BG400XB0 is designed for industrial automation and control applications. It supports efficient data handling and processing.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72141BG400XB0
• Country of Origin: China

Technical Specifications

• Memory: 100 KB RAM
• Mounting Type: DIN Rail/Wall
• Number of Inputs: 14
• Power Consumption: 14 W
• Temperature Rating: -40 to 70 degrees C Ambient
• Type: CPU 1214C
• Voltage: 120-230 VAC
• Brand: SIEMENS
• Sub Brand: Simatic
• Environmental Conditions: 0 - 95% RH Non-Condensing
• Used With: S7-1200 Controller
• Depth: 75 mm
• Height: 3.55 Inch
• Length: 4.73 Inch
• Width: 4.340 in
• Country of Origin: China
• Category: Industrial Automation and Controls
• Controllers: Programmable (PLC, PAC)
• Display Type: No Display
• Manufacturer: Siemens
• Communications: Ethernet, RJ45
• Series: SIMATIC S7-1200
• Part Status: Active
• Operating Temperature: -20 C ~ 60 C
• Number of Inputs and Type: 14 - Digital
• Ingress Protection: IP20
• Number of Outputs and Type: 10 - Relay
• Approval Agency: CE, cULus, FM, UL
• Expandable: Non-Expandable
• Base Product Number: 6ES72141
• Supply Voltage: 120 ~ 230VAC
• Digital inputs: 14 digital inputs 24 V DC
• Digital outputs: 10 digital outputs Relay; 2 A
• Analogue inputs: 2 analogue inputs 0-10 V
• Communication port: PROFINET Port
• Program/data memory: 100 KB
• Alternate Mfr Part Number: 6ES7214-1BG40-0XB0
• Controller Type: I/O
• Input Current: 100 / 50 mA
• Input Type: Digital
• Manufacturer Part Number: 6ES72141BG400XB0
• Number of Outputs: 10
• Output Type: Relay
• Temperature Operating Range: -20 to 60 C C
• Enclosure Type: IP20
• PowerSupply: 120 to 230 VAC
• Memory Size: 100 kB
• Input/Output Capacity: 14 Digital/2 Analog Input, 10 Digital Output
• Dimensions: 100 mm H x 110 mm W x 75 mm D
• Mounting: Wall/DIN Rail
• Standard & Approvals: WEEE (2012/19/EU), CE Certified, UL Listed, CSA Certified, cULus Certified, FM Approved, C-TICK Certified, KC Certified
