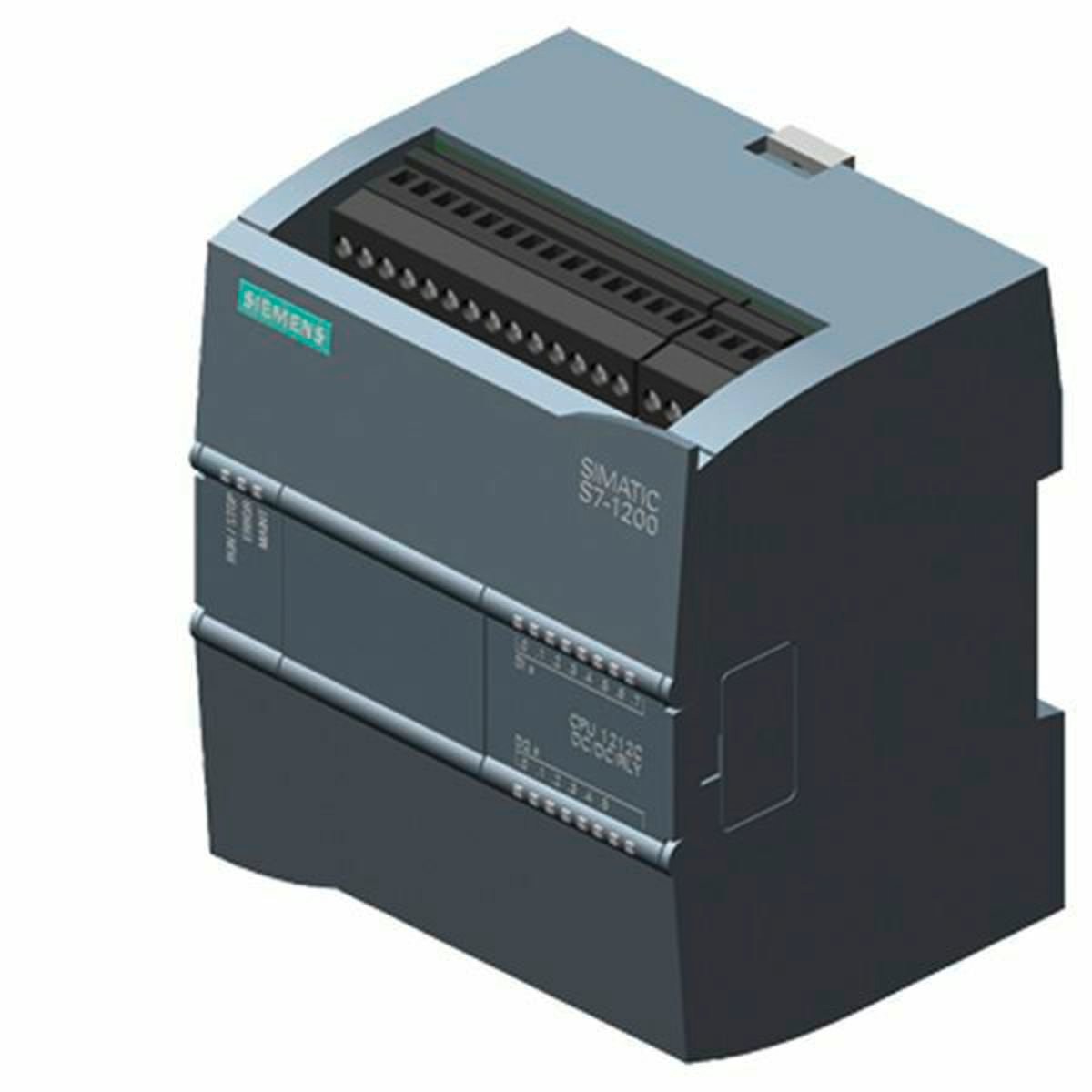

Siemens 6ES72121HE400XB0 Simatic S7-1200 CPU 1212C Compact CPU DC/DC/RLY

Product Description

The SIEMENS 6ES72121HE400XB0 Simatic S7-1200 CPU 1212C is a compact CPU with DC/DC/RLY. It has onboard I/O with 8 DI 24V DC, 6 DO Relay 2A, and 2 AI 0 - 10V DC. The PLC operates on a 20.4 ~ 28.8V DC power supply and supports programming in LAD, FBD, and SCL languages. Compliant with IEC 61000 standards.

• 8 digital inputs and 6 relay outputs
• 20.4 ~ 28.8V DC power supply
• 75KB Memory size

Product Highlights

The Siemens 6ES72121HE400XB0 is designed for industrial automation and control applications. It is suitable for a variety of tasks.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72121HE400XB0
• Country of Origin: China

Technical Specifications

• Catalog Number: 6ES72121HE400XB0
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Made in USA: No
• UPC Code: 887621769031
• GTIN: 00887621769031
• Category: PLC Processors
• Controllers: Programmable (PLC, PAC)
• Series: S7-1200
• Part Status: Active
• Number of Inputs and Type: 8 - Digital
• Number of Outputs and Type: 6 - Relay
• Expandable: Non-Expandable
• Input Voltage: 20.4 ~ 28.8VDC
• Display Type: No Display
• Communications: -
• Memory Size: 2 MB
• Mounting Type: DIN Rail/Wall
• Operating Temperature: -20°C ~ 60°C
• Ingress Protection: IP20
• Approval Agency: CE, cULus, FM, KC, RCM, UL
• Base Product Number: 6ES72121
• UNSPSC Code: 39120000
• Number of Outputs: 6
• Number of Inputs: 8
• Input Current: 400 mA
• Input Type: Digital
• Supply Voltage: 24 VDc
• Temperature Operating Range: -20 to 60 °C C
• Output Type: Relay
• Controller Type: I/O
• Overview: SIMATIC S7-1200
• MPN: 6ES7212-1HE40-0XB0
• Controller Platform: Guard PLC
• Type: CPU (Central Processing Unit)
• Model: 6ES7212-1HE40-0XB0
• Number of Controlled Axes: 8
• Enclosure Type: IP20
• PowerSupply: 20.4 to 28.8 VDC
• Program Capacity: 75 kB
• Standard & Approvals: CE Certified, EAC Certified, FM Approved, KC Approved, RCM Approved, UL Listed, UL Recognized
• Input/Output Capacity: 8 Digital and 2 Analog Input/6 Digital Output
• EANUCC13: 4047623402718
