Siemens 6ES71942MN151AA0 4-Pole pre-assembled power cable M8 15 m (180°) 6ES71942MN151AA0

Product Description

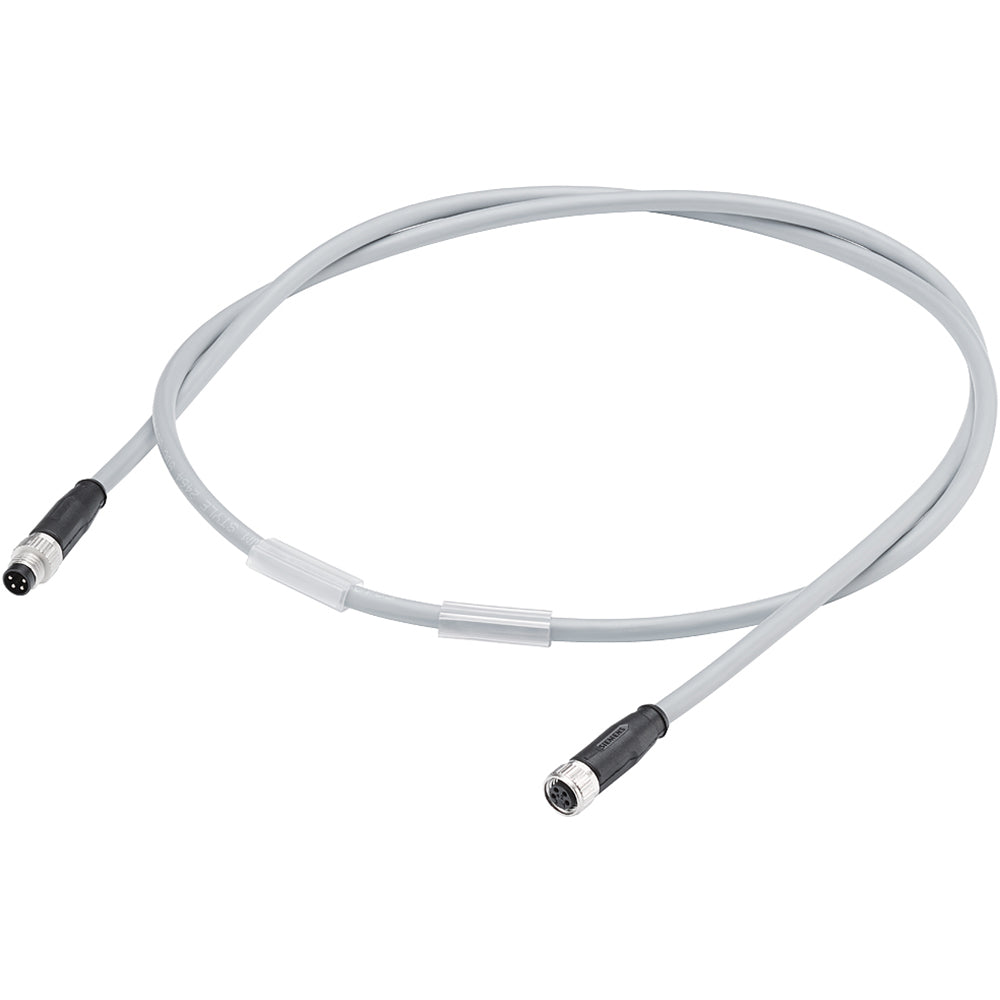

Siemens 6ES71942MN151AA0 is a 4-pole pre-assembled power cable with an M8 connector and M8 socket for PLC and ET 200AL distributed I/O system applications. The 15 m cable uses a polyethylene/PUR sheath with PUR construction, has a 5.1 mm outer diameter and 1.00 mm conductor diameter, and features a 180° cable outlet. It is rated IP65/IP67 and operates from -25 °C to +80 °C.

• 4-pole M8 4-pin plug and socket with 180° cable outlet, designed for PLCs and ET 200AL I/O systems
• 15 m length; cable sheath material polyethylene/PUR (PUR jacket) with PP wire insulation; cable outer diameter 5.1 mm
• Electrical details: four conductors (1.00 mm conductor diameter), insulation outer diameter 1.46 mm; IP65/IP67; operating temperature -25 °C to +80 °C

Product Highlights

M8 4-pin plug/socket; 15 m length; 4-pole; PE-PUR/PUR cable; 5.1 mm OD; IP65/IP67; -25 °C to +80 °C

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71942MN151AA0

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6ES71942MN151AA0
• Product Type: PLC power cable / pre-assembled power cable
• Connector Type: M8 4-pin plug and M8 4-pin socket
• Poles: 4
• Length: 15 m
• Cable Jacket Material: Polyethylene/PUR (PE-PUR / PUR)
• Wire Insulation Material: PP
• Number of Conductors: 4
• Conductor Diameter: 1.00 mm
• Cable Outer Diameter: 5.1 mm
• Wire Insulation Outer Diameter: 1.46 mm
• Cable Outlet Angle: 180°
• IP Rating: IP65, IP67
• Operating Temperature: -25 °C to +80 °C
• Suitable For: ET 200AL distributed I/O system
• Wire Colors: White, Brown, Blue, Black
• Case Material: Plastic
