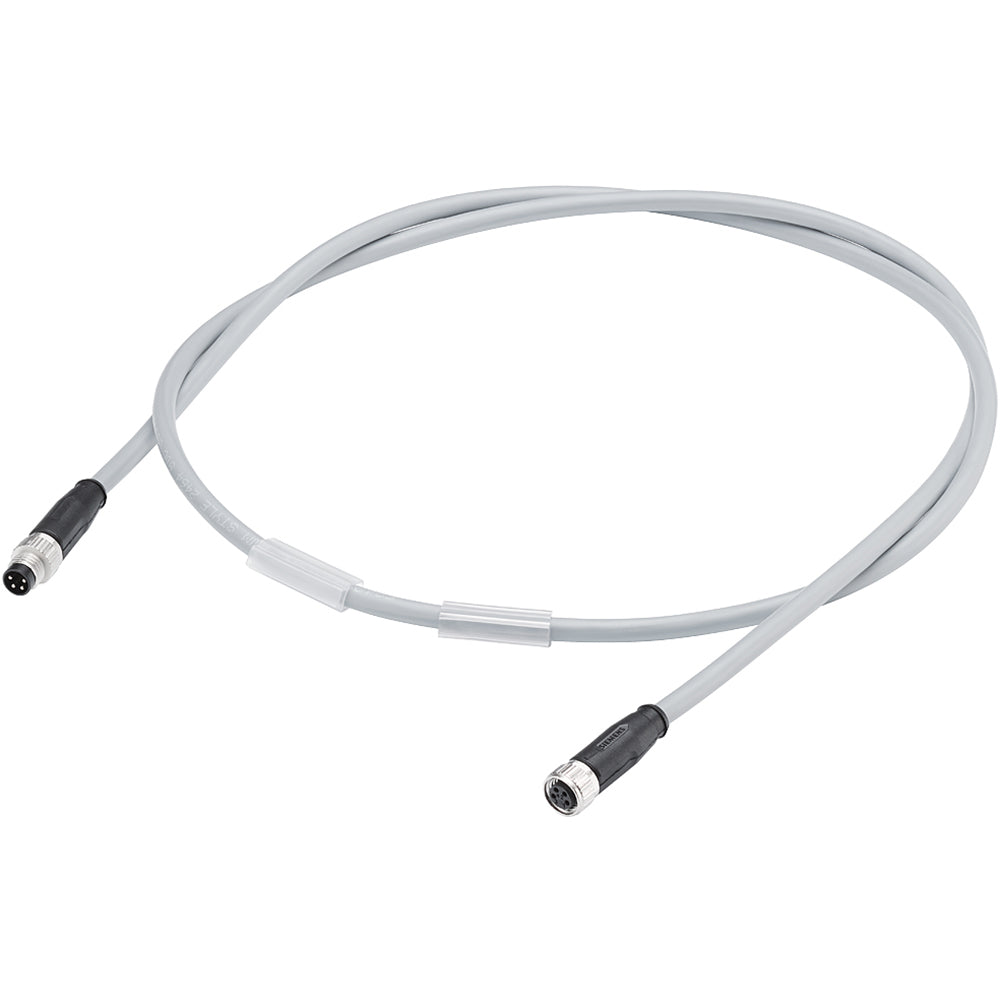

Siemens 6ES71942LH501AA0 Power Cable M8 4-Core 5.0 m (180 degree cable outlet)

Product Description

Siemens 6ES71942LH501AA0 is a preassembled 4-core power cable with M8 plug and M8 socket designed for sensor, actuator, and PLC power connections. The flexible 5.0 m PVC-sheathed cable with polypropylene core insulation features a 180 degree cable outlet for connecting ET-200AL to a 24 VDC supply. It is rated IP65/IP67, silicone-free, RoHS compliant, and supports an ambient temperature range of -30 °C to 80 °C with a 52 mm bending radius.

• Preassembled M8 plug to M8 socket, 4-core power cable, length 5.0 m
• PVC cable sheath with polypropylene core insulation; inner conductor Ø 0.8 mm, sheath Ø 5.2 mm
• IP65/IP67 rated, silicone-free, RoHS compliant; ambient temperature -30 °C to 80 °C; 52 mm continuous bending radius

Product Highlights

Preassembled M8 4-core power cable, 5.0 m length, 180 degree outlet, IP65/67 rated, for ET-200AL and 24 VDC applications

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71942LH501AA0
• Country of Origin: Czech Republic

Technical Specifications

• Manufacturer: Siemens
• Brand: SIEMENS
• Manufacturer Part Number: 6ES71942LH501AA0
• Product Type: Power cable / Sensor/Actuator cable
• Series: SIMATIC ET200
• Connector Type: M8 plug and M8 socket
• Number of Cores: 4
• Number of Pins: 4
• Length: 5.0 m
• Cable Outlet Angle: 180 degree
• Cable Sheath Material: PVC
• Core Insulation Material: Polypropylene
• Inner Conductor Diameter: 0.8 mm
• Core Insulation Outer Diameter: 1.46 mm
• Cable Sheath Outer Diameter: 5.2 mm
• Continuous Bending Radius: 52 mm
• Ambient Temperature Range: -30 °C to 80 °C
• Enclosure Rating: IP65 / IP67
• RoHS Compliant: Yes
• Silicone-Free: Yes
• Application: Connecting ET-200AL to 24 VDC power supply; sensor, actuator, and PLC power connections
• Country of Origin: Czech Republic
