Siemens 6ES71942LH500AA0 Connecting Cable ET-Connection (5.0 m) 6ES7194-2LH50-0AA0

Product Description

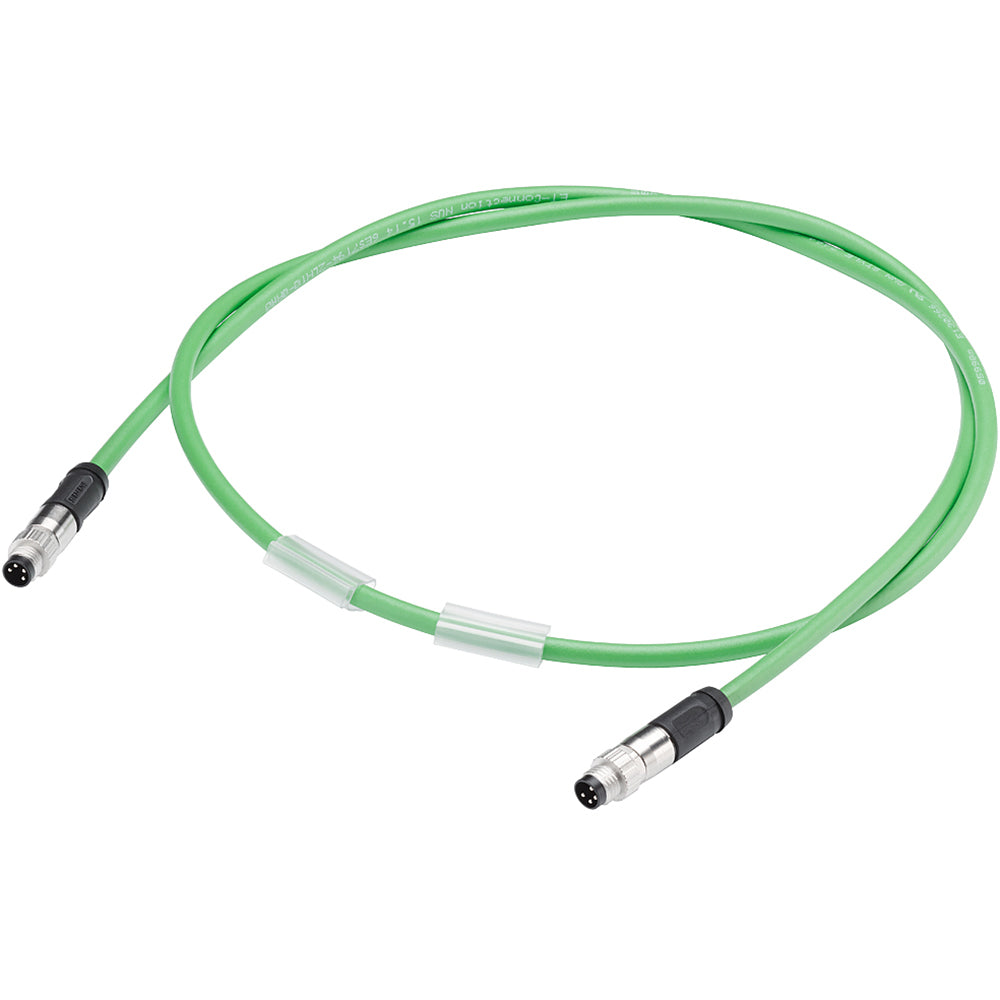

The Siemens 6ES71942LH500AA0 is a 5.0 m ET-Connection connecting cable preassembled with two M8 connectors for SIMATIC ET200 sensor and actuator connections. It is a 4-core shielded circular cable with PVC sheath and silicone-free construction, designed for industrial environments. The assembly provides IP65/IP67 protection, a 180 degree cable outlet, layered foil and braid shielding, and an ambient temperature rating of -30 to 80 C.

• Preassembled with two M8 connectors; 4-core shielded cable for ET-Connection
• Length 5.0 m, PVC sheath, silicone-free construction, RoHS compliant
• IP65/IP67 enclosure rating, 180 degree cable outlet, ambient range -30 to 80 C

Product Highlights

Preassembled shielded 4-core M8 cable for SIMATIC ET200 with IP65/IP67 protection and -30 to 80 C operating range

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71942LH500AA0
• Country of Origin: Slovakia

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 6ES71942LH500AA0
• Replacement Part Number: 6ES7194-2LH50-0AA0
• Series: SIMATIC ET200
• Product Type: Connecting cable (ET-Connection)
• Length: 5.0 m
• Number of Cores: 4
• Number of Positions: 4
• Connector Type: 2 x M8 connectors
• Connector Configuration: Preassembled, free-hanging in-line
• Shielding: Overlapped aluminum-clad foil with tin-plated copper wire braid
• Cable Material: Round, shielded
• Cable Sheath Material: PVC
• Cable Sheath Outer Diameter: 5 mm
• Core Insulation Material: Polyethylene
• Core Insulation Outer Diameter: 1 mm
• Inner Conductor Outer Diameter: 0.5 mm
• Enclosure Rating: IP65/IP67
• Cable Outlet Type: 180 degree
• Housing Material: Metal
• Silicone-Free: Yes
• RoHS Compliant: Yes
• Ambient Temperature Range: -30 to 80 C
• Continuous Bending Radius: 100 mm
• Application: Sensor and actuator connections for SIMATIC ET200
• Country of Origin: Slovakia
• UNSPSC: 32151900
• ECCN: EAR99
• HTSUS: 8544.42.9090
