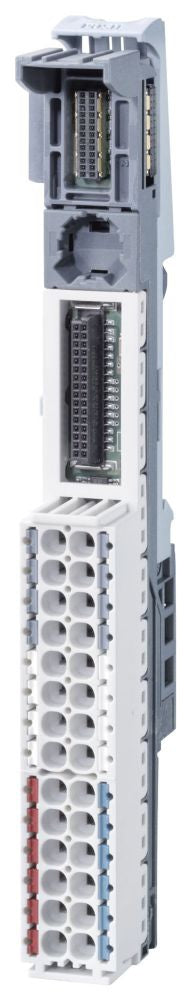

Siemens 6ES71936BP400DA1 Base Unit

Product Description

The SIEMENS 6ES71936BP400DA1 is a base unit designed for use in industrial control and automation systems. It serves as a foundational mounting and connection component within a modular control assembly, providing the physical and electrical interface needed to support connected modules. Weighing 0.13 pounds and measuring 5.827 inches long by 1.654 inches wide by 1.102 inches tall, this compact unit is well suited for panel installations where space is at a premium. Installation is typically performed by licensed industrial electricians or automation technicians working within programmable logic controller (PLC) or distributed control system architectures.

This base unit is intended for modular industrial control system installations, including those found in building automation, process control, and equipment management applications. Its compact form factor makes it a practical choice for both new panel builds and retrofit projects where DIN rail or panel-mount configurations are used. Technicians integrating SIEMENS SIMATIC or compatible modular control platforms will find this unit consistent with standard modular assembly practices.

Key Features

• Compact form factor at 5.827 inches x 1.654 inches x 1.102 inches for space-efficient panel installation
• Lightweight construction at 0.13 pounds, reducing overall panel load
• Modular base unit design supports integration with compatible control modules
• Sold individually, one unit per pack

Compatibility

Designed as an OEM-style base unit for modular industrial control system assemblies. Consult SIEMENS documentation to confirm compatibility with specific module families before installation.

Installation Notes

Installation should be performed by a qualified electrician or automation technician familiar with industrial control panel standards. De-energize the panel and follow applicable lockout/tagout procedures before handling any control components. Refer to the manufacturer wiring diagrams and relevant NEC or local electrical code requirements during installation. Do not force-fit modules onto the base unit, as improper seating can damage electrical contacts.

Technical Specifications

• Length: 5.827 inches
• Width: 1.654 inches
• Height: 1.102 inches
• Weight: 0.13 pounds
• Quantity per Pack: 1
• UPC: 04089293362

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71936BP400DA1
