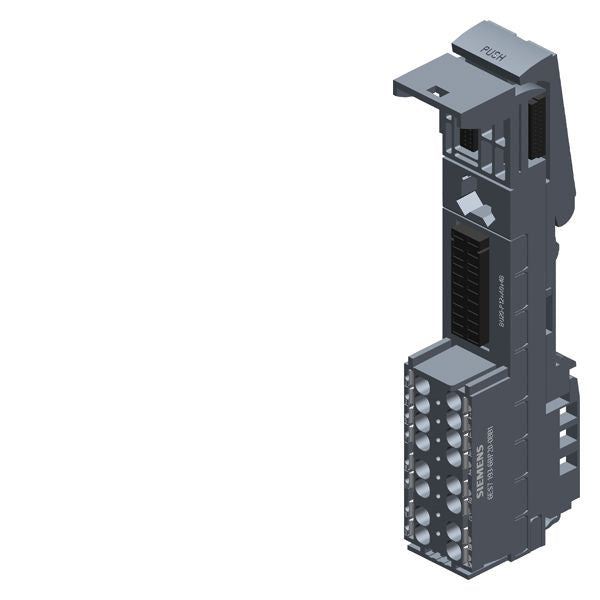

Siemens 6ES71936BP200BB1 Baseunit Type B1, Bu20-P12+A0+4B

Product Description

The Siemens 6ES71936BP200BB1 Baseunit Type B1 is designed for use with the SIMATIC ET 200SP series. This modular I/O system offers flexibility and scalability with IP20 protection. It facilitates data exchange between I/O modules and a higher-level control system via PROFINET or PROFIBUS interface modules.

• Modular configuration supports up to 64 modules.
• Hot swapping allows module replacement without tools during operation.
• Push-in terminals accommodate cross-sections up to 1.5 mm2 with wire end ferrule and up to 2.5 mm2 without.

Product Highlights

The Siemens BaseUnit ensures efficient data handling and easy integration of fail-safe modules in a compact design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71936BP200BB1
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 6ES71936BP200BB1
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: SIMATIC ET 200SP Series
• For Use With: SIMATIC ET 200SP Series
• UPC Code: 887621789893
• Accessory Type: Digital I/O Module
• Suitable For Use With: SIMATIC ET 200SP Digital Input/Output Module
• Type: Type B1
• Standard & Approvals: WEEE (2012/19/EU), REACH Article No. 33
• Number Of Terminals: 12
• Wire Clamp Type: Push-In
• Brand: Siemens
• Alternate Catalog Number: 6ES7193-6BP20-0BB1
• Catalog Number: 6ES71936BP200BB1
• Country of Origin: DE
• EU RoHS Indicator: C
• Height: 1.3400 in
• Length: 4.8000 in
• Width: 1.5700 in
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantWEEE (2012/19/EU)REACH Article No. 33
