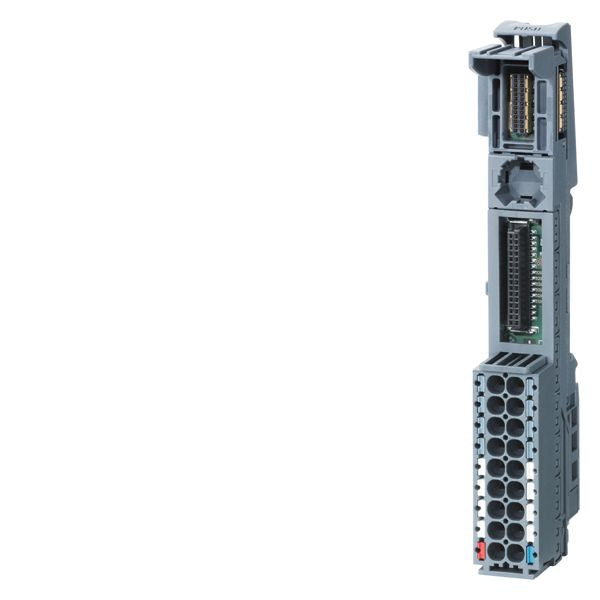

Siemens 6ES71936BP000BA1 Base Unit Simatic ET 200SP

Product Description

The SIEMENS 6ES71936BP000BA1 is a base unit designed for the SIMATIC ET 200SP series. This unit is part of the scalable and open SCADA system, WinCC Runtime Advanced. It is a highly flexible, modular I/O system with IP20 protection, designed for installation in a control cabinet.

• Configuration control: application-based adaptation of the actual configuration via user software (option handling)
• Time-based IO: time stamping of the signals to the cs
• MSI/MSO: Simultaneous access to I/O data from up to 4 PLCs

Product Highlights

The base unit supports modular configuration with up to 64 modules and offers push-in terminals for easy wiring. It facilitates hot swapping and operation with gaps.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71936BP000BA1
• Country of Origin: DE

Technical Specifications

• Category: Industrial Automation and Controls
• Controllers: Controller Accessories
• Part Status: Active
• Manufacturer: Siemens
• Accessory Type: Base Unit
• Series: SIMATIC ET 200SP
• For Use With/Related Products: SIMATIC ET 200SP
• Base Product Number: 6ES71936
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• UNSPSC Code: 39120000
• Input voltage DC (V): 0 - 24
• Type of voltage (input voltage): DC
• Number of slots: 1
• With pluggable modules, digital I/O: No
• With pluggable modules, analogue I/O: Yes
• With pluggable modules, communication modules: No
• With pluggable modules, function and technology modules: No
• With pluggable modules, central modules: No
• With pluggable modules, others: No
• Suitable for rail mounting: Yes
• Wall mounting/direct mounting: No
• Front built-in possible: No
• Rack-assembly possible: No
• Suitable for safety functions: Yes
• Appendant operation agent (Ex ia): No
• Appendant operation agent (Ex ib): No
• Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
• Explosion safety category for dust: None
• Type: Base Unit, Type A1
• Features: RoHS Compliant
• Alternate Catalog Number: 6ES7193-6BP00-0BA1
• Catalog Number: 6ES71936BP000BA1
• Country of Origin: DE
• Number Of Terminals: 18
• Suitable For Use With: SIMATIC ET 200SP Distributed I/O System
• Wire Clamp Type: Push-In
• Input Type: DC Current/Voltage
• Line Power: 10 A at 24 VDC
• Number of Embedded: 18
• UNSPSC: 32151704
