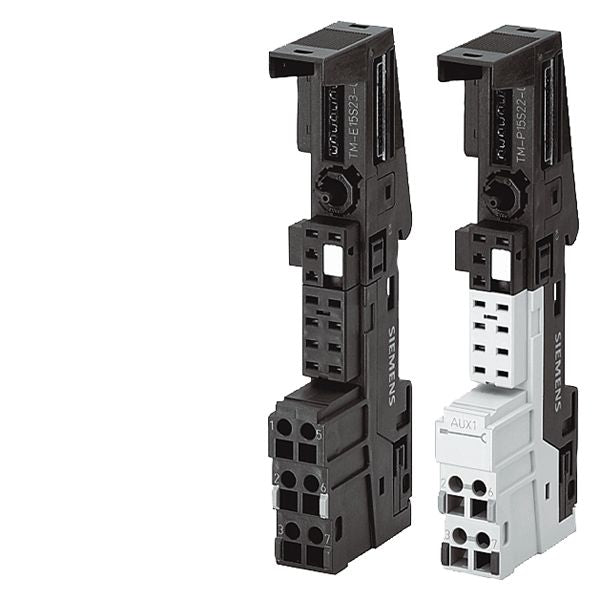

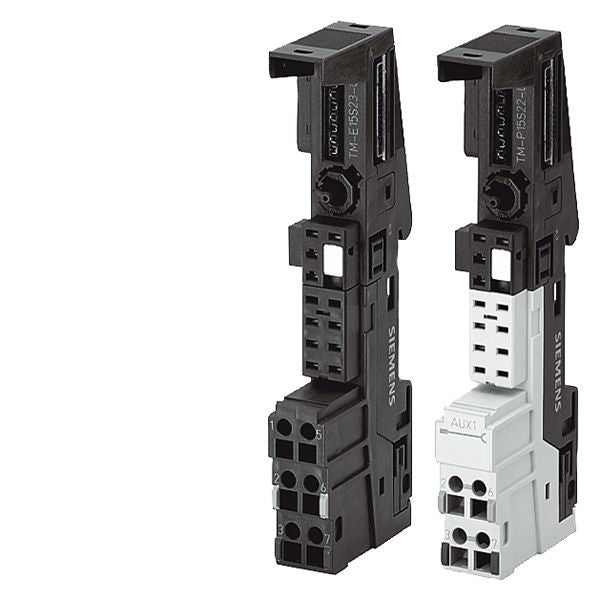

Siemens 6es71934cb300aa0 Terminal Motor Starter Module

Product Description

The SIEMENS 6es71934cb300aa0 is a spring-loaded terminal motor starter module designed for use with the SIMATIC ET 200S distributed I/O system. Each unit is 15 mm wide and provides two sets of 4 terminal connections configured without a terminal lead to AUX1, with AUX1 inline. The module supports electronic modules within the ET 200S platform and uses spring-load termination technology for reliable, tool-reduced wiring. This product is packaged in units of 5 pieces and is intended for installation by licensed electricians or qualified automation technicians working with Siemens SIMATIC DP distributed I/O systems.

This terminal module is suited for industrial control panel and machine automation applications where ET 200S electronic motor starter modules must be mounted and wired onto a rail assembly. The TM-E15C24-01 designation identifies it as a 15 mm wide variant within the ET 200S terminal module family. It is typically installed in cabinet environments alongside other ET 200S electronic modules and requires PROFIBUS DP or compatible backplane communication infrastructure. Packaging includes 5 modules per unit, making it practical for multi-axis or multi-starter panel builds.

Key Features

• Spring-load terminals for fast, reliable connections without a screwdriver
• 2 x 4 terminal connections per module for motor starter wiring
• Configured without terminal lead to AUX1, with AUX1 inline
• 15 mm wide form factor compatible with ET 200S rail mounting
• Sold in a packaging unit of 5 pieces
• TM-E15C24-01 module type for use with ET 200S electronic modules

Compatibility

Designed for use with Siemens SIMATIC ET 200S electronic modules in SIMATIC DP distributed I/O configurations. Compatible with 15 mm wide electronic module positions on the ET 200S mounting rail system.

Installation Notes

Installation should be performed by a licensed electrician or qualified automation technician familiar with Siemens SIMATIC ET 200S systems. De-energize the control cabinet and isolate all power sources before mounting or wiring terminal modules. Spring-load terminals require a standard actuating tool to open the terminal clamp for conductor insertion. Follow applicable NEC and local electrical code requirements for industrial control panel wiring and grounding.

Technical Specifications

• Module Width: 15 mm
• Depth: 43 mm
• Height: 1.97 inches
• Length: 6.97 inches
• Width: 6.34 inches
• Weight: 0.703 pounds
• Terminal Type: Spring-load
• Terminal Connections: 2 x 4
• Packaging Unit: 5 pieces
• Module Type: TM-E15C24-01

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6es71934cb300aa0
