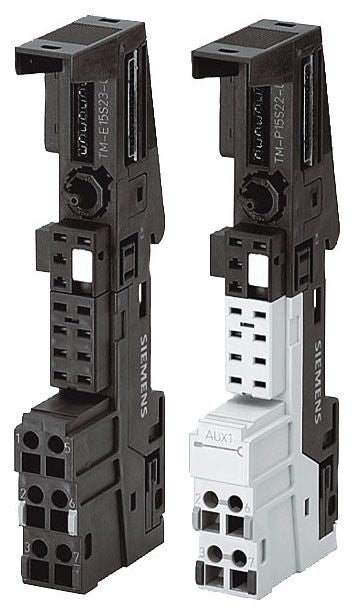

Siemens 6ES71934CA300AA0 Terminal Module

Product Description

The SIEMENS 6ES71934CA300AA0 is a terminal module designed for use with Siemens programmable logic controller (PLC) systems. Terminal modules serve as the wiring interface between field devices and the I/O modules in a control cabinet, allowing technicians to connect, disconnect, or swap I/O modules without disturbing field wiring. This unit measures 6.969 inches long by 6.260 inches wide by 2.008 inches tall and weighs 0.705 pounds, making it a compact component suited to dense panel layouts. Installation and commissioning are typically performed by licensed industrial electricians or automation technicians working on control system builds and upgrades.

Terminal modules of this type are used in industrial automation and process control applications where modular I/O systems are deployed. They are commonly installed inside control panels and distribution cabinets in manufacturing, building automation, and facility management environments. The module accepts an I/O module on one face while providing screw or spring-clamp terminal access for field wiring on the other, streamlining both initial installation and future maintenance tasks.

Key Features

• Compact form factor at 6.969 x 6.260 x 2.008 inches fits dense panel arrangements
• Lightweight construction at 0.705 pounds eases handling during panel assembly
• Designed to allow I/O module removal without disturbing field wiring connections
• OEM Siemens part ensuring direct fit within compatible Siemens PLC system racks

Compatibility

Designed as an OEM-style terminal module for use within Siemens S7 series PLC control system installations. Refer to the Siemens product documentation and system configuration data for verified I/O module compatibility before installation.

Installation Notes

Installation should be performed by a qualified industrial electrician or certified automation technician familiar with Siemens PLC system architecture. De-energize the control panel and follow applicable lockout/tagout procedures before handling any control system components. Consult the relevant system wiring diagrams and Siemens documentation to confirm correct mounting position and terminal assignments prior to connecting field wiring. Reference applicable NEC and local electrical codes for panel wiring and grounding requirements.

Technical Specifications

• Length: 6.969 inches
• Width: 6.260 inches
• Height: 2.008 inches
• Weight: 0.705 pounds
• UPC: 66264321988

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71934CA300AA0
