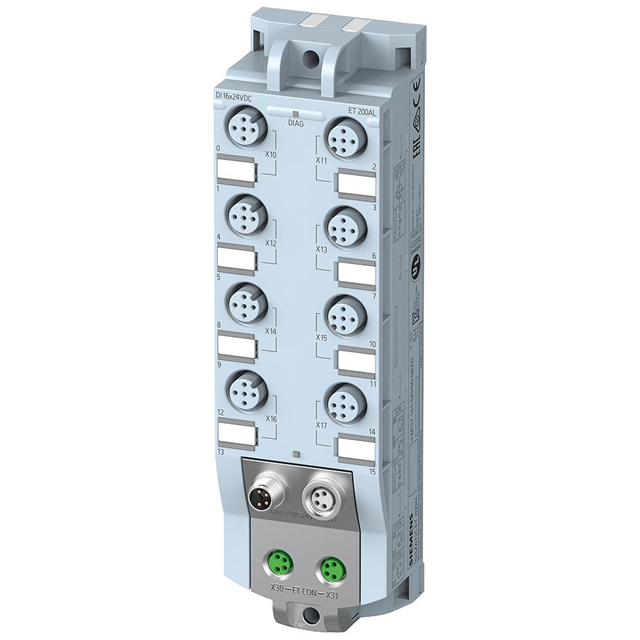

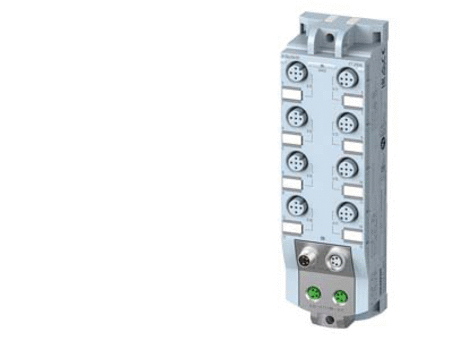

Siemens 6ES71415AH000BA0 Input Module DI 16X 24 V DC 8X M12

Product Description

The SIEMENS 6ES71415AH000BA0 is an input module designed for SIMATIC ET 200AL systems, featuring 16 digital inputs at 24 V DC and 8 M12 connections, with an IP67 degree of protection. It is designed for digital input applications. The module supports diagnostic alarms and safety-related tripping.

• 16 digital inputs at 24 V DC
• 8x M12 connections
• IP67 degree of protection

Product Highlights

This module is ideal for industrial automation systems requiring reliable digital input connectivity and environmental protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71415AH000BA0
• Country of Origin: United States

Technical Specifications

• Part #: 6ES7141-5AH00-0BA0
• Category: Computer
• Weight: 1.00 lbs
• Part Number: 6ES71415AH000BA0
• CUSTOMS TARIFF NUMBER: 85389091
• COUNTRY OF ORIGIN: DE
• EAN: 4047623405894
• Product type designation: DI 16x 24 V DC
• HW functional status: FS06
• Firmware version: V2.0.x
• I&M data: Yes; I&M0 to I&M3
• STEP 7 TIA Portal configurable/integrated from version: STEP 7 V13 SP1 or higher
• STEP 7 configurable/integrated from version: V5.5 SP4 Hotfix 7 or higher
• PROFIBUS from GSD version/GSD revision: GSD as of Revision 5
• PROFINET from GSD version/GSD revision: GSDML V2.3.1
• Power supply according to NEC Class 2 required: No
• Rated value (DC): 24 V
• permissible range, lower limit (DC): 20.4 V
• permissible range, upper limit (DC): 28.8 V
• Reverse polarity protection: Yes; Against destruction; encoder power supply outputs applied with reversed polarity
• Current consumption (rated value): 30 mA; without load from load voltage 1L+
• Maximum value from load voltage 2L+, max.: 4 A
• Number of outputs: 8
• 24 V encoder supply: Yes
• Short-circuit protection: Yes; per module, electronic
• Output current, max.: 1.4 A; Total current of all encoders
• Power loss, typ.: 2.7 W
• Number of digital inputs: 16
• Input characteristic curve in accordance with IEC 61131, type 3: Yes
• Number of simultaneously controllable inputs: 16
• for signal "0": -30 to +5 V
• for signal "1": +11 to +30 V
• for signal "1", typ.: 3.2 mA
• at "0" to "1", min.: 1.2 ms
• at "0" to "1", max.: 4.8 ms
• at "1" to "0", min.: 1.2 ms
• at "1" to "0", max.: 4.8 ms
• unshielded, max.: 30 m
• 2-wire sensor: Yes
• permissible quiescent current (2-wire sensor), max.: 1.5 mA
• Diagnostic alarm: Yes; Parameterizable
• Short-circuit: Yes; Sensor supply to M; module by module
• Channel status display: Yes; green LED
• for module diagnostics: Yes; green/red LED
• between the load voltages: Yes
• between the channels: No
• between the channels and backplane bus: Yes
• between the channels and the power supply of the electronics: No
• Isolation tested with: 707 V DC (type test)
• IP degree of protection: IP65/67
• Suitable for safety-related tripping of standard modules: Yes; from FS01
• Performance level according to ISO 13849-1: PL d
• Category according to ISO 13849-1: Cat. 3
• SIL acc. to IEC 62061: SIL 2
• signed firmware update: Yes
• data integrity: Yes
• min.: -30 °C
• max.: 55 °C
• Ambient air temperature-barometric pressure-altitude: Up to max. 5000 m, at installation height > 2000 m additional restrictions
• Design of electrical connection for the inputs and outputs: M12, 5-pole
• Design of electrical connection for supply voltage: M8, 4-pole
• ET-Connection: M8, 4-pin, shielded
• Width: 45 mm
• Height: 159 mm
• Depth: 40 mm
• Brand Name: Siemens
• Model Number: N/6ES71415AH000BA0
• I/O Number: 16
• Interface type: Digital Input
• Network: Profibus DP
• Protection Level: IP65
