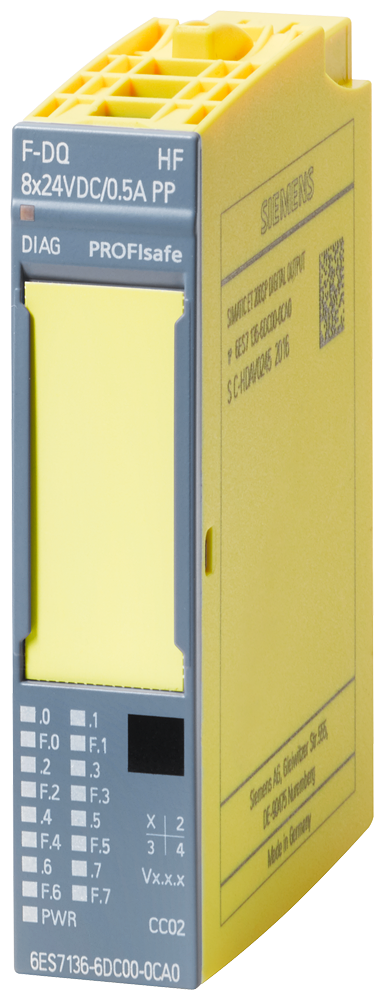

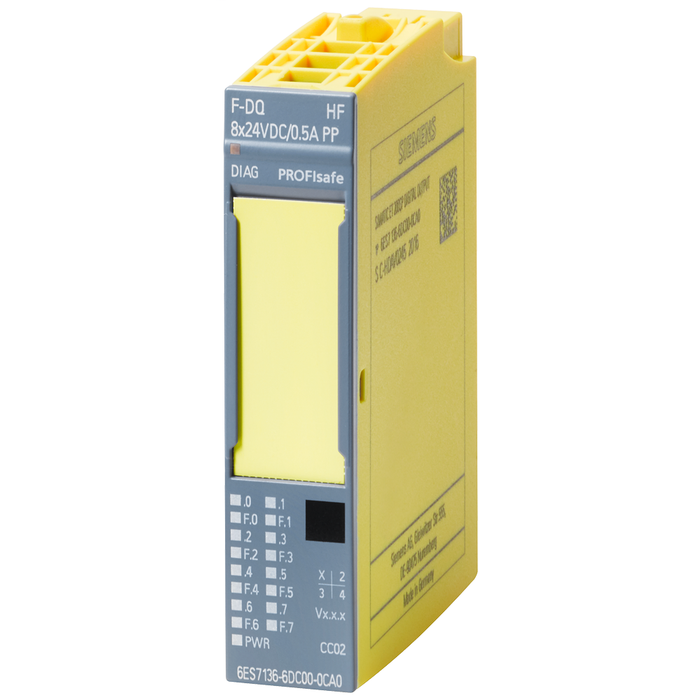

Siemens 6ES71366DC000CA0 ET 200SP F-DQ 8x 24 V DC 0.5 A (15 mm)

Product Description

The Siemens 6ES71366DC000CA0 is an ET 200SP F-DQ electronics module providing eight digital DC outputs at 24 V DC and 0.5 A per channel. The compact 15 mm module is designed for SIMATIC ET 200SP distributed I/O and supports safety applications up to Performance Level e and SIL 3. It offers tool-free push-in wiring, hot swapping of modules/terminal boxes, and connectivity via PROFINET or PROFIBUS for decentralized installation.

• Eight configurable transistor outputs, 24 V DC, 0.5 A per channel (max 3 A per module) with short-circuit protection
• Safety-capable design: up to PL e (ISO 13849) and up to SIL 3 (IEC 61508); PROFIsafe supported
• Compact 15 mm width, backplane/rail-mountable for SIMATIC ET 200SP with tool-free push-in wiring and hot-swap support

Product Highlights

8-channel 24 V DC output module for SIMATIC ET 200SP; 0.5 A per point, 15 mm width, safety-capable to PL e / SIL 3, PROFINET/PROFIBUS connectivity

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71366DC000CA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6ES71366DC000CA0
• Product family: SIMATIC ET 200SP
• Module type: Electronics module, F-DQ (digital outputs)
• Number of outputs: 8
• Output type: Transistor (configurable)
• Output voltage: 24 V DC
• Output current (per channel): 0.5 A
• Maximum output current (per module): 3 A
• Supply voltage range: 19.2 - 28.8 V DC
• Short-circuit protection: Yes (outputs)
• Safety ratings: Up to PL e (ISO 13849); up to SIL 3 (IEC 61508); PROFIsafe supported
• Connectivity / Bus: PROFINET or PROFIBUS (via BusAdapter)
• Wiring technology: Tool-free push-in wiring
• Hot swap support: Supports hot swapping of modules and terminal boxes
• Expandability: System expandable up to 64 I/O modules
• Mounting type: Backplane (requires basic unit); suitable for rail mounting
• Degree of protection: IP20
• Dimensions (W x D x H): 15 mm x 58 mm x 73 mm
• Weight: Approximately 0.13 lb
• Operating temperature: 0 to 60 Deg C (horizontal); 0 to 50 Deg C (vertical)
• Power loss: 3 W
• RoHS compliance: RoHS3 compliant
• Country of origin: Germany
• Termination / Basic unit requirement: Requires basic unit/termination for backplane mounting
• Series: SIMATIC ET 200SP
• Type: Output module
