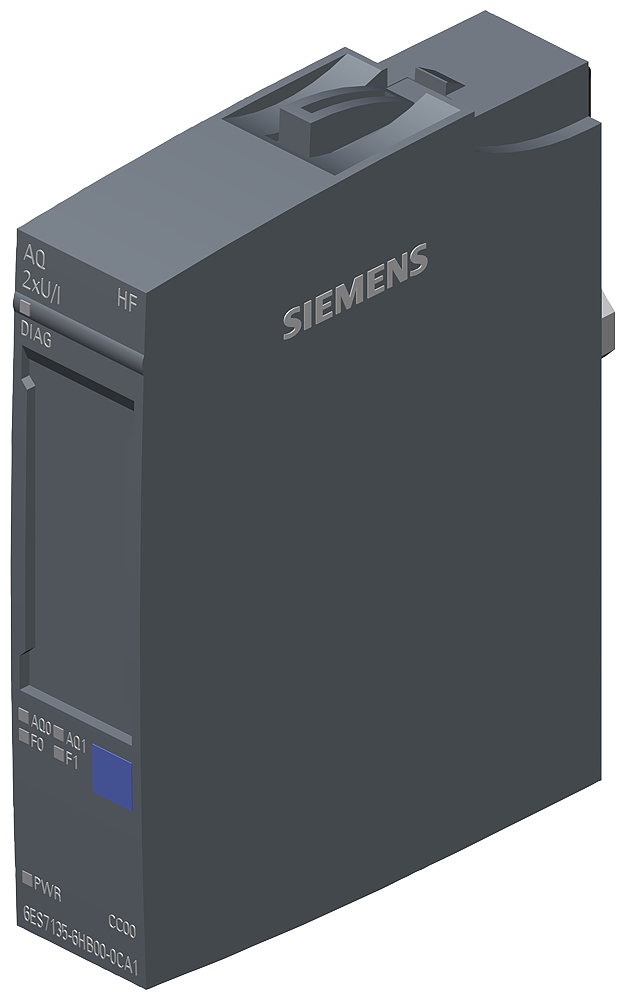

Siemens 6ES71356HB000CA1 ET 200SP AQ 2 X U/I High Feature

Product Description

The SIEMENS 6ES71356HB000CA1 ET 200SP analog output module, AQ 2xU/I High Feature, is designed to fit BU-type A0, A1, color code CC00, and features channel diagnosis with 16bit, +/-0,1%. It supports voltage ranges from 0 to 10V, 1 to 5V, +/- 5V, and +/- 10V, as well as current ranges from 0 to 20mA, +/-20mA, and 4 to 20mA.

• Can be Plugged into Type A0 or A1 Baseunits (BU) with Automatic Coding
• LED Display for Error, Operation, Supply Voltage and Status
• Clear Labeling on Front of Module

Product Highlights

The module has a 16-bit resolution and an operating temperature range of 0 to 60 degrees Celsius. It has a power loss of 0.9 Watt and overall dimensions of 15mm width x 58mm depth x 73mm height.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71356HB000CA1
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Product UPC: 88762178988
• Country of Origin: Germany
• Resolution: 16-Bit
• Current Range: 0 to 20 Milliamp, +/-20 Milliamp, 4 to 20 Milliamp
• Model: 6ES71356HB000CA1
• Condition: New
• Accessory Type: Digital I/O Module
• For Use With: SIMATIC ET 200SP Series
• Manufacturer Part Number: 6ES71356HB000CA1
• Series: ET 200SP Series
• UPC Code: 887621789886
• UNSPSC: 32151705
