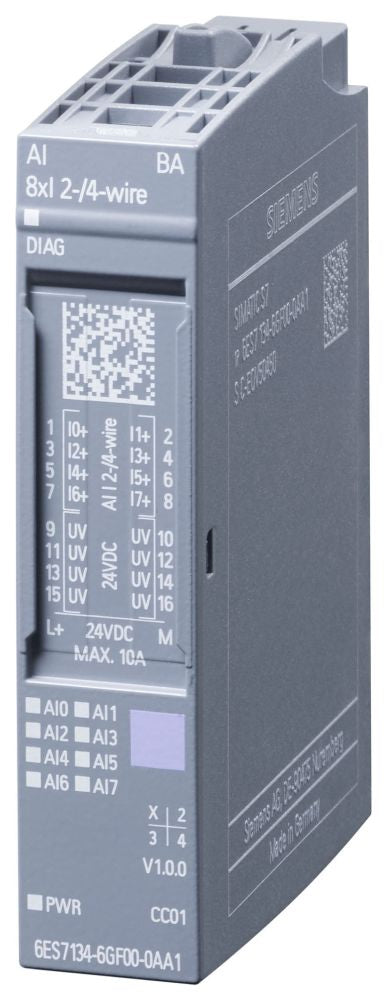

Siemens 6ES71346GF000AA1 Et 200SP Analog Input Module

Product Description

The SIEMENS 6ES71346GF000AA1 is an analog input module designed for the ET 200SP distributed I/O system. It connects field-level analog signals to a Siemens PLC or controller over the ET 200SP backplane, allowing process values such as current or voltage signals to be read and acted on by the control system. The module mounts directly onto a BaseUnit within an ET 200SP station and is handled during installation by qualified automation technicians or industrial electricians. Its compact form factor makes it well suited for panel and cabinet builds where DIN rail space is limited.

The 6ES71346GF000AA1 is intended for use in industrial automation environments wherever an ET 200SP distributed I/O station is deployed. Typical applications include process control panels, machine automation cabinets, and factory floor I/O nodes that require analog signal acquisition. It operates as part of a modular ET 200SP assembly alongside power modules, digital I/O modules, and communication interfaces on a shared DIN rail station.

Key Features

• Designed for the Siemens ET 200SP distributed I/O platform
• Acquires analog input signals for integration with Siemens PLC control systems
• Compact module footprint measuring 3.071 inches long by 2.756 inches wide by 0.984 inches high
• Lightweight construction at 0.082 pounds, minimizing load on DIN rail assemblies
• Sold individually as a single module per pack

Compatibility

Designed as an OEM-style replacement or expansion module for Siemens ET 200SP distributed I/O stations requiring analog input capability.

Installation Notes

Installation should be performed by a qualified industrial electrician or automation technician familiar with Siemens ET 200SP system architecture. De-energize the ET 200SP station and disconnect all field wiring before seating or removing any module. The module snaps onto a compatible ET 200SP BaseUnit on the DIN rail assembly. Follow applicable local electrical codes and the Siemens ET 200SP system manual for proper configuration and commissioning procedures.

Technical Specifications

• Length: 3.071 inches
• Width: 2.756 inches
• Height: 0.984 inches
• Weight: 0.082 pounds
• Quantity per Pack: 1
• UPC: 80476620938

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71346GF000AA1
