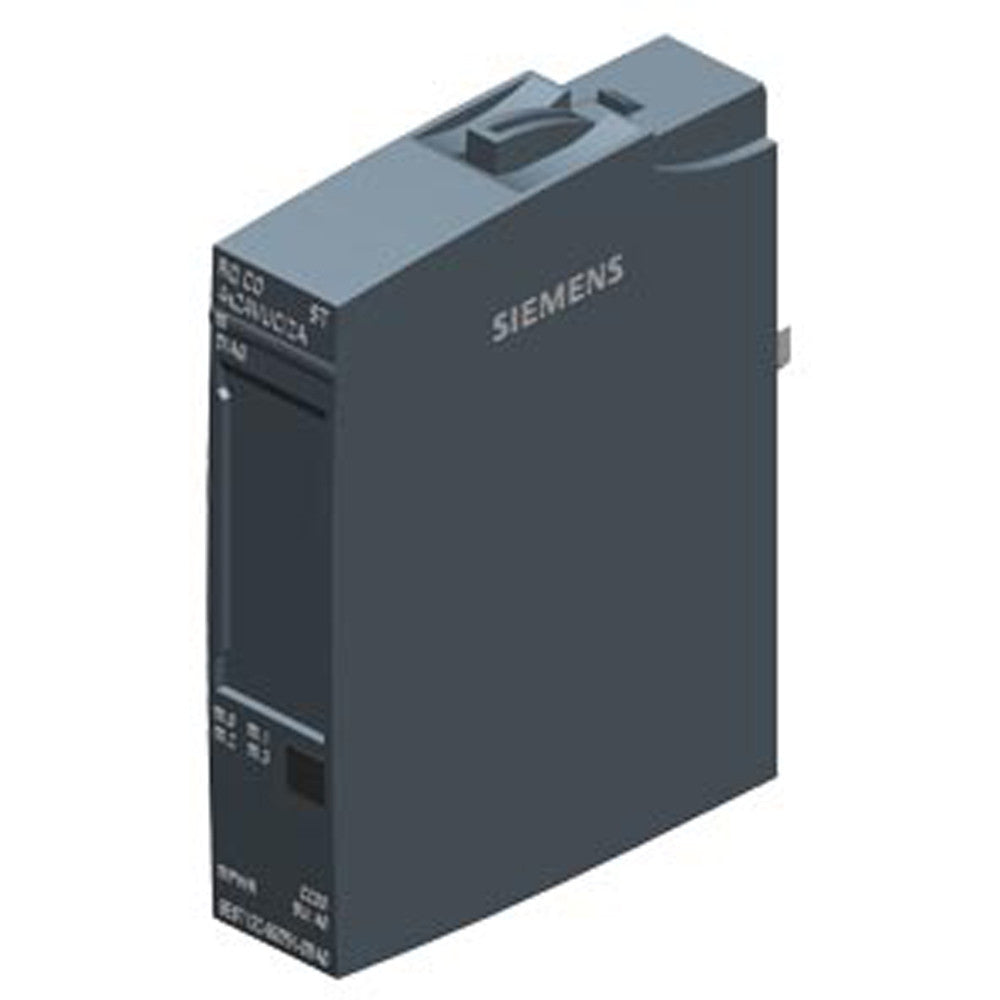

Siemens 6ES71326GD510BA0 Simatic ET 200SP signal relay module 24 V DC/2 A (1 pc) 6ES7132-6GD51-0BA0

Product Description

Siemens 6ES71326GD510BA0 is a SIMATIC ET 200SP signal relay module that provides four changeover (RQ CO) isolated relay contacts rated for 24 V DC coil and 2 A contact current. The module includes substitute value output and module diagnostics for supply voltage, fits BU-type A0, and is designed for distributed I/O in control cabinet installations with IP20 protection and push-in terminals for wiring.

• Four changeover (SPDT) isolated contacts, 24 V DC coil/supply, 2 A contact rating
• Substitute value output and module diagnostics for supply voltage
• Designed for ET 200SP distributed I/O; IP20, push-in terminals, fits BU-type A0

Product Highlights

Four isolated 24 V DC relay outputs with 2 A per channel for ET 200SP distributed I/O

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71326GD510BA0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 6ES71326GD510BA0
• Part Aliases: 6ES7132-6GD51-0BA0
• Product Type: SIMATIC ET 200SP signal relay module
• Series: ET 200SP
• Contact Configuration: 4 changeover contacts (RQ CO / 4x CO)
• Contact Rating: 2 A at 24 V DC
• Supply Voltage: 24 V DC
• Input Voltage: 24 V DC
• Input Current: 50 mA
• Output Current: 2 A per channel
• Isolated Contacts: Yes
• Substitute Value Output: Yes
• Module Diagnostics: Supply voltage
• Fits To: BU-type A0
• Connection Type: Push-in terminals
• Degree of Protection: IP20 (designed for control cabinet installation)
• Mounting Location: Control cabinet
• Operating Temperature: -30 °C to +60 °C
• Dimensions: 3.03 x 2.68 x 1.06 in
• Weight: 0.084 lb (approx. 0.038 kg)
• Packing Unit: 1 piece
• Colour Code: CC00
• Country of Origin: Germany
• UPC: 804766529085
• UNSPSC Code: 39120000
• ECCN: EAR99
