Siemens 6es71326bh010ba0 Plc Digital Output Module 16 Outputs

Product Description

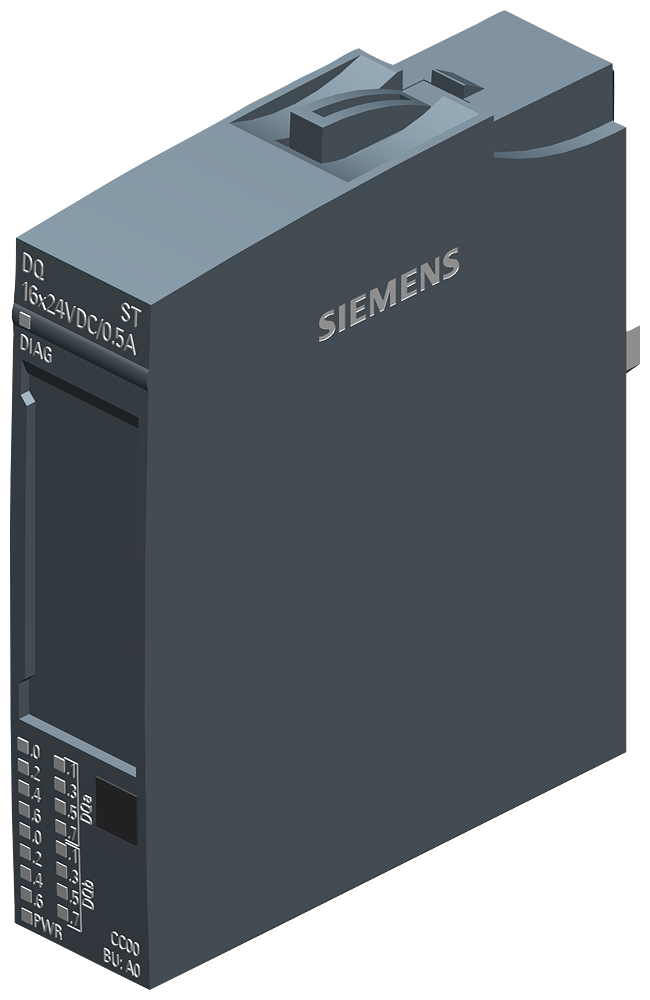

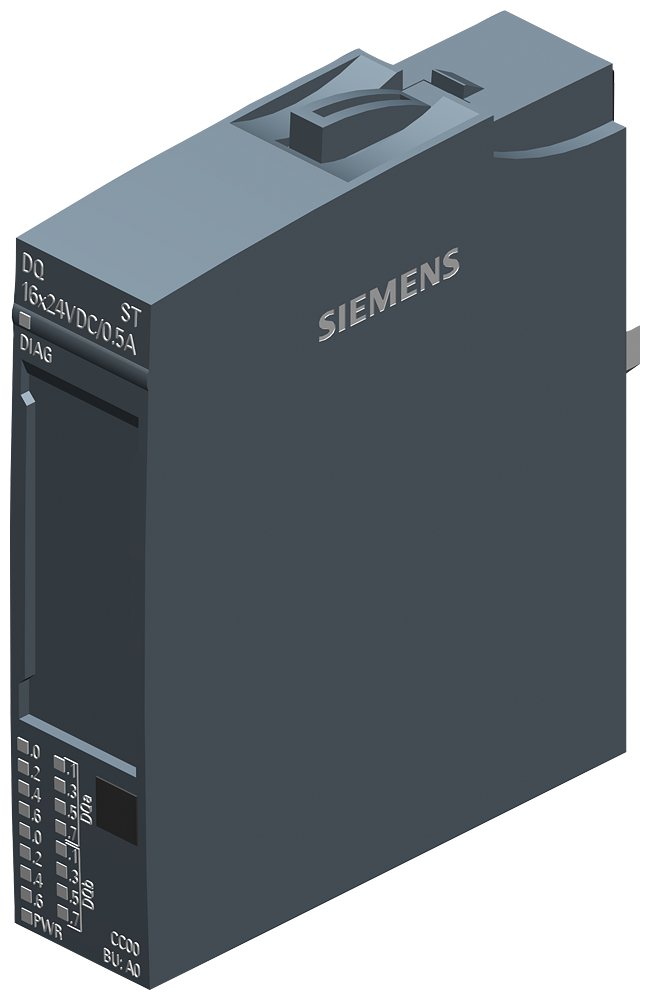

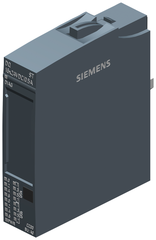

The SIEMENS 6es71326bh010ba0 is a digital output module designed for the SIMATIC ET 200SP distributed I/O system. It provides 16 PNP (P-switching, source output) digital outputs rated at 24 volts DC and 0.5 amps per channel. The module connects to BU-type A0 base units and is identified by Color Code CC00. It is used in industrial automation applications and is typically installed and maintained by licensed industrial electricians or automation technicians. Built-in diagnostics support reliable operation in demanding control environments.

This module is part of the SIMATIC ET 200SP series, a compact distributed I/O platform used in industrial process control and machine automation. It fits into panel-mount or rack-mount ET 200SP configurations and is suited for both discrete manufacturing and process industry applications. The module ships as a single unit and is compatible with ET 200SP base unit type A0. Substitute value output functionality allows the system to maintain defined output states during communication faults, supporting safer control behavior.

Key Features

• 16 digital outputs at 24 volts DC, 0.5 amps per channel, PNP P-switching (source output)
• Fits BU-type A0 base units in the ET 200SP system
• Color Code CC00 for fast visual identification during installation
• Substitute value output maintains defined states during communication loss
• Module-level diagnostics detect short-circuit to L+ and ground, wire break, and supply voltage faults

Compatibility

Designed for use with SIMATIC ET 200SP distributed I/O systems. Compatible with BU-type A0 base units. Packing unit is one piece.

Installation Notes

Installation should be performed by a qualified automation technician or licensed industrial electrician familiar with PLC distributed I/O systems. Disconnect and lock out all control cabinet power before inserting or removing the module. Verify that the base unit type is BU-type A0 before seating the module, as incorrect base unit pairing will prevent proper operation. Follow applicable NEC and local electrical code requirements for low-voltage DC control wiring.

Technical Specifications

• Output Type: Digital, PNP (P-switching, source output)
• Number of Outputs: 16
• Output Voltage: 24 volts DC
• Output Current per Channel: 0.5 amps
• Compatible Base Unit: BU-type A0
• Color Code: CC00
• Substitute Value Output: Yes
• Diagnostics: Short-circuit to L+ and ground, wire break, supply voltage
• Packing Unit: 1 piece
• Series: SIMATIC ET 200SP

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6es71326bh010ba0
