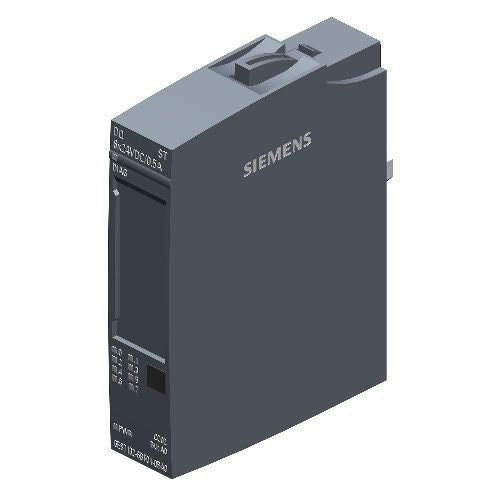

Siemens 6ES71326BF010BA0 PLC Expansion Module, 8 Digital Outputs PNP, 24 VDC, ET 200SP Series

Product Description

The SIEMENS 6ES71326BF010BA0 is a PLC expansion module, part of the SIMATIC ET 200SP series, featuring 8 digital outputs. This module is designed for use with BU-type A0 base units and offers module diagnostics for short circuits and wire breaks. It provides a reliable solution for controlling external devices in industrial automation systems.

• 8 Digital Outputs
• Supply Voltage: 24 VDC
• Fits BU-Type A0

Product Highlights

The Siemens 6ES71326BF010BA0 digital output module provides efficient digital output functionality for a wide range of automation applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71326BF010BA0
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 6ES71326BF010BA0
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Number of Outputs: 8
• Number of IO Ports: 8
• Series: ET 200SP Series
• For Use With: SIMATIC ET 200SP
• UPC Code: 804766529023
• Supply Voltage: 24 VDC
• Output Type: Digital
• Primary Type: Output
• Voltage Rating: 24 VDC
• Standard & Approvals: WEEE (2012/19/EU)
• Amperage Rating: 0.5 A
• EANUCC13: 4047623408703
• Application: For BU type A0, color code CC02, substitute value output, module diagnostics for short circuit to L+ and ground, wire break, supply voltage and ET 200SP input/output system
• Temperature Rating: -30 to 50 deg C Vertical, -30 to 60 deg C Horizontal
• Brand: Siemens
• Model: 6ES7 132-6BF01-0BA0
• Controller Platform: Automate
• Type: Module
• Part Number: 6ES7132-6BF01-0BA0
• Range: SIMATIC
• Category: Digital output
• Designation: DQ 8x24VDC/0.5A ST
• Functional status: From FS02
• Base Unit: BU type A0
• Data: I&M0 to I&M3
• Color code: CC02
• Firmware: V0.0
• Range Supply voltage: 19.2 V 202628.8 V
• Max current consumption: 35 mA; without load
• Rated output: 24 V DC
• Power loss: 1 W
• Outputs: 8 Digital
• Switching frequency (resistive load): 100 Hz
• Shielded cable length: 1,000 m
• Width: 15 mm
• Height: 73 mm
• Depth: 58 mm
