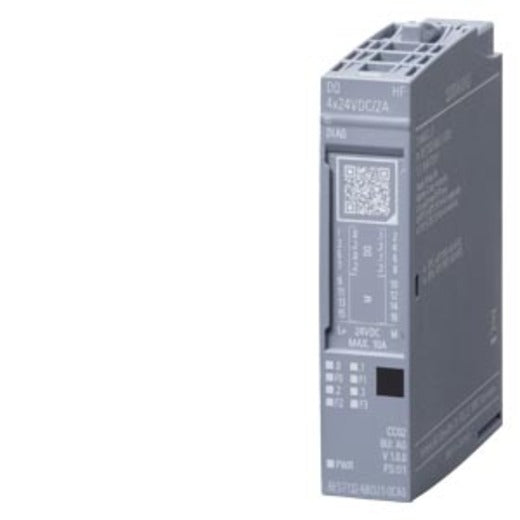

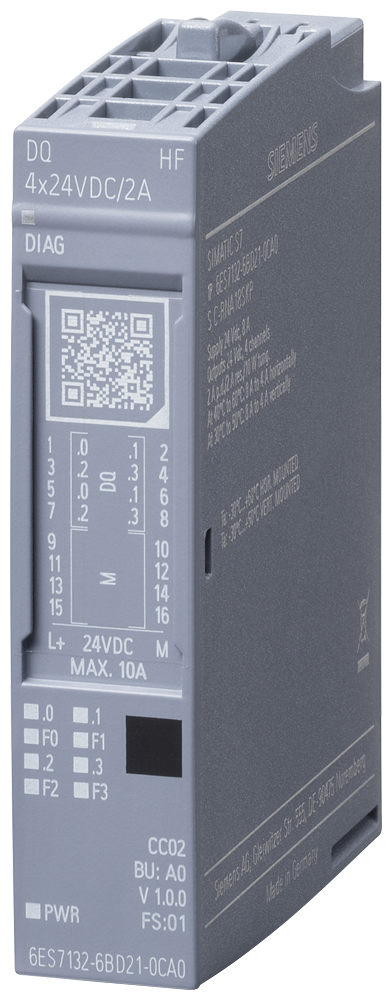

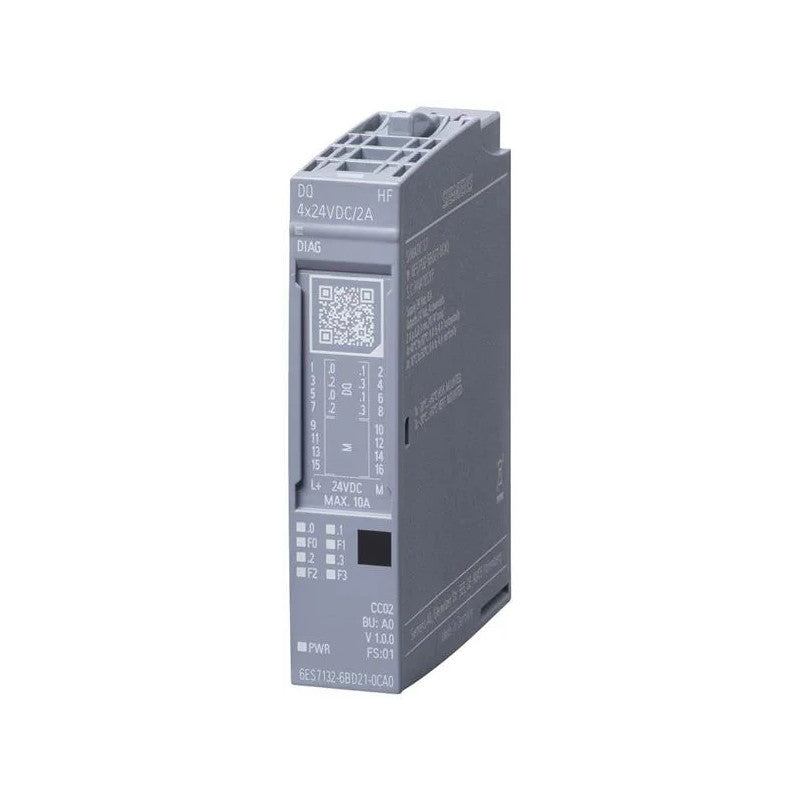

Siemens 6ES71326BD210CA0 I/O Module ET 200SP DQ 4x24VDC/2A HF

Product Description

The Siemens 6ES71326BD210CA0 I/O Module ET 200SP is an advanced solution for regulating and controlling electronic systems. With a capacity of 4 channels, each channel having a voltage of 24VDC and a current of 2A. It is designed to meet the rigorous requirements of industrial applications and is ideal for automation specialists.

• 4 channels
• 24VDC
• 2A

Product Highlights

The Siemens ET 200SP I/O module offers excellent performance for demanding industrial applications. It provides robust and reliable solutions for new projects or improving existing systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71326BD210CA0
• Country of Origin: DE

Technical Specifications

• Product Type: I/O Module ET 200SP
• MPN: 6ES71326BD210CA0
• Manufacturer: Siemens
• Number of Channels: 4
• Operating Voltage: 24VDC
• Maximum Current per Channel: 2A
• Output Type: DQ (Digital Output)
• Supply Voltage DC: 19,2..28,8 V
• Voltage Type of the Supply Voltage: DC
• Digital Outputs Configurable: Yes
• Output Current: 2 A
• Permissible Voltage at the Output: 19,2..28,8 V
• Type of Output Voltage: DC
• Short-Circuit Protection, Outputs Available: Yes
• With Optical Interface: No
• Supports Protocol for TCP/IP: No
• Supports Protocol for PROFIBUS: No
• Supports Protocol for CAN: No
• Supports Protocol for INTERBUS: No
• Supports Protocol for ASI: No
• Supports Protocol for KNX: No
• Supports Protocol for MODBUS: No
• Supports Protocol for Data-Highway: No
• Supports Protocol for DeviceNet: No
• Supports Protocol for SUCONET: No
• Supports Protocol for LON: No
• Supports Protocol for PROFINET IO: No
• Supports Protocol for PROFINET CBA: No
• Supports Protocol for SERCOS: No
• Supports Protocol for Foundation Fieldbus: No
• Supports Protocol for EtherNet/IP: No
• Supports Protocol for AS-Interface Safety at Work: No
• Supports Protocol for DeviceNet Safety: No
• Supports Protocol for INTERBUS-Safety: No
• Supports Protocol for PROFIsafe: No
• Supports Protocol for SafetyBUS p: No
• Supports Protocol for Other Bus Systems: No
• Bluetooth Radio Standard: No
• WLAN 802.11 Radio Standard: No
• GPRS Radio Standard: No
• GSM Radio Standard: No
• 3G (UMTS) Mobile Radio Standard: No
• IO-Link Master: No
• System Component: Yes
• Protection Type (IP): IP20
• Fieldbus Connection via Separate Bus Coupler Possible: Yes
• Suitable for DIN Rail Mounting: Yes
• Wall/Direct Mounting Possible: No
• Front Installation Possible: No
• Rack Mounting Possible: No
• Suitable for Safety Functions: No
• Related Operating Material (Ex ia): No
• Related Operating Material (Ex ib): No
• Width: 15 mm
• Height: 73 mm
• Depth: 58 mm
