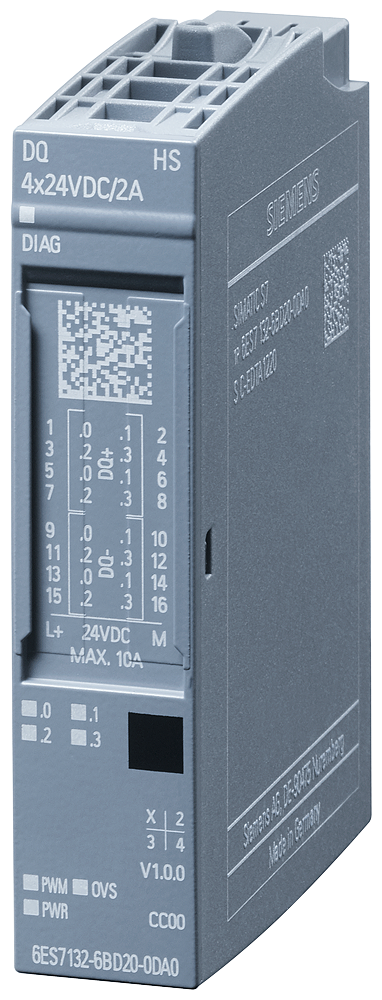

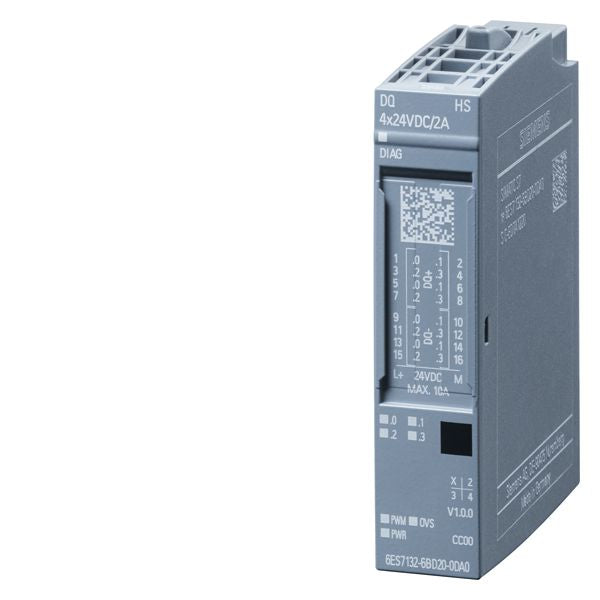

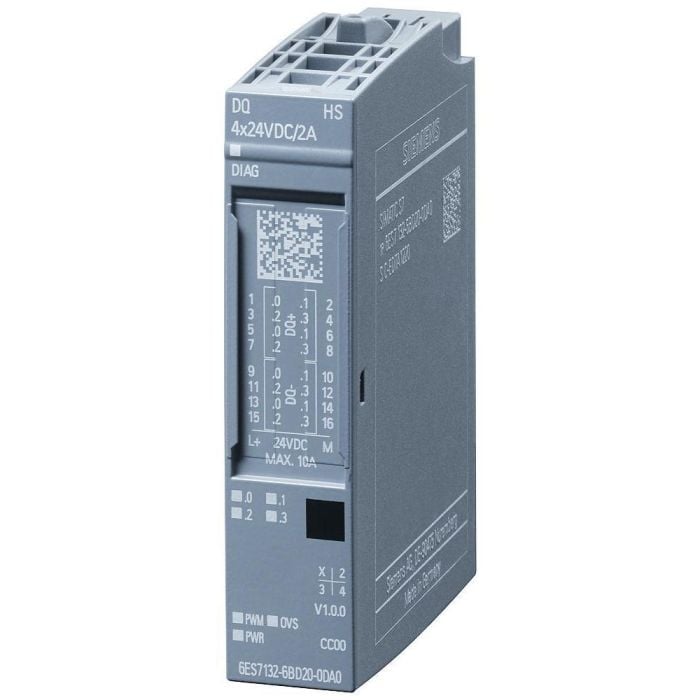

Siemens 6ES71326BD200DA0 et 200sp, dq 4

Product Description

The Siemens 6ES71326BD200DA0 ET 200SP digital output module, DQ 4x24VDC/2a high speed, fits to bu-type a0. It features three alternative modes: DQ, oversampling, and PWM module diagnosis. This SIMATIC ET 200SP series is a flexible, modular I/O system with IP20 protection.

• Digital output module
• DQ 4x24VDC/2a high speed
• Fits to bu-type a0

Product Highlights

The Siemens 6ES71326BD200DA0 is a digital output module with high speed and multiple modes. It is designed for flexible and modular I/O systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71326BD200DA0
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Depth: 58 mm
• Width: 2.6800 in
• Height: 73 mm
• Length: 3.07 Inch
• Number of Inputs: 0
• Accessory Type: Label
• For Use With: SIMATIC ET 200SP Series
• Manufacturer Part Number: 6ES71326BD200DA0
• Numeric ID: 4075991
• Series: SIMATIC ET 200SP
• UPC Code: 804766209352
• Power Rating: 2.5 W
• Step Response: 1 us Off to On/On to Off
• Temperature Rating: -30 to 60 deg C Horizontal, -30 to 50 deg C Vertical
• Voltage Rating: 24 VDC
• Minimum Order Qty: 1
• Order Interval: 1
• Catalog ID: SIE6ES71326BD200DA0
• Dimensions: 15 mm W x 58 mm D x 73 mm H
• Number of Outputs: 4
• EANUCC13: 4047623405641
• Amperage Rating: 2 A
• Alternate Catalog Number: 6ES7132-6BD20-0DA0
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 6ES71326BD200DA0
• Country of Origin: DE
• Currency: USD
• EU RoHS Indicator: C
• Gross Volume Per Pack: 7.73
• Gross Volume UOM: in
• Gross Weight Per Pack: 0.0900 lb
• Gross Weight per Pack Metric: 0.04
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 8538908180
• Height [Metric]: 2.3876 cm
• Length [Metric]: 7.7978 cm
• Returnable: Y
• Standards: RoHS CompliantREACH Compliant
• Type: High Speed
• UNSPSC: 32151705
• UPC 11: 80476620935
• UPC 12: 804766209352
• Width [Metric]: 6.8072 cm
• Stock Status: NONSTOCK
• Manufacturer: Siemens
• Voltage - Supply: 19.2 ~ 28.8VDC
• Mounting Type: DIN Rail
• Packaging: Box
• Termination Style: Screw Terminal
• Part Status: Active
• Operating Temperature: -30°C ~ 60°C
• Ingress Protection: IP20
• For Use With/Related Products: SIMATIC ET 200SP
• Base Product Number: 6ES71326
