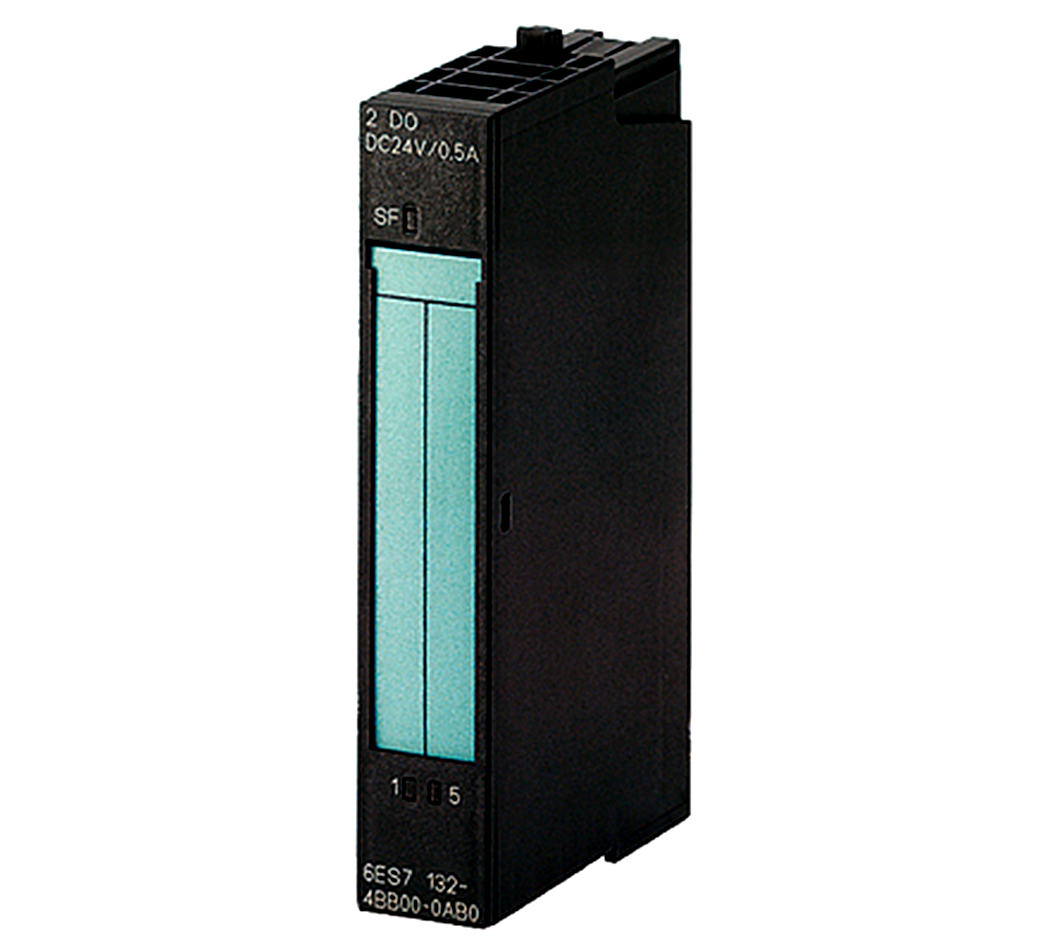

Siemens 6ES71324BB010AB0 Digital Output Module 24VDC

Product Description

The SIEMENS 6ES71324BB010AB0 Digital Output Module is a DC type module designed for SIMATIC ET200S Distributed I/O systems. It features 2 outputs with a maximum output current of 0.5 Amp per output and 1 Amp per module. It operates within a temperature range of -25 to 60 degrees Celsius.

• Digital Output Module (DC)
• 2 outputs at 24 Volt DC
• Compatible with SIMATIC ET200S Distributed I/O Module

Product Highlights

Digital output module with 2 outputs, suitable for SIMATIC ET200S systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71324BB010AB0

Technical Specifications

• UNSPSC: 32151705
• Application: SIMATIC ET200S Distributed I/O Module
• Output Type: 2
• Operating Temperature: -25 to 60 Deg C
• Maximum Output Current per Output: 0.5 Amp
• Type: DC
• Output Voltage: 24 Volt DC
• Backplane Output Current: 10 Milliamp at 3.3 Volt DC
• Maximum Output Current per Module: 1 Amp
• Manufacturer Name: Siemens
• Manufacturer Part #: 6ES71324BB010AB0
