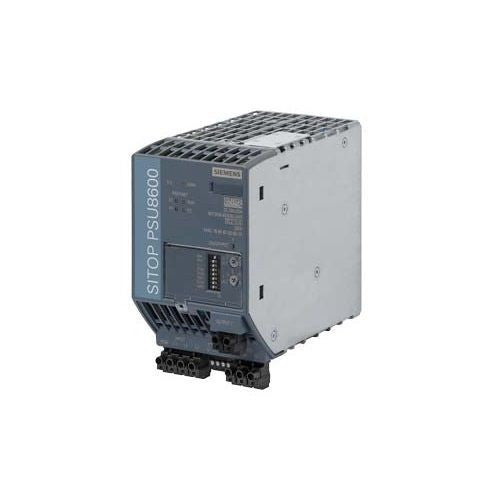

Siemens 6EP34368SB002AY0 SITOP PSU8600 Stabilized Power Supply 480 Watt

Product Description

The Siemens 6EP34368SB002AY0 SITOP PSU8600 is a stabilized power supply with a controlled and isolated DC output. It supports an input voltage range of 320 to 575 Volt AC and a nominal input voltage of 400 to 500 Volt AC. This power supply delivers an output of 24 Volt DC at 20 Amp, providing 480 Watt of power. It is designed for DIN rail mounting.

• 3-Phase basic devices with individually parameterizable and selectively monitored outputs
• Features extra power with 1.5 times the rated current for brief, operational overload
• Easy configuration in the TIA Portal with an integrated web server for remote diagnostics

Product Highlights

The Siemens SITOP PSU8600 ensures reliable power supply with comprehensive diagnostic information and easy integration into automation systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6EP34368SB002AY0

Technical Specifications

• Approval: UL (Canada and US), CSA C22.2, CE, CB, DNV GL, ABS
• Connection Type: Plug-In with Screwed Connection
• Input Frequency: 50/60 Hertz
• Mounting: 35 Millimeter x 15 Millimeter DIN Rail
• Number of Phases: 3
• Enclosure: IP20, Class I Div 2 Group A B C D
• Operating Temperature: -25 to 60 Deg C
• Efficiency: 93 Percent
• Output Power: 480 Watt
• Input Current: 1.4 Amp at 400 Volt AC, 1.1 Amp at 500 Volt AC
• Output Current: 20 Amp
• Input Voltage Range: 320 to 575 Volt AC
• Nominal Input Voltage: 400 to 500 Volt AC
• Brand: SIEMENS
• Manufacturer Part Number: 6EP34368SB002AY0
• Number of Outputs: 1
• Output Voltage: 24 VDC
• Primary Type: AC-DC
• Series: PSU8600 Series
• Powering Capacity: 480 W
• Specifications: 50/60 Hz, 93% Efficiency, IP20, Screw Terminal
• Temperature Rating: -25 to 60 deg C
• Type: Stabilized
• Standard & Approvals: EN 60950-1, EN 50178, CE Certified, cULus File No. E197259, UL 508, CSA C22.2 No. 107.1, cCSAus Certified, CSA C22.2 No. 60950-1, UL 60950-1, IECEx Ex nA nC IIC T4 Gc, ATEX (EX) II 3G Ex nA nC IIC T4 Gc, cCSAus Class I, Division 2, Group A/B/C/D/T4, CSA C22.2 No. 213, ANSI/ISA-12.12.01, CB Approved, ABS Certified, DNV-GL Approved, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2, WEEE (2012/19/EU)
