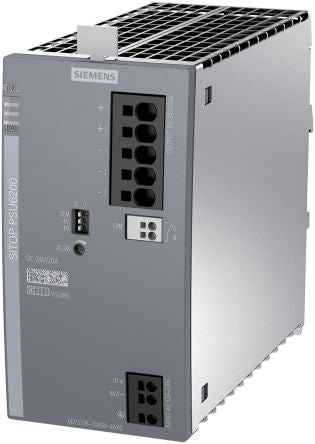

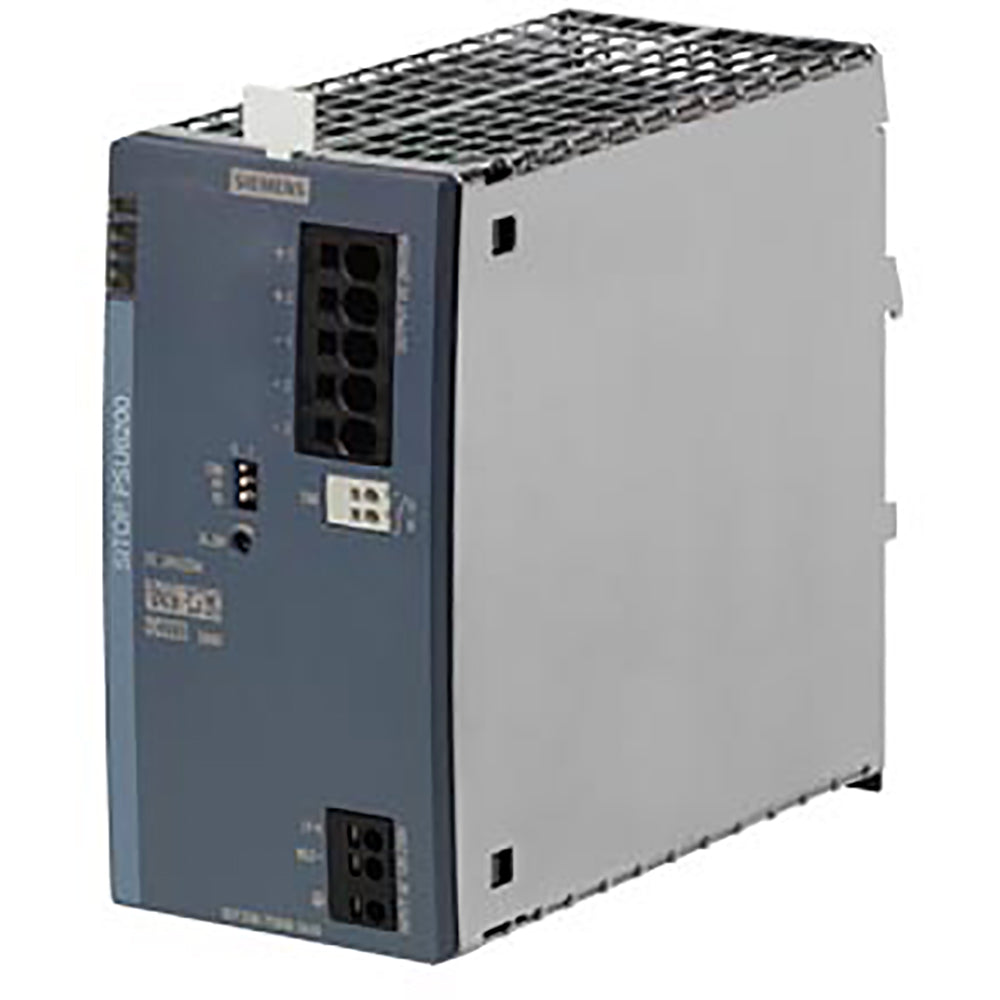

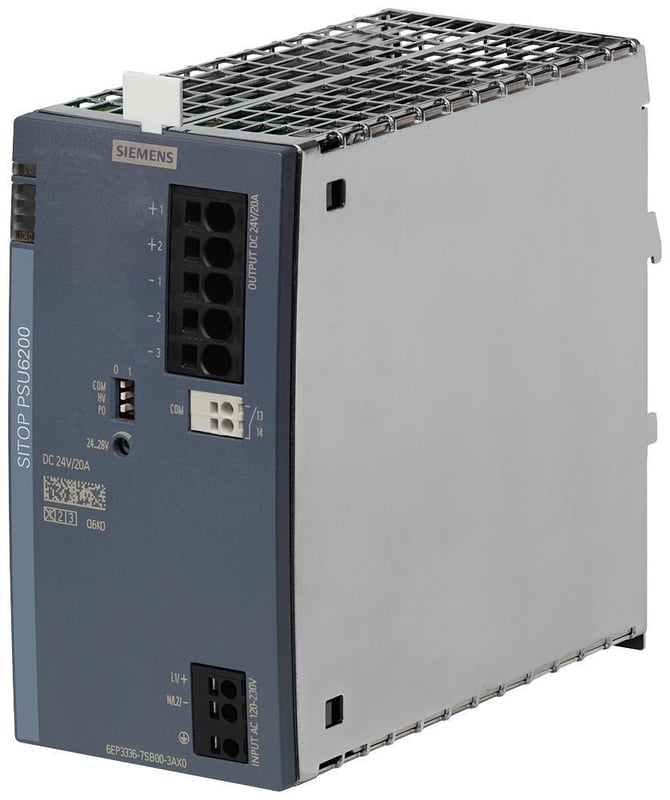

Siemens 6EP3336-7SB00-3AX0 Power Supply AC-DC 24V 20A (DIN Rail) 6EP33367SB003AX0

Product Description

Siemens 6EP3336-7SB00-3AX0 is a SITOP PSU6200 series AC-DC power supply that provides a single regulated 24 VDC output at 20 A (480 W). It accepts a wide input range (85 VAC to 264 VAC), mounts on DIN rail, and features an isolated, adjustable output with protection against short circuit and no-load conditions. The unit includes LED status indicators and an integrated signaling contact for output monitoring.

• Single output: 24 VDC at 20 A (480 W) with adjustable output
• Wide input range: 85 VAC to 264 VAC; single-phase DIN-rail mounting
• Diagnostics and protection: LED status indicators, signaling contact, no-load proof and short-circuit proof

Product Highlights

SITOP PSU6200 DIN-rail industrial power supply, 24 VDC/20 A, 85-264 VAC input, adjustable output, diagnostic signaling

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6EP33367SB003AX0

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6EP3336-7SB00-3AX0
• Alternate Part Number: 6EP33367SB003AX0
• Series: SITOP PSU6200
• Type: AC-DC industrial power supply
• Number of Outputs: 1
• Output Voltage: 24 VDC
• Output Current: 20 A
• Output Power: 480 W
• Input Voltage: 85 VAC to 264 VAC
• Frequency: 50/60 Hz
• Power Phase: Single-phase
• Input Current (AC): 4.4 to 2.3 A (depending on input voltage)
• Mounting Type: DIN Rail
• Electrical Connection: Push-in terminals
• Cooling Type: Natural (gravity)
• Adjustable Output: Yes (potentiometer-adjustable)
• Protections: No-load proof; short-circuit proof; overload and overvoltage protection
• Indicators: LED status indicators
• Signaling Contact: Integrated signaling contact for output status
• Diagnostics Interface: Digital input for PLC integration (diagnostics)
• Continuous Overload Capability: 120% up to 45 C ambient
• Brief Overload Capability: 150% for 5 s/min
• Ambient Temperature Range: -25 to 70 C
• Dimensions (HxWxD): 135 mm x 70 mm x 155 mm (5.31 x 2.76 x 6.10 in)
• Weight: 3.31 lbs
• Enclosure Configuration: Enclosed, industrial
• Compliance: RoHS compliant; RoHS phthalates compliant; No SVHC reported (08-Jul-2021)
• US ECCN: EAR99
